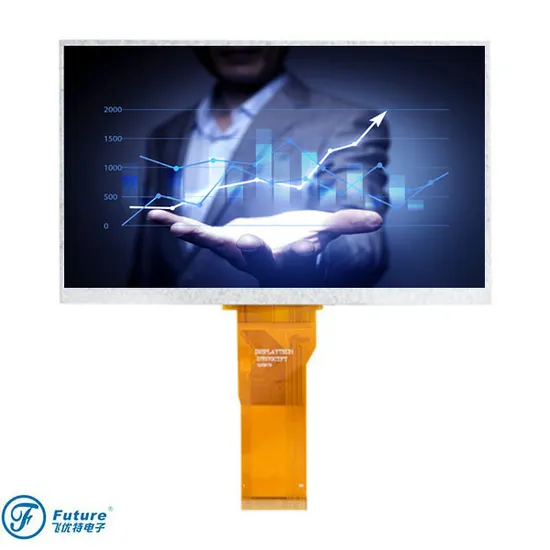

China Manufacturer 7.0 Inch 1024*600 RGB TFT Display Customized Touch Screen
Basic Info.
Model NO.
FUT0700SV40B-LCM-A0
Touch Screen Type
Can Be Customized
Type
Color
Response Time
30ms
Viewing Angle
IPS
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
RGB
LCD Drive Mode
TFT/IPS
Customized
Customized
Name
TFT LCD Display
Size
7.0"
Active Area
154.21(W) × 85.92(H)mm
Resolution
1024*600
Driving Condition
Vdd=2.8~3.3V
Viewing Direction
6h
Interface
RGB 24bit
Brightness
350CD/M2(Typ)
IC
Ek79001he+Ek73215bcga
Operation Temperature( ºC)
-10~50°c
Storage Temperature (ºC)
-20~60°c
Service
OEM/ODM
Transport Package
Plastic/Box/Carton
Specification
RoHS, REACH, ISO
Trademark
OEM/ODM
Origin
China
HS Code
8531200000
Production Capacity
50000PCS/Month
Packaging & Delivery
Package Size
0.10cm * 0.10cm * 0.10cm
Package Gross Weight
0.100kg
Product Description
Product Description China Manufacturer 7.0 Inch TFT 1024X600 TFT Display* It is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
* Backlight with different brightness is customized according to your request.
* It's Standard and Ready-made TFT LCD Module.
* Experienced Team for Your Custom Solution.
* RoHS compliant.
| Item | 7.0 inch TFT LCD Display |
| Resolution | 1024X600 |
| Outline Size | 165.00(W)*100(H)*5.0(T)mm |
| Active Area | 154.21(W) × 85.92(H)mm |
| Operating Voltage | VDD=2.8~3.3V |
| Controller | EK79001HE+EK73215BCGA |
| Viewing direction | 6H |
| Interface | RGB 24Bit |
| Display Technology | TFT |
| Operating Temperature | -10 to 50ºC |
| Storage Temperature | -20 to 60ºC |
Applications
We can provide custom display solutions worldwide across various industries including,medical industry,communications industry,industrial equiment ,appliance industry,communication hand-held device,meters measuring devices,automotive products.
More Products
TFT LCD Display 0.96/1.28/1.44/1.54/1.77/2.0/2.3/2.4/2.8/3.0/3.5/3.97/4.3/4.5/5.0/5.5/7.0/8.0/10.1/15.6/and custom.
Factory Workshop
Factory possesses various full-automatic production lines,Our team of highly qualified electronic engineers provides expert technical support,all products are 100% inspected before shipment.
Having 17 years manufaturing and sales experience of LCD/LCM and TFT Display,Custom sevice and good after sale support, We are looking forwards to estabilshing the win-win cooperation relationship with you.
Certifications Factory possesses various full-automatic production lines,Our team of highly qualified electronic engineers provides expert technical support,all products are 100% inspected before shipment.
Packaging & Shipping
Factory possesses various full-automatic production lines,Our team of highly qualified electronic engineers provides expert technical support,all products are 100% inspected before shipment.
