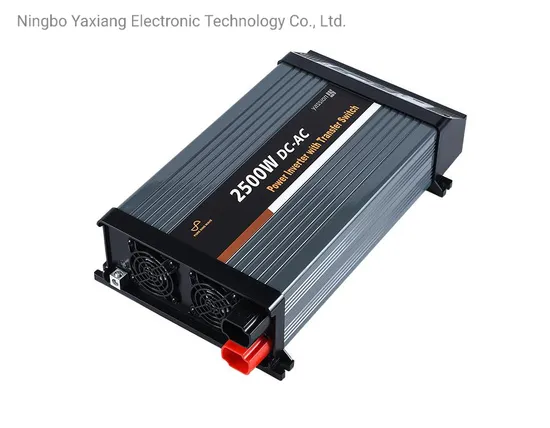

24V 100V/ 110V /120V 2500W DC-AC Pure Sine Wave Inverter with Transfer Switch with Removable Remote Control

24V 100V/ 110V /120V 2500W DC-AC Pure Sine Wave Inverter with Transfer Switch with Removable Remote Control

US$155.00-163.00 10 Pieces (MOQ)

Basic Info.

Model NO.
YX-2.5KUS-2-1(removable display)
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Peak Power
4900W
Output Frequency
50/60Hz
Warrenty
18 Months
Efficiency
91%
OEM
Accepted
Output Current
20.8A
Display
LED Digital
Output Waveform
Pure Sine Wave
Transport Package
1PC/Box; 4PCS/CTN
Specification
402x227x93mm
Trademark
Yassion
Origin
Zhejiang, China
HS Code
8504403090
Production Capacity
6000 PCS / Month

Product Description

Product Description
Introduction Utility Priority When utility power is available, the inverter will transfer this power to the household applicances (load). When utility power is disconnected, the inverter will switch back to invertering from the batteries without disrupting the power going to the appliances.
Battery Priority When inverter output is available, output as invertering is priority. When inverter output is unavailable, this unit will transfer to utility, the utility supply AC to equipments.
Model YX-2.5KUS-1-1 YX-2.5KUS-2-1 YX-2.5KUS-1-2 YX-2.5KUS-2-2
Continuous Power 2500W
Peak Power 4900W
DC Voltage DC12V DC24V DC12V DC24V
AC Voltage 100VAC or 110VAC or 120VAC ± 3V 220VAC or 230VAC or 240VAC ± 3V
No Load Current Draws 1.3A 0.5A 1.3A 0.5A
Max AC Input Current 20.8A 10.8A
DC Voltage Range 10-15.5V 20-31V 10-15.5V 20-31V
Low Voltage Alarm Lo0:10.5V 11V±0.3V Lo0:21V 22V±0.3V Lo0:10.5V 11V±0.3V Lo0:21V 22V±0.3V
Lo1:10.8V 11.3V±0.3V Lo1:21.6V 22.6V±0.3V Lo1:10.8V 11.3V±0.3V Lo1:21.6V 22.6V±0.3V
Lo2:11.3V 11.8V±0.3V Lo2:22.6V 23.6V±0.3V Lo2:11.3V 11.8V±0.3V Lo2:22.6V 23.6V±0.3V
Low Voltage Shut Down Lo0:10.5V 10.5V±0.3V Lo0:21V 21V±0.3V Lo0:10.5V 10.5V±0.3V Lo0:21V 21V±0.3V
Lo1:10.8V 10.8V±0.3V Lo1:21.6V 21.6V±0.3V Lo1:10.8V 10.8V±0.3V Lo1:21.6V 21.6V±0.3V
Lo2:11.3V 11.3V±0.3V Lo2:22.6V 22.6V±0.3V Lo2:11.3V 11.3V±0.3V Lo2:22.6V 22.6V±0.3V
Low Voltage Alarm Recovery Lo0:10.5V 11.3V±0.3V Lo0:21V 22.6V±0.3V Lo0:10.5V 11.3V±0.3V Lo0:21V 22.6V±0.3V
Lo1:10.8V 11.6V±0.3V Lo1:21.6V 23.2V±0.3V Lo1:10.8V 11.6V±0.3V Lo1:21.6V 23.2V±0.3V
Lo2:11.3V 12.1V±0.3V Lo2:22.6V 24.2V±0.3V Lo2:11.3V 12.1V±0.3V Lo2:22.6V 24.2V±0.3V
Low Voltage Protection Recovery Lo0:10.5V 12V±0.3V Lo0:21V 24V±0.3V Lo0:10.5V 12V±0.3V Lo0:21V 24V±0.3V
Lo1:10.8V 12.3V±0.3V Lo1:21.6V 24.6V±0.3V Lo1:10.8V 12.3V±0.3V Lo1:21.6V 24.6V±0.3V
Lo2:11.3V 12.8V±0.3V Lo2:22.6V 25.6V±0.3V Lo2:11.3V 12.8V±0.3V Lo2:22.6V 25.6V±0.3V
Over Voltage Shut Down 15.7V±0.3V 31.5V±0.5V 15.7V±0.3V 31.5V±0.5V
Over Voltage Recovery 15.3V±0.3V 29.5V±0.5V 15.3V±0.3V 29.5V±0.5V
Frequency 50HZ ± 0.5HZ or 60HZ ± 0.5HZ
Output Waveform Pure Sine Wave
AC Regulation THD<3% (Linear load)
Output Efficiency 12V:up to 89%; 24V:up to 91%
Transfer relay rating 30A
Transfer time AC to inverter and inverter to AC less than 30ms
Remote Control Cable length: 5m cables
Power-Saving mode The power saving mode will be activated when the output power is less than 5W. When output power is more than 10W, the inverter will automatically return to normal status.
Ignition Function Connect vehicles battery (or connect positive pole of vehicles' STARTER). The inverters start simultaneously When the vehicles start; The inverters will shut down meantime when the vehicles shut down.
Protection Function Low voltage alarm code: F05 Buzzer sounds and fault light turns red
Low voltage shutdown code: F01 Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level within 20ms.)
Over input voltage protection code: F02 Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level within 20ms.)
over load alarm code: F06 Buzzer sounds and fault light turns red when output power is overloaded around 110%. But the BUZZ and F06 code will not occured when the output power drop to a normal level within 20ms.
Over load protection code: F03 The inverter shutdown when output power is overloaded around 120%, it need to be recovered by hand.
Over temperature alarm code: F07 Buzzer sounds and fault light turns red when the inverter's internal temperature is higher than the limit value (90±5ºC).
Over temperature protection code: F04 The inverter will automatically return to normal status when the internal temperature drops to 80±5ºC.
code: F08 The display will show the code F08 when the thermostat in the inverters is broken
Short circuit protection code: F03 Recover by hand
Reverse polarity protection Built-in fuse
AC input overload protection code: F09 The fan will start to work when the relay temperature is up to 60±5ºC; but it will stop to work when the relay temperature drops to 50±5ºC. The unit will alarm, and no AC output when relay temperature is up to 75±5ºC; But it will auto recover when the relay temperature drops to normal value.
Fuse Internal USB port 5V, 2.1A
Working Temperature -10°C--+50°C Product Size 402x227x93mm
Storage Temperature -30°C--+70°C Packing Size 44.5x27.5x15.5cm
Warranty 18 months N.W. / G.W. (KG) 4.5KG/5.2KG
Start Bipolar soft-start Quantity / Carton 4pcs
Cooling Way Intelligent cooling fan Carton Size 57x46x33cm
Certification CE, E-mark, FCC Carton Weight 22.0KG
