2.7 Ton Mini Excavators
| US$9,999.00-13,999.00 | 1 set (MOQ) |
Basic Info.
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator, Mini Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Product
Excavator
Engine Power
20-170HP
Max. Digging Height
3-10m
Max. Digging Depth
2-6m
Max. Dumping Height
2-7m
Max. Digging Radius
3-9m
Min. Swing Radius
1-3m
Attachments
Bucket, Auger, Hammer, Grapple, Quick Hitch, etc
Track
Steel or Rubber
Transport Package
2 Sets/20′gp; 4 Sets/40′hq
Specification
1.8t-23t
Trademark
STEEL CAMEL
Origin
Shandong
HS Code
8429521200
Production Capacity
2000 Sets Per Year
Product Description

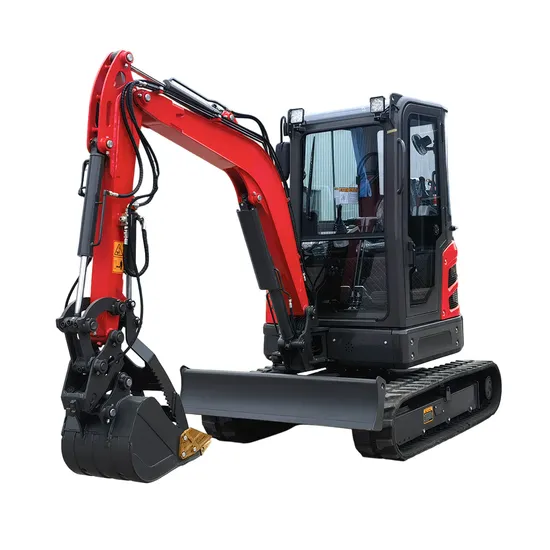

Best price 2.2ton digging used machine mini crawler excavator for saleExcavator main features: --The SC22 crawler excavator is equipped with china Laidong engine , famous brand main pump and valves, EATON brand driving motor and slewing motor, powerful and reliable
--Compact design with 1300mm width, very smart in narrow working space,
--360° slewing, big boom swing angle, left 75°, right 45°, makes it efficient and high working output.
--Hydraulic pilot servo operation system, easy and smooth operating.
--Rubber/Steel track available for different working/tracking conditions.
--Closed cabin optional offer biggest operating comfort for all weathers
Excavator technical data:
| ENGINE | |
| Make | LAIDONG |
| Model | 3TE30 |
| Power /Rotation speed | 22.1kw(30HP)@2350rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe(Rubber &steel track) | 250mm |
| Number of track shoe per side(steel track only) | 38pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.1m³ |
| Swing speed | 12rpm |
| Maximum Grade ability | 30° |
| Maximum Bucket digging force | 13.3KN |
| Maximum Arm digging force | 9.3KN |
| Hydraulic system pressure | 20Mpa |
| Machine weight | 2200kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 4080mm*1300mm*2280mm |
| Axle base(Track length on ground) | 1260mm |
| Track gauge | 1050mm |
| Minimum Ground clearance | 230mm |
| Swing radius at tail | 1180mm |
| WORKING RANGE | |
| Maximum Digging height | 3700mm |
| Maximum Dumping height | 2290mm |
| Maximum Digging depth | 2450mm |
| Maximum Vertical digging depth | 2280mm |
| Maximum Digging radius | 4370mm |
| Minimum swing radius | 2015mm |
| Maximum Lifting height of blade | 240mm |
| Maximum Cutting depth of blade | 310mm |
| Boom swing angle(Left) | 70° |
| Boom swing angle(Right) | 50° |
Excavator attachments:
Excavator warranty:
Many different models are available:
| 1.8ton crawler excavator | 2ton crawler excavator | 2.2ton crawler excavator |
| 6.5ton crawler excavator | 7.5ton crawler excavator | 9ton crawer excavator |
| 13.5ton crawler excavator | 18ton crawler excavator | 23ton crawler excavator |
| 7ton wheel excavator | 8.5ton wheel excavator | 13.5ton wheel excavator |
