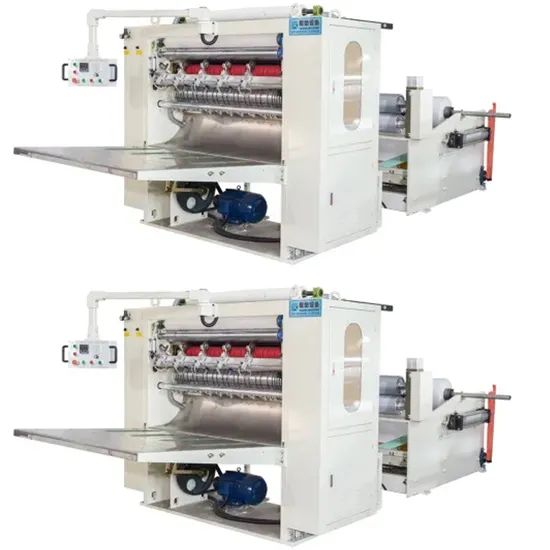

Full Automatic 4~10 Lines V Fold Facial Tissue Folding Making Machine

Product Description

Good Quality Full Automatic Soft Facial Tissue Paper Folding Machine
Technical Parameters for Facial Tissue Folding Machine
1. Complete size, with cutting length of 170mm,180mm,190mm,200mm,210mm,220mm; with width of 4 lanes, 5 lanes, 6 lanes, 7 lanes, 8 lanes, 9 lanes, 10 lanes, and others length can be ordered.
2. Fully automatic controls: frequency conversion speed regulation, real-time monitoring, change of parameters.
3. Longitudinal cutting knife, edge embossing device are air-bag type, separate front and rear independent pneumatic control, so that it's easier to adjust. Alloy cutting blade and bearing steel pinch roller are endurable.
4. It's maintenance free and gets the high-precision transmission because of the overall machine adopts synchronized belt and flat-belt transmission and cone pulley tension adjustment.
5.The machines are designed into wallboard and overall steel base plate with firm structure to ensure stability of high speed machine running.
6. Pneumatic constant-pressure unwinding belt, automatically get adaptable to base paper diameter.
7. Pneumatic left/right synchronized paper feeding mechanism greatly reduces labor intensity.

Model	4Lanes	5Lanes	6Lanes	7Lanes	8Lanes	9Lanes	10Lanes
Max. width of raw paper	840mm	1050mm	1260mm	1470mm	1680mm	1890mm	2100mm
Longitudinal cutting knife	4 front sets and 4 rear sets	5 front sets and 5 rear sets	6 front sets and 6 rear sets	7 front sets and 7 rear sets	8 front sets and 8 rear sets	9 front sets and 9 rear sets	10 front sets and 10 rear sets
Vacuum system	15KW	15KW	22KW	22KW	22KW	22KW	30KW
Main unit power	4KW	5.5KW	5.5KW	7.5KW	7.5KW	7.5KW	11KW
Overall weight	4500kg	5500kg	6500kg	7500kg	8000kg	8300kg	8500kg
Overall size(L*W*H)	6000*2100 *1900mm	6000*2300 *1900mm	6000*2500 *1900mm	6000*2600 *1900mm	6000*3000 *1900mm	6000*3100 *1900mm	6000*3200 *1900mm
Folding speed	500-1000pcs/min/row
Max.diameter of raw paper	1200mm
Core inner diameter	76.2mm

Our Certificate
Our Factory
Our Exhibition
Loading & Shipping Why Choose Us 1. We are specialized in manufacturing Automatic tissue machine for 20 years. 2. We have a whole complete service, include researching, designing, manufacturing, selling and after-sale service. To keep the best product what you want. 3. Our company located in Nanhai, Foshan city which near Guangzhou and HongKong. It's expedient to export for us. 4. 100% QC inspection and debugging before shippment. 5. 100% rest assured after-sales service. Our service
Pre-sale service
Our professional sales team provide the professional consultation and best solution for actual situation and budget. Our professional researching-designing department can design the specific specification machine what you need
After-sale service
1.We provide door to door installation, equipment debugging technical training service and so on.
2. Warranty: 1 year quality assurance.
3. Our after-sale team have a rest assured global presence service even over the warranty period for you.
