New Full-Automatic Paper Air Oil Car Filter Paper Rotary Knife Pleating Machine
| US$2,000.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Sun Hong
Automatic Grade
Full-Automatic
Number of Folded Plates
4
Model
HD-1000-55
Max Width
1020mm
Pleating Height Range
5-55mm
Working Speed
0-125pleats/Min, Adjustable
Voltage
380V-50Hz
Motor Power
1.5kw
Pre-Heating Power
8kw
Range of Temperature
Room Temperature-200degrees
Room Temperature-200degrees
0.6MPa
Machine Weight
750kg
Machine Dimension
1600×1550×1650mm(L*W*H)
Transport Package
Wooden Case
Specification
make to order
Trademark
SUN HONG
Origin
China
Product Description
Full Auto High Quality Pleating MachineProduct Description

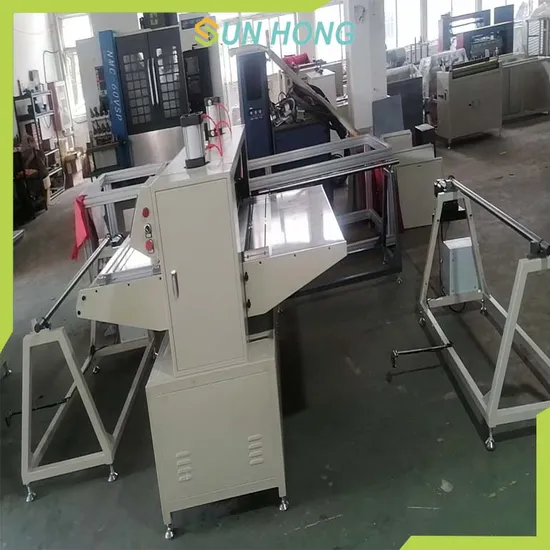

Auto Knife Pleating Machine is an important equipment for producing filter element. It suitable for folding 8-100mm filter material.It simplifies the function setting.operation and maintenance to the greatest extent through the menu
graphicinterface,with higher reliability Versatility and flexibility.This machine can automatically adjust the folding height, and can change the angle of the knife according to the thickness of different filter materials without damaging the filter materials. Application
1.The production line is applicable to automobile three filter industry, hydraulic industry, purification industry, water treatment and other industries.
2.The machine can pleating :filter paper,wiresh ,window screen,cardboard, synthetic,
copper,aluminum,metalli foils and so on. Product Parameters
| Product capacity | 20-35pcs |
| Diameter of center tube | 30-75mm |
| Length of center to be processed | freely |
| Steel-plate thickness | 0.25-0.32mm |
| Motor power | 3kw |
| Power supply | 380V/50HZ |
| Working air pressure | 0.6Mpa |
| M/C weight | 800KG |
| M/C size | 1600 × 800 × 1240mm (L × W × H) |
