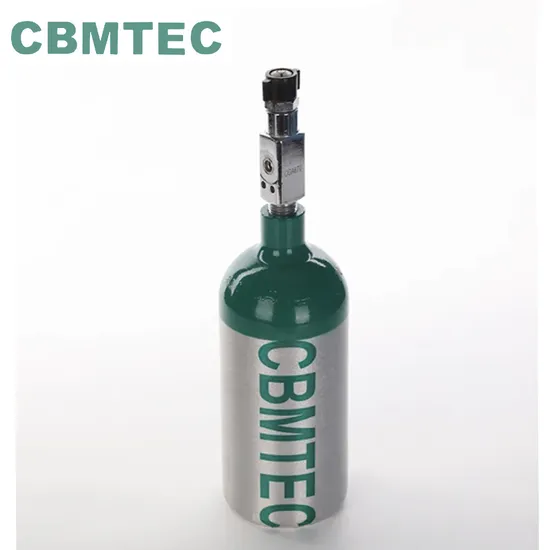

0.7L Medical Aluminum Oxygen Cylinder (Breathing Oxygen Cylinders)

0.7L Medical Aluminum Oxygen Cylinder (Breathing Oxygen Cylinders)

Negotiable 50 Pieces (MOQ)

Basic Info.

Model NO.
LWH89-0.7-15
Material
Alloy
Pressure
10.0MPa≤p<100.0MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
High Pressure (10.0MPa≤p<100.0MPa)
Condition
New
Water Capacity
0.7L
Transport Package
Standard Export Packing
Specification
GB/T11640 ISO7866 EN1975
Trademark
CBMTEC
Origin
Ningbo, China
HS Code
761300100
Production Capacity
20, 000 PCS/Month

Product Description

Product Specifications
Medical Aluminum Oxygen Cylinder
-1).Water Capacity: 0.7L;
-2).Normal Outer Dia.:89mm;
-3).Height: 207mm;
-4).Design Wall Tickness: 4.5mm;
-5).Weight: 0.9kg;
-6).Normal Working Pressure: 150bar;
-7).Water Testing Pressure: 225/250 bar;

For Other Specifications
No Specification Outer Diameter Water Volume Length Weight Working pressure
1 LW-60-0.5-20-H 60mm 0.5L 285mm 0.59kg 200bar
2 LW-75-0.7-15-H 75mm 0.7L 295mm 0.85kg 150bar
3 LW-82-0.7-15-H 82mm 0.7L 235mm 0.9kg 150bar
4 LW-89-1.0-15-H 89mm 1.0L 269mm 1.2kg 150bar
5 LW-89-1.4-15-H 89mm 1.4L 345mm 1.4kg 150bar
6 LW-108-1.0-15-H 108mm 1.0L 210mm 1.3kg 150bar
7 LW-108-1.4-15-H 108mm 1.4L 264mm 1.6kg 150bar
8 LW-108-2.0-15-H 108mm 2.0L 346mm 2.1kg 150bar
9 LW-108-2.5-15-H 108mm 2.5L 413mm 2.5kg 150bar
10 LW-120-2.0-15-H 120mm 2.0L 320mm 2.7kg 150bar
11 LW-120-2.5-15-H 120mm 2.5L 369mm 3.0kg 150bar
12 LW-120-2.8-15-H 120mm 2.8L 398mm 3.2kg 150bar
13 LW-120-3.2-15-H 120mm 3.2L 437mm 3.5kg 150bar
14 LW-140-4.0-15-H 140mm 4.0L 420mm 4.2kg 150bar
15 LW-140-5.0-15-H 140mm 5.0L 500mm 4.9kg 150bar
16 LW140-6.0-15-H 140mm 6.0L 580mm 5.6kg 150bar
17 LW140-8.0-15-H 140mm 8.0L 741mm 7.2kg 150bar
18 LW140-5.0-20-H 140mm 5.0L 525mm 6.3kg 200bar
19 LW140-6.0-20-H 140mm 6.0L 652mm 7.98kg 200bar
20 LW-159-10.0-15-H 159mm 10.0L 730mm 8.8kg 150bar
21 LW-184-9.0-20-H 184mm 9.0L 575mm 12.0kg 200bar
22 LW-184-10-20-H 184mm 10.0L 620mm 12.9kg 200bar
23 LW-184-11-20-H 184mm 11.0L 665mm 14.2kg 200bar
24 LW-184-12-20-H 184mm 12.0L 710mm 15.4kg 200bar
25 LW-203-12-15-H 203mm 12.0L 567mm 11.8kg 150bar
26 LW-203-20-15-H 203mm 20.0L 873mm 17kg 150bar
27 LW-203-21.3-15-H 203mm 21.3L 962mm 19.9kg 150bar
28 LW-204-12-20-H 204mm 12.0L 610mm 16.5kg 200bar
29 LW-204-15-20-H 204mm 15.0L 735mm 18.7kg 200bar
30 LW-204-20-20-H 204mm 20.0L 940mm 23.4kg 200bar
31 LW-232-29.5-15-H 232mm 29.5L 994mm 30.2kg 150bar
32 LW-232-30.0-15-H 232mm 30.0L 1010mm 30.5kg 150bar
33 LW-232-33.4-15-H 232mm 33.4L 1126mm 31.3kg 150bar
34 LW-232-40.0-15-H 232mm 40.0L 1340mm 36.5kg 150bar
35 LW-232-20.0-20-H 232mm 20.0L 750mm 26.9kg 200bar
36 LW-232-26.0-20-H 232mm 26.0L 921mm 30.7kg 200bar
37 LW-232-30.0-20-H 232mm 30.0L 1076mm 36.4kg 200bar
38 LW-232-31.5-20-H 232mm 31.5L 1096mm 38kg 200bar
39 LW-232-40.0-20-H 232mm 40.0L 1365mm 44.1kg 200bar
40 LW-250-40.0-15-H 250mm 40.0L 1150mm 36.7kg 150bar
41 LW-250-46.4-15-H 250mm 46.4L 1305mm 38.7kg 150bar
42 LW-250-47.5-15-H 250mm 47.5L 1340mm 42.0kg 150bar
43 LW-250-50.0-15-H 250mm 50.0L 1590mm 39kg 200bar
44 LW-250-40.0-20-H 250mm 40.0L 1227mm 46.3kg 200bar
45 LW-250-50.0-20-H 250mm 50.0L 1500mm 56kg 200bar

Product Show
Product Process
Packing&Shipping
Exhibition
About Us
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.Our Seamless steel gas cylinders are ideal for holding permanent gases and high pressure liquefied gases such as oxygen, hydrogen, nitrogen, argon and carbon dioxide. We can supply all kinds of seamless steel gas cylinders, and the nominal service pressure ranges from 8MPa to 50MPa, while the nominal water capacity ranges from 0.4L to 110L. Also, we can supply cylinders of different pressure, capacity according to your requirements. The majority of the gas cylinder is made of high-quality alloy steel material. They are widely applied in the chemical, metallurgical, mechanical, medical, scientific research and construction industries.

Advantages
-1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;-4)Cost Advantages: We have cost advantage because our professional and scale economy;-5)Series: We have different series and models, for different standards in different countries;-6)Small order can be acceptable: M. O. Q. =50PCS;-7)Exporting experience: We have over 5 years' experience for exporting.
