Basic Info.
Computerized
Computerized
Inlet Width of Grinder
1420mm
Max. Delivery of Blower
50meters
Transport Package
Standard Packaging
Specification
20x3.5x6.1m
Production Capacity
10sets
Product Description
Introducing the Plastic Recycle Machine --- Die-Cutting EPS Recycle Machine designed for exceptional high-volume output. Experience unparalleled efficiency with this powerful machine.
Outstanding Features of the Machine
--Large-capacity silo featuring an advanced cyclone separator device for optimal performance.
--Equipped with a wide inlet grinder and blower, facilitating a maximum transport distance of 50 meters.

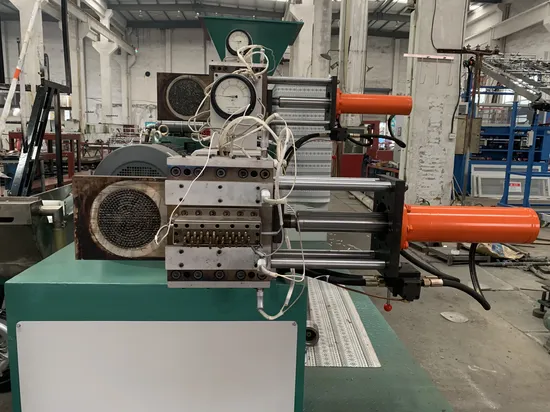

--Both the primary and secondary extruders come with sophisticated hydraulic screen changers for seamless operation.
--Versatile cutting options with both die-cutting and straight-cutting types to suit diverse recycling needs.
--Effortless operation, unwavering stability, superior quality, and enhanced automation characterize this machine.
--Incorporates an efficient reducing screw for superior processing capabilities.
Technical Specifications
Model | HLFSJ-190/130 |
Capacity
| 300-400kg/h
|
Power
| 261KW
|
Cooling water
| 0.3-0.4Mpa
|
Screw L/D
| 21.4/1(First screw); 12:1(Second screw)
|
Available Model Variations
Model Parameters | Unit | HLFSJ-80 | HLFSJ-130 | HLFSJ-150/120 | HLFSJ-190/150 |
Capacity | Kg/h | 30-50 | 100-180 | 180-220 | 300-400 |
Inlet width of crusher | mm | / | 1100 | 1420 | 1420 |
Power of crusher | kw | / | 22 | 30 | 30 |
Max delivery of blower | m | / | 50 | 50 | 50 |
Power of blower | kw | / | 4 | 4 | 5.5 |
Volume of Silo | m2 | / | 9 | 9 | 9 |
Diameter of the primary screw | mm | 80 | 130 | 150 | 190/150 |
L/D | / | 18 | 18.5:1 | 18.7:1 | 21.4:1 |
Diameter of the secondary screw | mm | / | 100 | 120 | 130 |
L/D | / | / | 11:1 | 11:1 | 12:1 |
Installed power | kw | 50 | 90 | 144 | 261 |
Cooling water pressure | Mpa | 0.2 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
Installation size(LxWxH) | m | 6x1.5x1.9 | 17x3.5x5.5 | 20x3.5x6.1 | 20x3.5x6.1 |
Weight | T | 2 | 8 | 10 | 12 |
Product Gallery
Packaging & Delivery
To ensure the utmost safety of your goods, we provide professional, eco-friendly, and highly efficient packaging services designed for convenience and reliability.
Frequently Asked Questions
1. Q: What materials is this machine designed to process? A: This machine is capable of processing EPS and foam PS materials efficiently and effectively.
