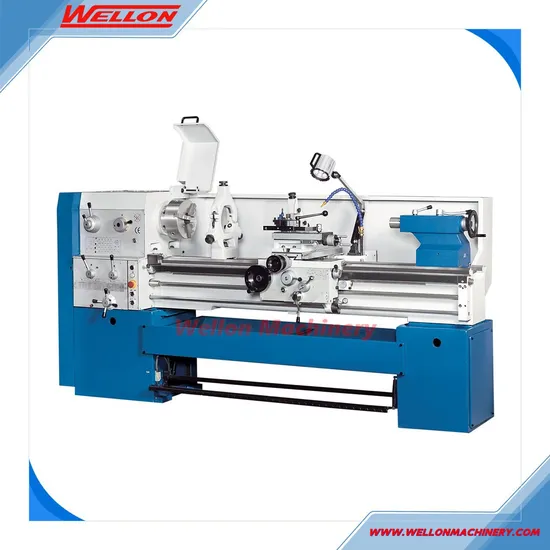

Gear Head Metal Lathe Machine CD6240b / CD6250b / CD6260b Horizontal Turning Lathe Machine
| US$5,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CD6240B / CD6250B / CD6260B
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
Gear Head Metal Lathe Machine CD6240b / CD6250b /
Bed Width
330mm
Center Distance (mm)
1000, 1500, 2000mm
Spindle Bore
65mm
Transport Package
Ply Woodcase
Specification
CE ISO9001 ROHS
Trademark
WELLON
Origin
Tengzhou, China
HS Code
8458190000
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
242.00cm * 115.00cm * 180.00cm
Package Gross Weight
1750.000kg
Product Description
Product DescriptionProducts Description:
Gear Head Metal Lathe Machine CD6240B / CD6250B / CD6260B Horizontal Turning Lathe Machine
Performence Features:
Large spindle bore of 65mm
Main spindle dynamic balanced, and supported at 2 points with taper roller bearings
Outward appearance feat using large plains, making the machine more good-looking
Gapped bed ways, which are super-audio frequency hardened
All gears hardened and ground
Leadscrew and feed rod interlocked, both with overload protection
Automatic feed stopper
Configuration variable totally according to orders:
Metric or inch system; Right or left hand wheel; Large plane type; Halogen lamp; Quick change tool past; DRO; T-slot compound; Chuck guard; Leadscrew hood; Rapid traverse motor; Electromagnetic brake; Forced lubrication system.
Technical parameter:
| MODEL | CD6240B | CD6250B | CD6260B | ||
| CAPACITIES | Max. swing over bed (mm) | 400 | 500 | 600 | |
| Max. swing over cross slide(mm) | 225 | 325 | 360 | ||
| Center distance (mm) | 1000, 1500, 2000mm | ||||
| Max swing in gap (mm) | 530 | 630 | 730 | ||
| Valid length of gap | 260mm | ||||
| Bed width | 330mm | ||||
| HEADSTOCK | Spindle hole | 65mm | |||
| Spindle nose | ISO-C6 or ISO-D6 | ||||
| Spindle taper | Metric 70mm | ||||
| Spindle speeds (Number) | 22-1800rpm (15 steps) | ||||
| FEEDS | Metric threads range (Kinds) | 0.5-28mm (66kinds) | |||
| Inch Threads range (Kinds) | 1-56 /inch(66kinds) | ||||
| Module threads range (Kinds) | 0.5-3.5mm (33kinds) | ||||
| Diametral threads range (Kinds) | 8-56 DP(33kinds) | ||||
| Longitudinal fees range (Kinds) | 0.072-4.038mm/rev(66kinds) | ||||
| Cross feeds range (Kinds) | 0.036-2.019mm/rev(66kinds) | ||||
| CARRIAGE | Cross slide travel | 300mm | |||
| Compound rest travel | 130mm | ||||
| Cross-section size of toolshank | 25*20mm | 25*25mm | |||
| TAILSTOCK | Taper of tailstock sleeve | Morse No.5 | |||
| Diameter of tailstock sleeve | 65mm | ||||
| Travel of tailstock sleeve | 120mm | ||||
| MOTOR | Main drive motor | 5.5kw | 7.5kw | ||
| Coolant pump motor | 0.125kw | ||||
| Rapid traverse motor | 0.12kw | ||||
| Packing Size (L*W*H) (mm) | |||||
| Center Distance 1000mm | 2420*1150*1800 | ||||
| 1500mm | 2920*1150*1800 | ||||
| 2000mm | 3460*1150*1800 | ||||
Standard accessories 3-jaw chuck
4-jaw chuck
Dead centers
Center sleeve
Steady rest
follow rest
Face plate
Coolant system
Wrenched
Oil gun
Operation manual
Thread chasing dial
Longitudinal touch stop
Optional accessories
Live center
Quick change tool post
Taper copy ruler
Digital readout Company Profile
