120A 500V Portable Programmable Three Phase Voltage Source and Current Source with RS232 Port

Product Description

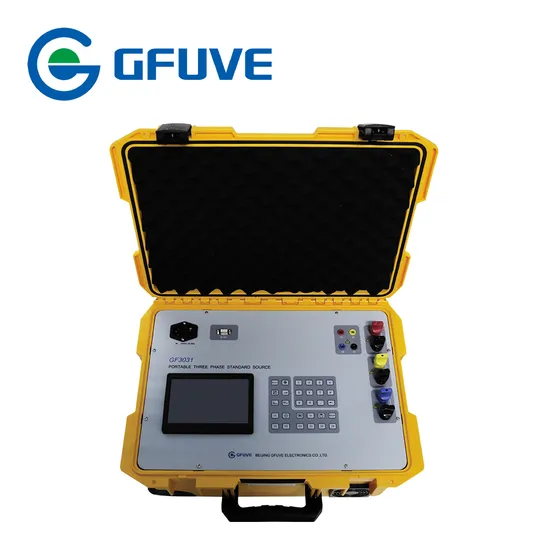

GF3031 120A 500V Portable programmable three phase voltage source and current source With RS232 port
The GF3031 is a powerful and portable programmable three phase current and voltage source. All test values are generated absolutely synthetically with a high degree of accuracy and stability. The source is available in 12 A, 24A or 120 A. The GF3031 three phase portable power source is a lightweight and portable current and voltage source based on newest technology and serves for solving this problem by simulating the required load conditions. Operation is performed by integrated 7" touch screen or via keyboards. FEATURES Accuracy class 0.05 or 0.1 Three phase current generation up to 120 A (AC) Three phase voltage generation up to 500 V All test values are generated synthetically programmable 7 inch TFT touch LCD With USB or RS232 Weight light 15Kg Overload, short circuit, open circuit protection PARAMETERS Electrical parameters AC Voltage output AC Current output Power output Phase angle Power factor Frequency Voltage/Current/Harmonic Setting Mechanical parameters Environmental conditions

Accuracy class	0.05%, 0.1%
Power supply	Single phase AC 100-265 V, frequency 50/60 Hz
Range (U1, U2, U3 phase)	57.7V, 100V, 220V, 380V(Max 500V); range switch automatically
Adjust fineness	0.01% RG
Accuracy	0.05% RG
Stability	<0.01% RG/120s
Distortion degree	<0.3% (not capacitive load)
Output power	30VA
Full load regulation rate	0.01% RG
Full load regulation time	Less than 1mS
Long-term stability	± 60 PPM/year
Range (I1, I2, I3 phase)	0.2A, 1A, 5A, 20A, 100A(Max 120A); range switch automatically
Adjustment range	(0-120)%RG
Adjustment fineness	0.01%RG
Accuracy	0.05% RG
Stability	<0.01% RG/120s
Distortion degree	<0.3% (not capacitive load)
Output power	20VA(20A), 50VA(100A)
Full load regulation rate	0.01% RG
Full load regulation time	Less than 1mS
Long-term stability	± 60 PPM/year
Accuracy	0.05% RG
Stability	0.01% RG/120s
Adjusting range	0°-359.99°
Resolution	0.001°
Accuracy	0.03°
Adjusting range	-1 ~ 0 ~ +1
Resolution	0.0001
Accuracy	0.0005
Adjustment range	40-70Hz
Resolution	0.001Hz
Accuracy	0.005Hz
Temperature drift	± 0.5 PPM/°C
Long-term stability	± 4 PPM/year
Harmonic number	2-51times
Harmonic content	0-40%
Harmonic phase	0-359.99
Harmonic setting accuracy	(10%±0.1%)RD(2)
Dimensions (W×D×H) (mm)	495x390x195
Weight (kg)	15
Working temperature	0°C to 50°C
Storage condition	-30°C to -60°C
Relative humidity	≤ 85%

SELECTION GUIDE No. Accuracy Voltage range Current range Weight

30311201	0.10%	0-500V	0-12A	15KG
303112005	0.05%	0-500V	0-12A	15KG
30312401	0.10%	0-500V	0-24A	16KG
303124005	0.05%	0-500V	0-24A	16KG
303112001	0.10%	0-500V	0-120A	22KG
3031120005	0.05%	0-500V	0-120A	22KG
