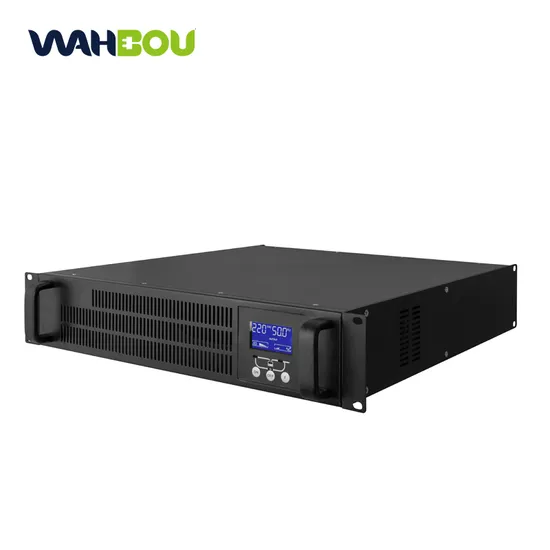

Wahbou Online Rack Mount UPS Rtx 6kVA Input /Output220VAC 192VDC
| US$325.00-355.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RTX 6KS
Protection
Overcurrent
Application
Communication
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Minitype
Equipment Mode
Decentralized
Brand
Wahbou
Output Power Factor
0.9
Input Voltage Range
120-275VAC
Working Frequency Range
40-70Hz(Settable)
Input Power Factor
>=0.99
Charger Current
Settable 1~6A(Customizable)
Transport Package
Neutral Carton Box
Specification
665x483x133mm
Trademark
WAHBOU or OEM
Origin
Guangdong, China
HS Code
8504402000
Production Capacity
100000 Sets/Year
Packaging & Delivery
Package Size
67.00cm * 50.00cm * 14.00cm
Package Gross Weight
20.000kg
Product Description
Wahbou RTX03 High Frequency Online UPS Rack Mount UPS 6KVA Rack Mount UPS Power SupplyOur Advantages
Product Description
Product Parameters
| Model | RTX 6KVA | RTX 6KS | RTX 10KVA | RTX 10KS | |
| Rated Power | 6kVA/5.4kW | 10kVA/9kW | |||
| Input | Voltage Range | 120-275Vac 1P2W+G | |||
| Working Frequency Range | 40-70Hz (settable) | ||||
| Input Power Factor | ≥0.99 | ||||
| Output | Rated Voltage and Accuracy | 220Vac(1±1%) 1P2W+G | |||
| Output Frequency | 46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery) | ||||
| Rated Current | 27A | 45A | |||
| Output Power Factor | 0.9 | ||||
| Output Harmonic Wave | ≤3% (Full R load) | ||||
| Crest Factor | 3: | 1 | |||
| Output Overload | 105%±5%<Load≤125%±5%: Convert to bypass output and alarm after 1 min; 125%±5%<Load≤135%±5%: Convert to bypass output and alarm after 30s; Load>135%±5%: Convert to bypass output and alarm after 300ms. | ||||
| Conversion time between Mains Power and Battery | 0ms | ||||
| Efficiency | ≥92% | ||||
| Battery | Rated Voltage | 192Vdc | |||
| Quantity | 16 | ||||
| Charging Current | 1A | 5.5A | 1A | 5.5A | |
| Dimension (LxWxH) mm | 665x482.6x132.5 | ||||
| Weight | 19kg | 20kg | 20.5kg | 21.5kg | |
| Working Temperature | 0ºC-40ºC | ||||
| Working Humidity | 20%-95% (non-condensing) | ||||
| Noise | ≤55dB | ||||
Company Profile
Certifications
Applications
Exhibition & Customer Visit
If any questions please contact our sales, and You are Welcom to visit us anytime!
