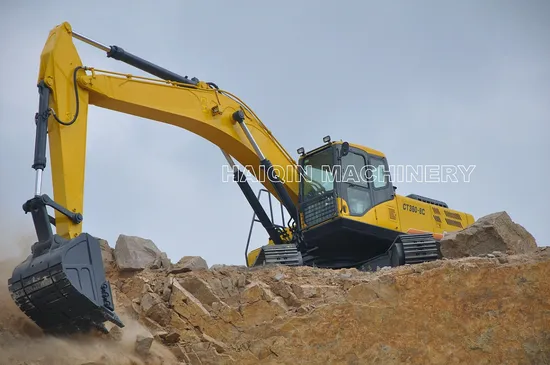

Strong with Japan Engine Hydraulic Mining Crawler Excavator
| US$40,000.00-160,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CT360
Type
Crawler Excavator
Usage
Special Excavator, Mining Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
>1.5m³
Size
Large-Scale
Certification
ISO9001: 2000, SGS, Rops&Fops
Condition
New
Engine
Isuzu-AA-6HK1xqp
Travel Motors
Kyb, Japan
Pump
Kyb, Japan
Transport Package
Bulk
Specification
ISO, SGS
Trademark
CT
Origin
Shandong, China
HS Code
84295100
Production Capacity
8000 Units / Year
Product Description
Features:
1, Engine :Import from Japan, ISUZU-AA-6HK
2, Pump and travel motors : KYB, Japan .
Technical Specification:
| Engine | Travel System | ||||
| Model | ISUZU-AA-6HK1XQP | Travel motors | KYB, Japan | ||
| Type | Direct injection, water cooled, turbocharged | Support roller quantities | 2×8 | ||
| Carrier roller quantities | 2×2 | ||||
| No. of cylinder | 6 | Travel shoes | 2X48 | ||
| Bore and stroke | 115x125(mm) | Travel speed | 3/4.7(km/h) | ||
| Displacement | 7.79L | Drawbar pulling force | 180.4kN | ||
| Power output | 183.9kw/2000rpm | Gradeability | 70%(350) | ||
| Max. torque | 872.8N.m/1700rpm | Ground clearance | 500mm | ||
| Hydraulic System | Cab & Electrical System | ||||
| Pump | KPM, Japan | Cab | Cab installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system | ||
| Type | axial piston pump | ||||
| Max. discharge flow | 2x280(L/min) | ||||
| Max. discharge pressure | |||||
| Boom, arm and bucket | 31.4/34.3 MPa | Voltage | 24V | ||
| Travel circuit | 34.3 MPa | Batteries | 2X24V | ||
| Swing circuit | 27.5 MPa | Battery capacity | 240Ah | ||
| Control circuit | 3.9 MPa | Boom, Arm & Bucket | |||
| Pilot control pump | Gear type | Boom cylinder | 140x100xS1480-L2045 | ||
| Main control valves | KYB, Japan | Arm cylinder | 160x110xS1825-L2430 | ||
| Oil cooler | Air cooled type | Bucket cylinder | 140x100xS1285- L1870 | ||
| Swing System | Refilling Capacity & lubrication | ||||
| Swing motor | KPM, Japan | Fuel tank | 550 L | ||
| Swing motor type | Axial-piston motor | Cooling system | 36 L | ||
| Hydraulic oil released | Hydraulic oil released | Engine oil | 35 L | ||
| Hydraulic disc brake | Hydraulic disc brake | Hydraulic oil tank | 266 L Tank Oil Level | ||
| Swing speed | 10 r/min | 340 L Hydraulic System | |||
| Bucket | |||||
| Type | Backhoe bucket | ||||
| Bucket capacity | 1.6m3 (SAE) | ||||
| Bucket capacity scope | 1.4-1.6 m3 | ||||
| Number of bucket teeth | 6 | ||||
| Bucket width | 1616 mm | ||||
