Ecd-Q5000b Surprise Price Safe and Reliable Industrial Radio Remote Control Crane Joystick for Truck Crane

Product Description

INDUSTRIAL JOYSTICK REMOTE CONTROL ECD-Q5000B:4 buttons & 2 cross putter Strong penetrating power Whether it's powering on/off or action commands, it can quickly respond and enjoy the convenience of wireless control. Product Parameters

Model	ECD-Q5000	ECD-Q5000-A	ECD-Q5000-B
Button	4 buttons & 2 cross putter	4 buttons & 2 cross putter	4 buttons & 2 cross putter
LED Display Panel	Yes	No	No
Protection level	IP65
Corrosion protection grade	WF2
Transmit power	≤10MW
Rated power of receiver	≤6MW
Response time	≤20MS
Channel spacing	25HZ
Moulation mode	GFSK
Signal transmission rate	9600BIT/S
Signal reception sensitivity	-115DBM
Function customization	Accepted
OEM/ODM	Accepted
Working humidity range	0~97%RH
Adaptive temperature	-40°C~+85°C
Button life	12 million times
Shell material	PA66+ high quality fiber
Transmitter supply voltage	DC 1.8-3.6V
Receiver supply voltage	AC/DC 12V/24V/Customizable
Transmitting frequency	433MHZ/Customizable
Remote control distance	225 Meters/Can be customized to 5km

Product Description The signal is stable and can operate normally in complex construction environments.The signal has strong penetrating power. The remote control distance can reach 225 meters. The transmission distance can be customized according to actual needs.
1. IP65 waterproof, dust-proof, anti-shock, auto shut-off, single service, privacy
2. Cold and heat resistant(-40ºC~+80ºC)
3. Anti-fall and anti-crushing
4. Shockproof and impact resistant
1. IP65 waterproof, dust-proof 2. Cold and heat resistant(-40ºC-80ºC) 3. Anti-fall and anti-crushing 4. Shockproof and impact resistant
Easy to operate, long remote control distance, stable signal, lower nower consumption. Detailed Photos
Details Images

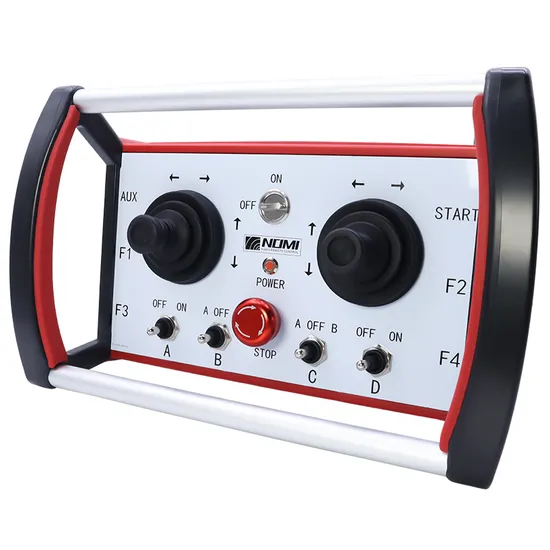

1. Cross Joystick Super strong safety design, over 4.3 billion kinds of non-repeated safety code, failure self-diagnosis and frequency automatic locking track etc. 2. LED Display LED high-definition display can display power, time, signal strength, control status, etc. 3. Security Lock Open the security lock when turned on, the display shows parameters, the system starts. 4. Function Buttons Button functions can be customized according to customer needs. 5. LED Fill Light Can be used as a supplementary light source when lighting conditions are poor. 6. Leather Bandage Shoulder-style leather bandage with soft and breathable lining, comfortable to wear and more convenient to operate.
Our Advantages 1. The remote control shell is e one-time die-casting molding; 2. The use of selected pure copper cable, supporting U-type terminal, to achieve rapid wiring; 3. The remote control special PCB board, using the international well-known brand King board FR-4 board; 4. The remote control relay using the United States well-known brand TE; 5. The remote control of the special crystal using the military-quality anti-jamming crystal; 6. The main Chip using Texas Instruments TI brand; 7. Magnetic switches using internationally renowned brand Lite; 8. Key using Alps brand; 9. Diodes and transistors using Renesas and Rohm brand; 10. Resistors and capacitors using Atsushi and Fenghua brand.
Applications Scenarios
Packaging & Shipping Company Profile
HENAN NOMI ELECTRONIC TECHNOLOGY CO., LTD, is located in Zhengzhou Airport Intelligent Manufacturing Industrial Park, Henan Province. It is a technology development enterprise integrating R&D, design, manufacturing, operation and sales. Nomi Electronics has long been focusing on the R&D and practice in thefield of industrial wireless remote control. After years of development, it has become aleading enterprise in the field of industrial remote control, which integrates independent research and development, technical consultation and system integration, and integrates remote control and intelligence of equipment.
The company continues to deepen the field of wireless remote control, helping the industry to develop in asmarter, more efficient and safer direction Nomi Electronics regards "creating brilliance, only quality" as its business principle and "always providing safe and reliable industrial wireless remote control products" asits enterprise mission. Committed to developing safe, reliable, durable, andhigh-quality industrial wireless remote control equipment, improving work efficiency and providing operators with a more convenient and safer operating environment. Inindustry, construction, forestry, mining, etc. The field realizes the perfect unification of mechanical equipment and intelligent control.
1.QUALITY
Good material makes a good quality, we have been guided by the principle of quality first.
2. ODM & OEM We support ODM /OEMservice, can better satisfy the customers.
3. SERVICE
We meet all the needs of customers,customer-oriented, for customers tosolve practical problems.

FAQ
1.What is your minimum order and payment method? We can accept sample orders for trial orders. T/T100% for less than USD 10,000, and T/T 50% can be used for more than 10,000 US dollars. 2. Will you provide after-sales service?
Of course
1) all products are subject to strict factory quality inspection before packaging. 2) all the products are packed in our factory, and the second package is delivered byexpress delivery before shipment. 3) if there are any problems during operation or installation, please contact us freelyand we will solve them with professional guidance. 3. ls there a warranty?
Of course. all our branded products have a 12-month warranty period. we provide24-hour after-sales service and technical support. if you find any problems during installation, please feel free to contact us. 4. What certificates are approved for your product?
We have CE, FCC, RoHS, ISO9001 and so on. 5. Can you customize it according to my needs? You can send me inquiries according to your needs. we can customize them with technical engineers. 6. ls your price the lowest?
Do you mind the quality? The quality of our supply is value for money, inferior products will waste and affect the work process, why not choose a medium price towork well? 7. ls the product 100% assembled? Yes, all the products are 100% assembled.
