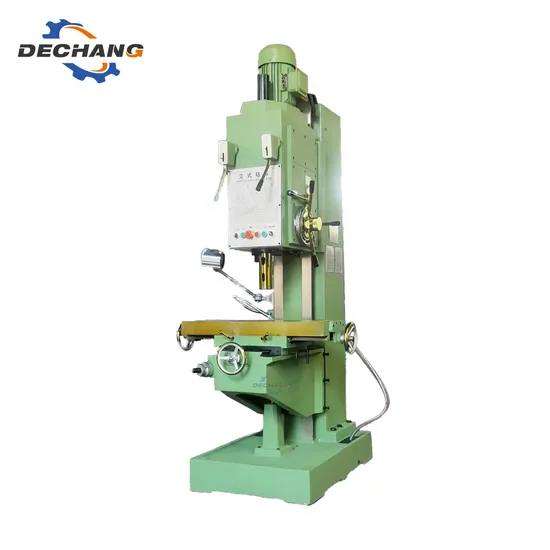

High Precision Square Column Vertical Drilling Machine Price Z5140b Z5140b-1

Product Description

High Precision Square Column Vertical Drilling Machine Price Z5140B Z5140B-1

Product Description
Product description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Main technical specifications:

Specifications	Z5140B	Z5140B-1
Max drilling diameter(mm)	40	40
Spindle taper	MT4	MT4
Spindle travel	250	250
Spindle box travel(manual)(mm)	200	200
Spindle speed (steps)	12	12
Spindle speed range(r.p.m)	31.5~1400	31.5~1400
Feed series	9	9
Feed range(mm/r)	0.056~1.80	0.056~1.80
Table size(mm)	560x480	800x320
Table longitudinal(cross) travel(mm)	-	450/300
Table vertical travel(mm)	300	300
Max distance form spindle nose to table surface(mm)	750	750
Main motor power(kw)	3	3
Overall size(mm)	1090 x 905 x2465	1300*1200*2530
N/W(kg)	1300	1350
