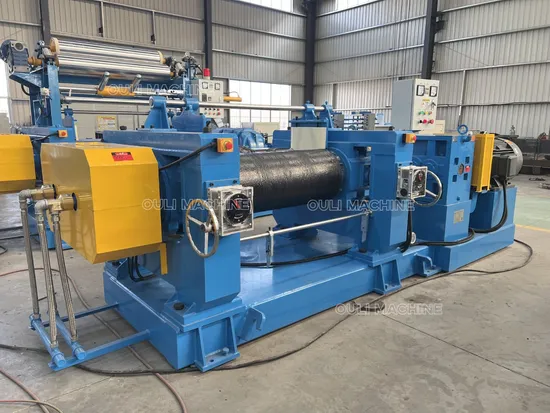

Rubber Two Roll Mill Open Mixer Machine for Mass Rubber Mixing

Product Description

Rubber Two Roll Mill Open Mixer Machine For Mass Rubber Mixing 1. PRODUCT DESCRIPTION of Rubber Two Roll Mill Open Mixer Machine for Mass Rubber Mixing: Rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products.
2. TECHNICAL PARAMETER of Rubber Two Roll Mill Open Mixer Machine for Mass Rubber Mixing:

Parameter/model		XK-160	XK-250	XK-300	XK-360	XK-400
Roll diameter(mm)		160	250	300	360	400
Roll working length (mm)		320	620	750	900	1000
Capacity (kg/batch)		4	15	20	30	40
Front roll speed (m/min)		10	16.96	15.73	16.22	18.78
Roll speed ratio		1:1.21	1:1.08	1:1.17	1:1.22	1:1.17
Motor power (KW)		7.5	18.5	22	37	45
Size (mm)	Length	1104	3230	4000	4140	4578
	Width	678	1166	1600	1574	1755
	Height	1258	1590	1800	1800	1805
Weight (KG)		1000	3150	5000	6892	8000

Parameter/model		XK-450	XK-560	XK-610	XK-660	XK-710	XK-810
Roll diameter(mm)		450	560/510	610	660	710	810
Roll working length (mm)		1200	1530	2000	2130	2200	2540
Capacity (kg/batch)		55	90	120-150	210	280	400
Front roll speed (m/min)		21.1	25.8	28.4	29.8	31.9	Contact me for details
Roll speed ratio		1:1.17	1:1.17	1:1.18	1:1.09	1:1.15
Motor power (KW)		55	90/110	160	250	285
Size (mm)	Length	5035	7100	7240	7300	8246
	Width	1808	2438	3872	3900	3556
	Height	1835	1600	1840	1840	2270
Weight (KG)		12000	20000	44000	47000	51000

3. ENERGY EFFICIENCYof Rubber Two Roll Mill Open Mixer Machine for Mass Rubber Mixing :
4.CONFIGURATION of Rubber Two Roll Mill Open Mixer Machine for Mass Rubber Mixing:
1. Rolls: chilled alloy cast iron rolls with surface hardness 68~72hs. the rolls are mirror finished & polished, duly grinding and are hollowed for cooling or heating.
2. Roll clearance adjusting unit: nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.
3. Roll cooling: universal rotary joints with inner spray pipes with hoses and headers. piping is complete up to supply pipe terminal.
4. Journal bearing housing: heavy duty steel casting housing fitted with anti friction roller bearings.
5. Lubrication: full automatic grease lubrication pump for anti friction roller bearings fitted in dust sealed housing.
6. Stand frame & apron: heavy duty steel casting.
7. Gearbox: hard-tooth reduction gearbox, GUOMAO brand.
8. Base frame: common base frame heavy duty, steel channel and ms plate fabricated accurately machined on which whole machine with gearbox and motor are fitted.
9. Electric panel: star delta electric operating panel with auto reversing, voltmeter, ampere, overload protection relay, 3 phase indicator and emergency stop switch.
5.FAQ:
Q1: Where is your factory located?
A1: Qingdao OULI machine co.,LTD is located at Wangjialou industrial zone ,Huangdao district ,Qingdao city, China

Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines 6. WHY CHOOSE OULI
