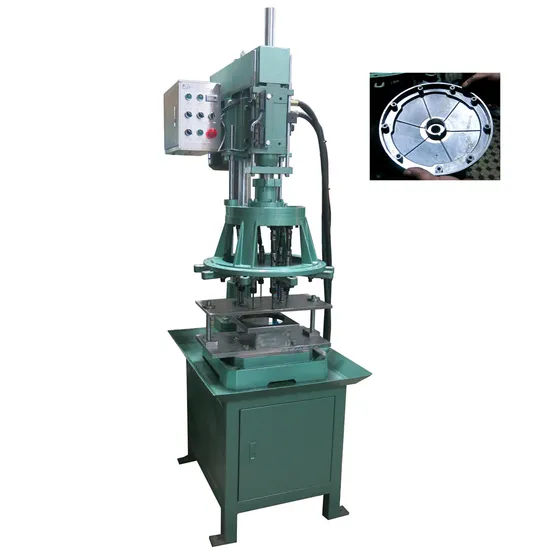

Good Quality Factory Directly Drill Press Customized Multi Hole Vertical Drilling Machine Automatic Price
Basic Info.
Model NO.
CX-13016
Controlling Mode
CNC
Number of Shaft
Customized
Hole Diameter
16mm/Customized
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Auto Multi-Spindle Head Drilling & Tapping Machine
Machine Type
Vertical Bench Table Type Drilling Machine
Application
Make Holes on Metal
Warranty
One Year Warranty
Max Drilling Diameter
1-16mm
Advantage 1
Multi-Functional
Advantage 2
High Accuracy
Advantage 3
Competitive Price
Spindle Travel
130mm
Base Size
297*440mm
Brand
Chansin
Transport Package
Plywood Case
Specification
114*74*194cm
Trademark
Trade Mark
Origin
Dongguan, China
HS Code
8459700000
Production Capacity
80 Sets Per Month
Product Description
Product DescriptionGood Quality Factory Directly Drill Press Customized Multi Hole Vertical Drilling Machine Automatic Price
| CX-13016 Parameters | |
| Max Drilling Diameter | 16mm |
| Spindle Travel | 130mm |
| Distance from Spindle Center to Column | 210mm |
| Distance from Spindle Nose to Working Table | 335mm |
| Spindle Taper | JT6/ER25 |
| Spindle Rotation Range | 1400/2000rpm |
| Working Pressure | 20-25kg/cm2 |
| Base Size | 297*440mm |
| Total Height | 1080mm/1820mm |
| Motor Power | 1.5kw |
| Voltage | 240v/380v/415v |
| Cooling Pump Motor Power | 45w |
| Weight | 280-490kg |
Standard Type Drilling Machine
| Drilling Machine | CX-8510 | CX-13016 | CX-15035 |
| Maximum Drilling Diameter | 10mm | 16mm | 35mm |
| Electricity | 380V/415/440V 3 Phase | 380V/415/440V 3 Phase | 380V/415/440V 3 Phase |
| Spindle to Column Distance | 200mm | 210mm | 250m |
| Spindle Nose to Work Table | 100-330mm | 100-350mm | 120-420mm |
| Spindle Speed | 1400/2800 rpm | 1400/2000 rpm | 1000/1400 rpm |
| Machine Head Travel | 280mm | 280mm | 320mm |
| Motor Power | 0.75kw | 1.5kw | 2.2kw |
Standard Type Tapping Machine
| Tapping Machine | CX-4508 | CX-6516 | CX-6516 |
| Tapping Range | 1-8mm | 2-16mm | 5-32mm |
| Machine Head Travel | 260mm | 300mm | 460mm |
| Spindle Nose to Work Table | 90-350mm | 100-350mm | 100-600mm |
| Multi spindle Capacity | M2*16,M3*9,M4*5,M5*3,M6*2,M8*1 | M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1 | M8*16,M10*10,M12*7,M14*6,M16*4,M18*3,M20*3,M32*1 |
| Motor Power | 0.75kw | 1.5kw | 2.2kw |
| Electricity | 380V/415/440V 3 Phase | 380V/415/440V 3 Phase | 380V/415/440V 3 Phase |
| Spindle Stroke | 45mm | 65mm | 65mm |
Drilling and Tapping Heads
| CX-HD5-85 AIR/HYDRAULIC DRILLING HEAD | Maximum Drilling φ1-φ10mm Main Spindle Taper ER20/JT6 Main Spindle Travel 85mm Spindle Max Rotating Speed 1400 (r/min) Cylinder Area 21.6m2 Center Height 70±0.01 Motor 0.75KW Net Weight 38kg Using Hydraulic 20-30 kg/cm2 Size(L*W*H) 115*464*370mm |
| CX-HD6-130 HYDRAULIC DRILLING HEAD | Maximum Drilling φ1-φ16 mmMain Spindle Taper ER25/JT6Main Spindle Travel 130mmSpindle Max Rotating Speed 1400 (r/min)Cylinder Area forward 37.1m2 backward 15.8m2Center Height 70±0.01Motor 1.5KWNet Weight 50kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 160*719*417mm |
| CX-HD8-150 HYDRAULIC DRILLING HEAD | Maximum Drilling φ1-φ35mmMain Spindle Taper MT4/LINE GROOVEMain Spindle Travel 150mmSpindle Max Rotating Speed 1500 (r/min)Cylinder Area forward 71.2m2 backward 31.4m2Center Height 90±0.01Motor 1.5KWNet Weight 67kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 280*860*470mm |
Non-standard Drilling & Tapping Machine
Detailed Photos
Company Profile
FAQ
1. Are you a manufacturer or trade company?
-- Yes, we are a manufacturer, our factory is in Dongguan, Guangdong Province, China.2. What is payment terms?
-- 30% deposit, the balance will be paid before delivery.3. What is the warranty time ?
-- One year warranty and life time maintenance.4. Do you provide OEM service?
-- Yes,we provide OEM service.5. Can you send engineers to serve overseas ?
-- Yes, we can, but you are responsible for round-trip air tickets and accommodation of our engineers.6. What is the loading port ?
-- Shenzhen / Guangzhou port in China.
