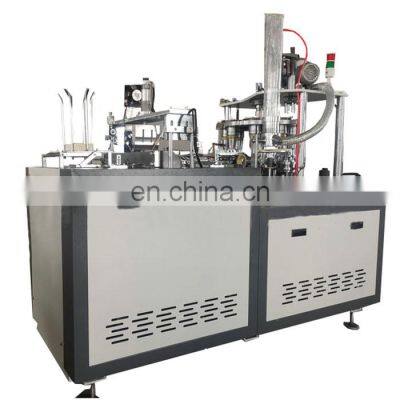

Automatic High Speed Paper Cup making machine Automatic single (double) film paper bowl making machine

Product Description

Product Description
Product DescriptionHalf Set Mould: Different Size Cups with same bottom size and angle, Just different size in cup height and Top Dia. Clients can change half set mould to produce different size of cups ( Easy Change Mould). Full set mould: Different Size Cups with different bottom size or angle, even different size for cup height and Top Dia. Clients should change Full set mould to produce different size of cups( Very difficult to change mould). We suggest that new start clients Just for change half set mould , as changing the half set mould will be easier. And one machine is better goes with 1-2 extra half set mould.ModelJBZ-OCS12 Open Cam Single plate Middle Speed Paper Cup MachinePaper Cup Size3 ~ 12OZ (30ml~330ml Mould exchangeable) Max Cup height to 115 MM, Max Cup Bottom Diameter 80MMCup Side WeldingCopper heater Ultrasonic heaterRaw MaterialOnly one-side PE coated paper( Popular for Hot drink cups )One or Two side PE coated Paper(Popular for Hot and Cold drinkCups)Suitable PaperWeight140gsm—250 GSM140gsm—350 GSMTotal Power4.8 kw6 kwSpeed65-75 pcs/min65-75 pcs/minPower Source50/60HZ, 380V/220V /3 Phase can be customizedWorking Air SourceNo need provide AirAir pressure:0.4Mpa;Air Out-put:0.6m³/minuteNeed to buy Air Compressor(by user)Cup Bottom HeatingHeater Knurling1side PE paper by heater knurling; 2side PE paper by cool device (circle water) knurlingCup Bottom KnurlingHeater Knurling (if use single PE coated paper)SpecificationBrand NameHongxinWeight (KG)1500Core ComponentsPLC, MotorProduct namePaper Cup Making MachineVoltage380v/50HZ(as Customers' Request )Power4.5KWTop diameterMin 45mm---Max 100mmBottom diameterMin 35mm---Max 80mmtotal heightMin 40mm---Max 105mmSuitable paper materialsingle PE-coated paper other materialsCapacity50pcs/minDimension2600 x 1150 x 1650 mmPackage dimensions2600 x 1200 x 1700 mmPacking & DeliveryCompany ProfileZhecheng Hongxin machinery factory is a professional manufacturer of agricultural ,industrial and food process machinery.We are located in Zhengzhou city.We manufacture and sell machines to our clients over 15 years.We are gold supplier on Alibaba for more than 12 years,every clients will get full protection for orders with our free Trade Assurance.If you are interested in our machine, welcome to consult, we will provide you with fast and high quality service.Our service
