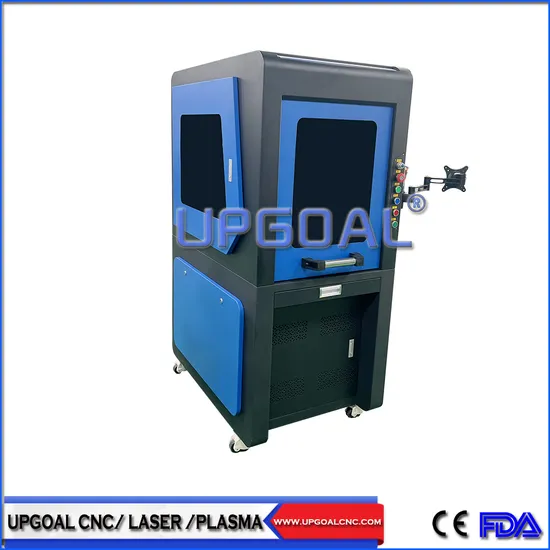

50W Automatic Focusing Full Enclosed Fiber Laser Marking Machine

Product Description

50W Automatic Focusing Full Enclosed Fiber Laser Marking Machine
Features
1. Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of Raycus 50W fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.
2. With Famous SINO-GALVO AF2206-600 serious galvanometer & Wavelength brand, F-THETA scanning lens Fiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area. The galvanometer is automatic focusing type, just press button, then can realize auto focusing, no need measure material thickness and control by software, convenient and easy to operate.
3. Original EzCad controller, Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.
4. Full enclosed protection case, keep safty marking and machine cleaning.
5. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.
6. Double red dot positioning , no need meausre the material with focus rulter, conveineint for operation.
7. Marked graph and characters is permanent , will not regression due to friction.
8. Equipped with smoke purifier( Conyson brand, 100W), with 3 layers purification, net filtration: 0.3um99.99%, the universal slub tube can be bent and adjusted at 360 degrees at will, with good supporting effect, high temperature resistance, good airtightness, and resistance to aging. High temperature resistant silicone cover, air volume regulating valve, large smoking area, good effect. Smart chip, block alarm.
9. With rotary axis for cylinder marking
10. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.
11. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.
12. One piece design of control cabinet and marking table, small cover area.
Technical Parameters

Laser type	Fiber laser
Maximum output laser power	50W, Raycus, China, QB series
Wave length of laser	1064nm
Marking scope	200*200mm
Laser sources	Fiber module
Laser Head	High speed scanning head
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Positioning	Double red dot
Vertical shaft lifting height	700mm
Control system	Original EzCad controller with USB port( 3 axis)
Marking depth	0.01-5mm( depends on different materials)
Marking line width	0.01-0.1mm
Marking speed	≤7000mm/s
Laser repetition frequency	20kHz~80kHz
Galvanometer	High speed digital galvanometer (SINO-GALVO, AF2206-600), auto focusing type
Filed lens	Scanning lens( F-THETA, F=290mm)
Rotary axis	Chuck type, diameter 80mm
Computer	Optional
Cooling method	Air Cooling
Power supply	AC 220V/110V, 50/60Hz, single phase
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Process Material	All kinds of metal and part of non-metal materials( opque acrylic/plastic)
Certificate	CE/FDA

Applications
Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component, hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters's, marking, mass production, marking clear and beautiful, never disappear.
Reference Working Videos
https://youtu.be/zZq45LOJVSI?si=Jk1SHb_SfXViCE8i
Accessories & packing

For more information, just feel free to contact us!
