Reliable and Fully Automatic Three-Layers Common-Extruding Rotary Die Film Blowing Machine (3SJ-G1000) (CE) Under Simple Structure

Product Description

Reliable and Fully Automatic Three-Layers Common-Extruding Rotary Die Film Blowing Machine (3SJ-G1000) (CE) under Simple Structure
Description :
1. Die head is layer type spiral mandrel, continuous 3600 rotation.
2. Screen pack changer design is reliable, safe in operation and change the fitter Screen easier.
3. Various functional parts may be installed to the lies., such as length counting Device, vertical cutting device, cooling water row pipe, film spreading roller,Scrap collecting device.
Use:
The Film blowing machine lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm.
In the thickness packaging films, film has good insulation, for instance holding temperature, antihumid, antibreeze, anti-rain, anti-rost, insulation oxygen, oil.
Resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.
Main Parameter:

Model	3SJ-G1000	3SJ-G1200	3SJ-G1500
Screw Diameter	φ 55× 2 φ 60× 1	φ 60× 2 φ 65× 1	φ 65× 2 φ 70× 1
Screw Ratio L/D	28: 1	28: 1	28: 1
Screw Speed	15-150r/min	15-150r/min	15-150r/min
Main Motor Power	15KwX2 18.5Kw X1	18.5Kw X2 22Kw X1	22Kw X2 30KwX 1
Extrusion Output(Single)	50kg /h	80kg /h	100kg /h
Range of Die	φ 150 φ 200	φ 200 φ 250X1	φ 250 φ 300X1
Single-sided Thickness of Film	0.01 -0.10mm	0.01 -0.10mm	0.01 -0.10mm
Max. Folding Width of Film	1000mm	1200mm	1500mm
Electric Total Capacity	76Kw	88Kw	102Kw
Overall Dimension	6600X4100X 5000mm	6800X4300X6000mm	7000X4800X7500mm
Weight of Machine	4T	5T	6T

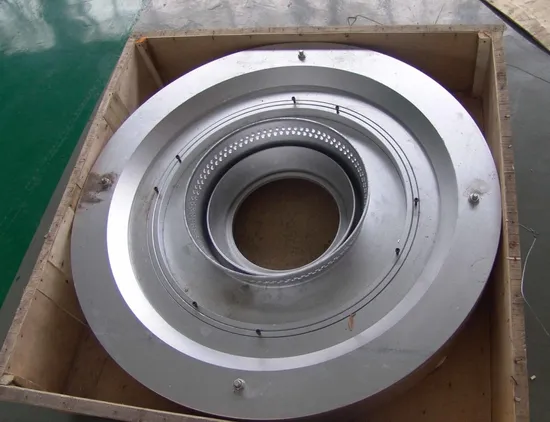

Machine Pictures:
