2AWG Chow 600V Service Drop Cable Wire Duplex Wire 6AWG Shepherd ACSR

Product Description

600V Service Drop Wire Conductor Duplex ACSR #2 AWG Chow 6AWG,4AWG,1/0AWG
Product Description
Service drop wire primarily used for 600 volt overhead service applications such as street lighting.outdoor lighting.and temporary service for construction. To be used at voltage of 600 volts phase- to -phase or less and at conductor temperatures not to exceed 75 Degree for polyethylene insulated conductors or 90 Degree for cross-linked polyethylene(XLPE) insulated conductors.

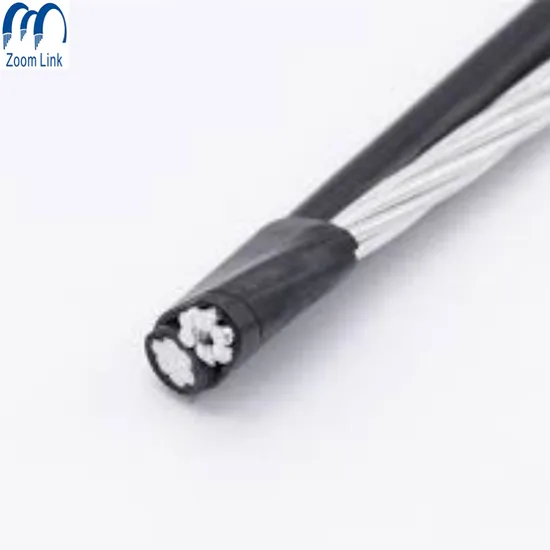

Duplex Service Drop Wire.
Duplex aluminium overhead cables have two conductors: one for electrodes, and the other one as a messenger (neutral conductor). This electrical wire, also called duplex overhead aluminum wire, is designed and manufactured for use in 600 V power distribution facilities. It is aerially installed with a maximum operational temperature rating of 75°C.
Conductors:
Duplex aluminium overhead cables have a concentric strand or compressed 1350-H19 series aluminum conductor.
Messenger:
Duplex overhead aluminum wire has a bare ACSR messenger.
Optional constructions include a messenger of AAC or 6201 alloy.
Insulation:
Cables with duplex overhead service drop conductors have a black cross linked polyethylene ( XLPE) insulation.Duplex Service Drop ACSR

Code word

AWG or kcmil

Bare Neutral Messenger

Phase conductor

Weight Kg/km

Allowcable Ampacities(A)

ACSR

Rated Strength Lbs.

AAC

Insul Thick.mm

XLPE

PE

Number

Dia. mm

Number

Dia.mm

Number

Dia.mm

Setter Shepherd Eskimo Terrier Chow Bull

1*6AWG+1*6AWG 1*6AWG+1*6AWG 1*4AWG+1*4AWG 1*4AWG+1*4AWG 1*2AWG+1*2AWG 1*1/0AWG+1*1/0AWG

1 1 1 1 1 1

1.68 1.68 2.12 2.12 2.67 3.37

6 6 6 6 6 6

1.68 1.68 2.12 2.12 2.67 3.37

1190 1190 1860 1860 2850 4380

1 7 1 7 7 19

4.11 1.56 5.19 1.96 2.47 1.89

1.14 1.14 1.14 1.14 1.14 1.52

111 113 171 173 266 427

85 85 115 115 150 205

70 70 90 90 120 160

Triplex ACSR cable

Code Word	AWG or Kcmil	Neutral ACSR	Phase AAC
Paludina	2*6 AWG+1*6AWG	6+1 /1.68	1/4.11
Voluta	2*6 AWG+1*6AWG	6+1 /1.68	7/1.56
Whelk	2*4 AWG+1*4AWG	6+1 /2.12	1/5.19
Periwinkle	2*4 AWG+1*4AWG	6+1 /2.12	7/1.96
Conch	2*2 AWG+1*2AWG	6+1 /2.67	7/2.47
Neritina	2*1/0 AWG+1*1/0 AWG	6+1 /3.37	7/3.12
Cenia	2*1/0 AWG+1*1/0 AWG	6+1 /3.37	19/1.89
