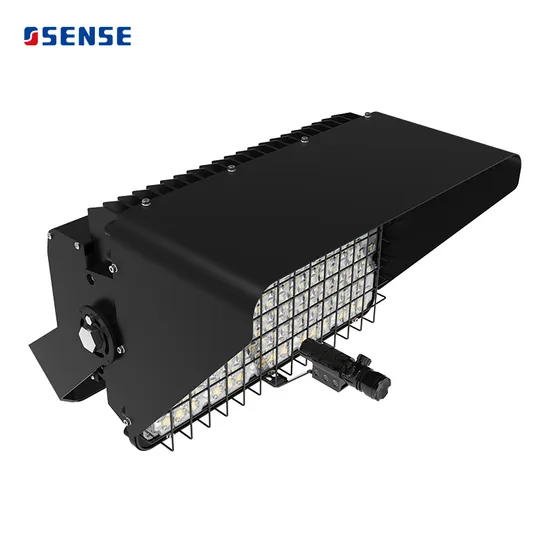

Ultra Bright 400W to 1200W Stadium LED Flood Light

Product Description

LED LH Stadium Light Features - High efficiency, lightweight, and small size
-DALI/1-10v/0-10v/DMX512 dimming, optional microwave induction function
-Customizable spare parts: shade cover/laser pointer/anti-collision net
-Realize high-definition broadcast of venues
-CRI 80 and 90 optional
-Housing and driver box are separated, easy to maintain
-IP66 /Ik 08
-Modular design, which can assemble different power specifications to meet the lighting needs of different venues
-10kv/20kv SPD function for optional
-Polarized lenses are designed to effectively control glare and make people in sports areas more comfortable -Installation for the convenience of customers, existing products stents designed for bending, and a lock screw rotation can be adjusted to install

GENERAL INFORMATION		ELECTRIC INFORMATION
Mounting Module	Bracket system	Electrical Class	Class I
		Nominal Voltage	100-240VAC/100-277VAC/180-528VAC 50Hz/60Hz
Operating Temperature	-30ºC/+45ºC	LED Current	SMD5050 160mA@24V
		LED Lamp Power	400W(56000Lm) 500W(70000Lm) 600W(84000Lm) 800W(112000Lm) 1000W(140000Lm) 1200W(168000Lm)
Storage Temperature	-30ºC/+80ºC	Power Factor	≥0.95(at full load)
Lens Options	25°;40°	Flickering Percentage	≤8%;≤3% (optional)
		THD	≤20%
		Driver Brand	Meanwell/Moso/Sosen/INVENTRONICS
Main Reference Company Standards	EN 60598-1; EN60598-2-1; EN62493; EN55015; EN 61000-3-2; EN61000-3-3; EN61547; EN62471 IEC 60598-1:2003;IEC 60598-1:2008; IEC 60598-2-1:1987;IEC 60598-2-3:2002; IEC 60838-1:2004;IEC 60838-2-2:2006; IEC/PR 61341:2010;IEC 61347-1:2007; IEC 61347-2-13:2006;IEC 62031-2008; GB 7000.1; GB 7000.201; GB17743; GB17625.1	Surge protection options (kV)	L-N 4KV,L/N-PE 6KV@Meanwell L-N 6KV,L/N-PE 10KV@Moso/Sosen/INVENTRONICS 10kV (optional) with LED signal and thermo fuse to disconnect load at the end of life 20kV (optional) with LED signal and thermo fuse to disconnect load at the end of life
		Control system	DALI/1-10v/0-10v/DMX512 dimming, optional microwave induction function
		Mains connection	For max cable section 2.5mm2 Outgoing cable H05RN-F 2/3/5 × 1.5mm2 Length on request (optional)

HOUSING AND MATERIALS		OPTICAL INFORMATION
Housing	ADC 12 die-casting +AL 1070 pure aluminum	Led color temperature	4000K , 5000K ,5700K,
Optic	PC	CRI	CRI≥70; CRI≥80(optional); CRI≥90(optional); TLCI is an option available upon request
Housing Finish	Powder spraying surface treatment, corrosion resistance
Refractor	PC UV0
Standard Colour	RAL9017 Black;RAL9007 Gray(optional)	LED Brand	CREE;Nichia;Lumiled
IP	IP65	Upward light output ratio	0%
Impact Housing Resistance	IK08 (5 J) IK09 (optional) (10 J), IK10 (optional) (20 J)	Photobiological safety class	IEC 62471, EN 62778 EXEMPT GROUP
Impact Lens Resistance	IK08 (5 J)	Testing standard	LM 79-19, EN 13032-1 (all measurements in ISO17025 accredited laboratory)
Vibration Test	Compliant with modified IEC 68-2-6 (0.5G), ANSI C136.31 (3G)	Lifetime of the LED's	Tq =45°,>50000h - L70B50

Product details:
FAQ
Q1. Are you a manufacturer?
SENSE : Yes, we have our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management since 2003.
Q2: What Certification do you have?
SENSE : TUV/CB/CE/EMC/SAA/CCC/RoHS approved. And with IP65/IP66/IP67/IK08/IK09/IK10/EMF/LM79/LM80/TM21/WF2/IES report.
Q3. Can I have our LOGO on the products and packages?
SENSE : Yes. We provide OEM service to our customers
Q4: Warranty of your products?
SENSE : 5-7 Years warranty depends on customer's requests
Q5: What about the lead time?
SENSE : 3-7 days for sample, 10-20 days for mass production based on order quantities..
Q6: Can you provide OEM/ODM?
SENSE : Yes, OEM/ODM support for the different application requirements.
Q7: How to deal with the faulty?
SENSE :
1, Our products are produced in a strict quality control system and the defective rate will be less than 0.1%.
2, For defective products in the warranty period, we will send new lights with new orders for small quantities.
3, For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the actual situation.
