Reliable 3/4/5 Axis CNC Cutting Machine CNC Router Machine and CNC Milling Machine Perfect for Heavy Duty Work Torno CNC Lathe Machine Price
Basic Info.
Model NO.
VL1165
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
ISO 9001
Condition
New
Three Axis Travel
1100/650/600 mm
Worktable Size(L*W)
1200*600
Motor Power
11/18.5 Kw
Three Axis Feed Speed
10/10/10 M/Min
Air Source/Pressure
280L/Min 68bar
Transport Package
Wooden Base + Vacuum Sealed Paper + Pearl Cotton
Specification
3000*3100*3000mm
Trademark
GUGAO
Origin
China
HS Code
84571010
Production Capacity
8000 Pieces/Year
Packaging & Delivery
Package Size
300.00cm * 310.00cm * 300.00cm
Package Gross Weight
6200.000kg
Product Description
Detailed PhotosProduct Description

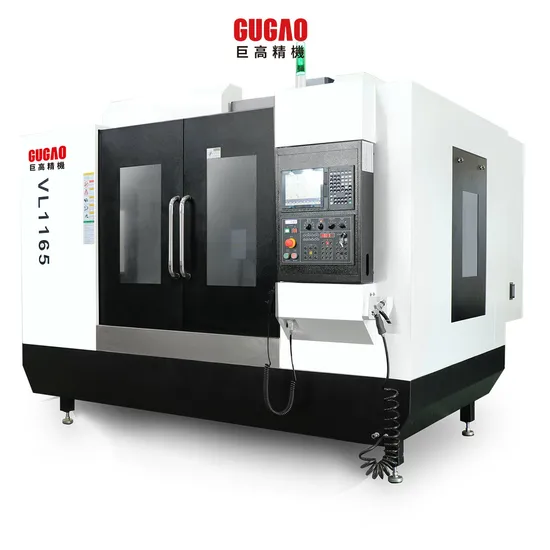

VL1165 Production Description
Whole machine: The machine tool adopts a column fixed and cross slide moving structure. The X, Y, and Z axes adopt linear rolling guides, and the whole machine has high rigidity, high stability and high reliability. The large flow fully enclosed protection has beautiful appearance and is easy to operate and maintain.
Spindle box: It adopts a high-speed spindle unit, the spindle taper hole is BT40 specification, and has a central blowing function.
Tool magazine: The tool magazine adopts a disc-type tool magazine with reliable quality and stable performance.
Drive: The three-axis motor and high-precision ball screw adopt a direct drive method. The ball screw is pre-stretched and installed to improve the transmission rigidity and positioning accuracy. The three linear coordinate axes all adopt linear rolling guides. The machine tool has small vibration when feeding at high speed and no creeping when feeding at low speed.
Main Paremeters
| Name | Unit | Parameter | |
| Travel | Three axis travel | mm | 1100/650/600 |
| Distance from spindle end face to worktable center | mm | 125~725 | |
| Worktable | Worktable Size(L×W) | mm | 1200×600 |
| Maximum load-bearing capacity of worktable | kg | 800 | |
| T-shaped slot (width × spacing × quantity) | mm | 18×110×5 | |
| Spindle | Spindle diameter Spindle bore taper | ∅150/BT40 | |
| Max. spindle speed | rpm | 12000 | |
| Motor power | kW | 11/18.5 | |
| Feed Speed | Three axis fast moving speed(X/Y/Z) | m/min | 36/36/36 |
| Three axis feed speed | m/min | 10/10/10 | |
| Magazine | Magazine capacity | 24 | |
| Max tool diameter/length/weight | ∅75mm/300mm/7kg | ||
| Maximum tool diameter (full tool/adjacent empty tool) | mm | 75/150 | |
| Tool exchange time (T-T) | s | 1.8 | |
| Accuracy | (X/Y/Z) Positioning accuracy | mm | 0.010 |
| (X/Y/Z) repositioning accuracy | mm | 0.006 | |
| Others | Air source/pressure | 280L/min 6~8 Bar | |
| Total electrical capacity | KVA | 25 | |
| Water Tank Volume | L | 420 | |
| (X×Y×Z)Machine size (X×Y×Z) | mm | 3000×3100×3000 | |
| Estimated weight | kg | 6200 | |
