CNC Beam Drilling Machine for Heavy Structural Fabrication

Product Description

Product Description

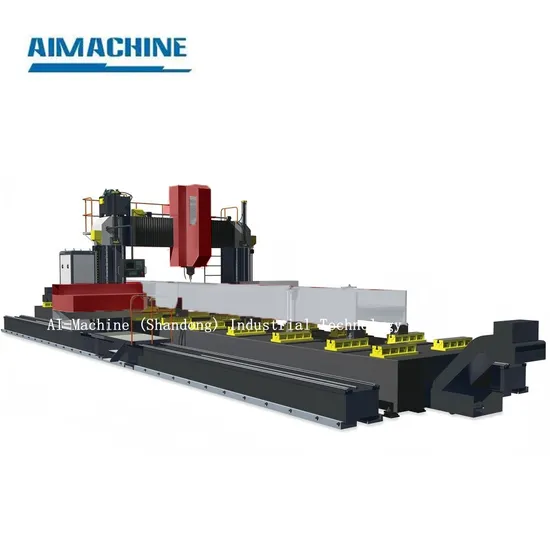

1.It was designed for large-section beam fabricators 2.It is equipped with three moving drilling spindles. 3.All spindles are built on the gantry and moving along with drilling table. 4.All these 3 drilling units can work simultaneously on the web and flanges of the beam. 5.Reduced setup time & simple to operate;

6.Sturdy frame, no vibrations and noiseless; 7.Circle-Controlled system to measure accurately; 8. Specialized for large-section beam drilling. 9. Layout marking function easy for welding. 10. Autocad, X-STEEL & Tekla file reading instead of manual input.

Product Parameters

H-Beam	Web:500-1500 mm Flange:200-1500mm
Max. Length of Workpiece	12,000 mm
Max. Loading Capacity	3 tons/m, total 35 Tons/whole worktable
No. of Drilling Spindle	3 (Left + Right + Top)
Drilling Diameter	Φ12.5~Φ50 mm
Spindle taper	5#
Motor Power of Drilling Spindle	7.5 kW x 3
Spindle Y & Z movement	Yes
Feed	CNC feeding; 0 ~10 m/min (vertical to H-beam)
Cooling mode	Outside cooling
Spindle rpm	Stepless120~560 rpm
Profile Height Measuring	Included
Profile Width Measuring	Included
Layout Point Marking (not drilling through)	Available (for welding purpose)
Moving Speed	0 ~ 10m/min
Drive Model	Double side servo + Gear
Structure	Plate welded
Manual Programming	Available
Type	Chain & Plate recycling moving type
Speed	1/min
No. of scraps removal system	1sets
