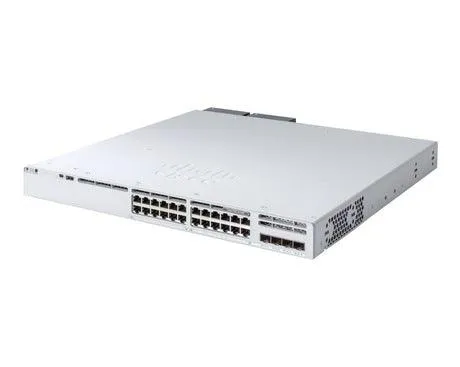

New Cisco Catalyst C9300 48 Port Gigabit Switch C9300-48t-a
| US$2,260.00-2,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C9300-48T-A
Transmission Rate
190.47 Mpps
Ports
≧48
Switching Capacity
256 Gbps
Transport Package
Carton Box
Specification
45*41*5cm
Trademark
cisco
Origin
China
Production Capacity
1000 PCS Per Year
Packaging & Delivery
Package Size
42.00cm * 45.00cm * 5.00cm
Package Gross Weight
10.000kg
Product Description
Product Description
New Cisco Catalyst C9300 48 Port Gigabit Switch C9300-48T-A
1. Catalyst 9300 48-port 1G copper with modular uplinks, data only, Network Advantage
2.Availability :50 pcs ready stock every month
3.Price : Good Discount off CISCO GPL
4.Condition :New original Factory sealed
5. Other Related Part code :C9300L-24T-4G-E C9300L-24P-4G-E
6. 1 year Warranty
Product HIghlights
Highest wireless scale for Wi-Fi 6 and 802.11ac Wave 2 access points supported on a single switch with select models.
Catalyst 9300 and Catalyst 9300L/LM models are based on the Cisco UADP 2.0 Application-Specific Integrated Circuit (ASIC) with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries.
Catalyst 9300X models are based on UADP 2.0sec ASIC which adds line rate support for Crypto, including 100G hardware-based IPsec.
x86 CPU complex with 8-GB memory, and 16 GB of flash and external USB 3.0 SSD pluggable storage slot (delivering up to 240GB of storage with an option SSD drive) to host containers. C9300X models support 16GB of memory.
USB 2.0 slot to load system images and set configurations.
Up to 1 TBps of local stackable switching bandwidth with Catalyst 9300X models.
Flexible and dense uplink offerings with 100G, 40G, 25G, Multigigabit, 10G, and 1G as fixed or modular uplinks.
Easy transition from 40G to 100G and 10G to 25G with dual-rate optics.
Flexible downlink options with 25G, 10G and 1G Copper and Fiber as well as the densest Multigigabit links.
With a mix of copper (1G up to 10G) and fiber (1G up to 25G) supported in a single stack, multiple flexible deployment scenarios are enabled, including 2-Tier, 3-Tier and Hybrid architectures.
Models Comparison
Switch models and configurations
| Models | Modular Uplinks and Speeds | Stacking Bandwidth Support | mGig Density |
| Catalyst 9300X | 10G, 25G, 40G, mGig and 100G | Stackwise-1T (480G when stacking with Catalyst 9300 model) | 48x 10G |
| Catalyst 9300 | 10G, 25G, 40G and mGig | Stackwise-480 | 48x5G and 24x10G |
| Catalyst 9300L | ✗ | Stackwise-320 | 12x10G |
| Catalyst 9300LM | ✗ | Stackwise-320 | 8x10G |
Related Products
Cisco Catalyst 9300 Series Switches
| Part Number | Description |
| C9300X-48HX-E | Catalyst 9300 48-port 10G/mGig copper with modular uplink, UPOE+, Network Essentials |
| C9300X-48HX-A | Catalyst 9300 48-port 10G/mGig copper with modular uplink, UPOE+, Network Advantage |
| C9300X-48HX-M | Catalyst 9300 48-port 10G/mGig copper with modular uplink, Meraki Advance or Enterprise |
| C9300X-48TX-E | Catalyst 9300 48-port 10G/mGig copper with modular uplink, data only, Network Essentials |
| C9300X-48TX-A | Catalyst 9300 48-port 10G/mGig copper with modular uplink, data only, Network Advantage |
| C9300X-48TX-M | Catalyst 9300 48-port 10G/mGig copper with modular uplink, data only, Meraki Advance or Enterprise |
| C9300X-48HXN-E | Catalyst 9300 36-port 5G/mGig, 12-port 10G copper with modular uplink, UPOE+, Network Essentials |
| C9300X-48HXN-A | Catalyst 9300 36-port 5G/mGig, 12-port 10G copper with modular uplink, UPOE+, Network Advantage |
| C9300X-48HXN-M | Catalyst 9300 36-port 5G/mGig, 12-port 10G copper with modular uplink, UPOE+, Meraki Advance or Enterprise |
| C9300X-24HX-E | Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE+, Network Essentials |
| C9300X-24HX-A | Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE+, Network Advantage |
| C9300X-24HX-M | Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE+, Meraki Advance or Enterprise |
| C9300X-12Y-E | Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials |
| C9300X-12Y-A | Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage |
| C9300X-12Y-M | Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Meraki Advance or Enterprise |
| C9300X-24Y-E | Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials |
| C9300X-24Y-A | Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage |
| C9300X-24Y-M | Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Meraki Advance or Enterprise |
| C9300-24T-E | Catalyst 9300 24-port 1G copper with modular uplinks, data only, Network Essentials |
| C9300-24T-A | Catalyst 9300 24-port 1G copper with modular uplinks, data only, Network Advantage |
| C9300-24T-M | Catalyst 9300 24-port 1G copper with modular uplinks, data only, Meraki Advance or Enterprise |
| C9300-24P-E | Catalyst 9300 24-port 1G copper with modular uplinks, PoE+, Network Essentials |
| C9300-24P-A | Catalyst 9300 24-port 1G copper with modular uplinks, PoE+, Network Advantage |
| C9300-24P-M | Catalyst 9300 24-port 1G copper with modular uplinks, PoE+, Meraki Advance or Enterprise |
| C9300-24U-E | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Essentials |
| C9300-24U-A | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Advantage |
| C9300-24U-M | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Meraki Advance or Enterprise |
| C9300-24UB-E | Catalyst 9300 higher scale 24-port 1G copper with modular uplinks, UPOE, Network Essentials |
| C9300-24UB-A | Catalyst 9300 higher scale 24-port 1G copper with modular uplinks, UPOE, Network Advantage |
| C9300-24U-E-UL | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Advantage |
| (Compatible with UL1069 Standard*) | |
| C9300-24U-A-UL | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Advantage |
| (Compatible with UL1069 Standard*) | |
| C9300-24H-E | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE+, Network Essentials |
| C9300-24H-A | Catalyst 9300 24-port 1G copper with modular uplinks, UPOE+, Network Advantage |
| C9300-24UX-E | Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE, Network Essentials |
| C9300-24UX-A | Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE, Network Advantage |
| C9300-24UX-M | Catalyst 9300 24-port 10G/mGig copper with modular uplinks, UPOE, Meraki Advance or Enterprise |
| C9300-24UXB-E | Catalyst 9300 higher scale 24-port 10G/mGig copper with modular uplink, UPOE, Network Essentials |
| C9300-24UXB-A | Catalyst 9300 higher scale 24-port 10G/mGig copper with modular uplink, UPOE, Network Advantage |
| C9300-48T-E | Catalyst 9300 48-port 1G copper with modular uplinks, data only, Network Essentials |
| C9300-48T-A | Catalyst 9300 48-port 1G copper with modular uplinks, data only, Network Advantage |
| C9300-48T-M | Catalyst 9300 48-port 1G copper with modular uplinks, data only, Meraki Advance or Enterprise |
| C9300-48P-E | Catalyst 9300 48-port 1G copper with modular uplinks, PoE+, Network Essentials |
| C9300-48P-A | Catalyst 9300 48-port 1G copper with modular uplinks, PoE+, Network Advantage |
| C9300-48U-E | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Essentials |
| C9300-48U-A | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Advantage |
| C9300-48UB-E | Catalyst 9300 higher scale 48-port 1G copper with modular uplinks, UPOE, Network Essentials |
| C9300-48UB-A | Catalyst 9300 higher scale 48-port 1G copper with modular uplinks, UPOE, Network Advantage |
| C9300-48U-E-UL | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Essentials |
| (Compatible with UL1069 Standard*) | |
| C9300-48U-A-UL | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Advantage |
| (Compatible with UL1069 Standard*) | |
| C9300-48H-E | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE+, Network Essentials |
| C9300-48H-A | Catalyst 9300 48-port 1G copper with modular uplinks, UPOE+, Network Advantage |
| C9300-48UXM-E | Catalyst 9300 48-port 2.5G (12 10G/mGig) copper with modular uplinks, UPOE, Network Essentials |
| C9300-48UXM-A | Catalyst 9300 48-port 2.5G (12 10G/mGig) copper with modular uplinks, UPOE, Network Advantage |
| C9300-48UN-E | Catalyst 9300 48-port 5G copper with modular uplinks, UPOE, Network Essentials |
| C9300-48UN-A | Catalyst 9300 48-port 5G copper with modular uplinks, UPOE, Network Advantage |
| C9300-24S-E | Catalyst 9300 24-port 1G SFP with modular uplinks, Network Essentials |
| C9300-24S-A | Catalyst 9300 24-port 1G SFP with modular uplinks, Network Advantage |
| C9300-48S-E | Catalyst 9300 48-port 1G SFP with modular uplinks, Network Essentials |
| C9300-48S-A | Catalyst 9300 48-port 1G SFP with modular uplinks, Network Advantage |
| C9300L-24T-4G-E | Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, data only, Network Essentials |
| C9300L-24T-4G-A | Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, data only, Network Advantage |
| C9300L-24P-4G-E | Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, PoE+, Network Essentials |
| C9300L-24P-4G-A | Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, PoE+, Network Advantage |
| C9300L-48T-4G-E | Catalyst 9300 48-port 1G copper, with fixed 4x1G SFP uplinks, data only, Network Essentials |
| C9300L-48T-4G-A | Catalyst 9300 48-port 1G copper, with fixed 4x1G SFP uplinks, data only, Network Advantage |
| C9300L-48P-4G-E | Catalyst 9300 48-port 1G copper, with fixed 4x1G SFP uplinks, PoE+, Network Essentials |
| C9300L-48P-4G-A | Catalyst 9300 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+, Network Advantage |
| C9300L-48PF-4G-E | Catalyst 9300 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+, Network Essentials |
| C9300L-48PF-4G-A | Catalyst 9300 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+, Network Advantage |
| C9300L-24T-4X-E | Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Network Essentials |
| C9300L-24T-4X-A | Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Network Advantage |
| C9300L-24T-4X-M | Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Meraki Advanced or Enterprise |
| C9300L-24P-4X-E | Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Network Essentials |
| C9300L-24P-4X-A | Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Network Advantage |
| C9300L-24UXG-4X-E | Catalyst 9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Network Essentials |
| C9300L-24UXG-4X-A | Catalyst 9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Network Advantage |
| C9300L-24UXG-4X-M | Catalyst 9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Meraki Advanced or Enterprise |
| C9300L-48T-4X-E | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Network Essentials |
| C9300L-48T-4X-A | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Network Advantage |
| C9300L-48T-4X-M | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Meraki Advanced or Enterprise |
| C9300L-48P-4X-E | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Network Essentials |
| C9300L-48P-4X-A | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Network Advantage |
| C9300L-48P-4X-M | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Meraki Advanced or Enterprise |
| C9300L-48PF-4X-E | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+, Network Essentials |
| C9300L-48PF-4X-A | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+, Network Advantage |
| C9300L-48PF-4X-M | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+, Meraki Advanced or Enterprise |
| C9300L-48UXG-4X-E | Catalyst 9300 48-port fixed uplinks UPOE, 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper, 4x 10G uplinks, Network Essentials |
| C9300L-48UXG-4X-A | Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 4x 10G/1G SFP+ uplinks, UPOE, Network Advantage |
| C9300L-48UXG-4X-M | Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 4x 10G/1G SFP+ uplinks, UPOE, Meraki Advanced or Enterprise |
| C9300L-24UXG-2Q-E | Catalyst 9300 24-port 8x mGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Essentials |
| C9300L-24UXG-2Q-A | Catalyst 9300 24-port 8x mGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Advantage |
| C9300L-48UXG-2Q-E | Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Essentials |
| C9300L-48UXG-2Q-A | Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Advantage |
| C9300LM-48UX-4Y-E | Catalyst 9300 mini 48-port UPOE, 8-port 10G Multigigabit copper, 40-port 1G, 4x 25G uplinks, Network Essentials |
| C9300LM-48UX-4Y-A | Catalyst 9300 mini 48-port UPOE, 8-port 10G Multigigabit copper, 40-port 1G, 4x 25G uplinks, Network Advantage |
| C9300LM-48U-4Y-E | Catalyst 9300 mini 48-port 1G copper, UPOE, 4x 25G uplinks, Network Essentials |
| C9300LM-48U-4Y-A | Catalyst 9300 mini 48-port 1G copper, UPOE, 4x 25G uplinks, Network Advantage |
| C9300LM-48T-4Y-E | Catalyst 9300 mini 48-port 1G copper, data, 4x 25G uplinks, Network Essentials |
| C9300LM-48T-4Y-A | Catalyst 9300 mini 48-port 1G copper, data, 4x 25G uplinks, Network Advantage |
| C9300LM-24U-4Y-E | Catalyst 9300 mini 24-port 1G copper, UPOE, 4x 25G uplinks, Network Essentials |
| C9300LM-24U-4Y-A | Catalyst 9300 mini 24-port 1G copper, UPOE, 4x 25G uplinks, Network Advantage |
| Part Number | Description |
| C9300X-NM-8M | Catalyst 9300X 8x 10G/1G Multigigabit Network Module |
| C9300X-NM-8Y | Catalyst 9300X 8x 25G/10G/1G Network Module |
| C9300X-NM-2C | Catalyst 9300X 2x 100G/40G Network Module |
| C9300X-NM-4C* | Catalyst 9300X 4x 100G/40G Network Module |
| C9300-NM-4G | Catalyst 9300 Series 4x 1G Network Module |
| C9300-NM-4M | Catalyst 9300 Series 4x Multigigabit Network Module |
| C9300-NM-8X | Catalyst 9300 Series 8x 10G/1G Network Module |
| C9300-NM-2Q | Catalyst 9300 Series 2x 40G Network Module |
| C9300-NM-2Y | Catalyst 9300 Series 2x 25G/10G/1G Network Module |
We cooperate with DHL ,FEDEX ,UPS express and many other flexible couriers and forwarders
Company Profile
Shanghai Yuedian Information Technology Limited mainly resells network and telecom products .Brands we do are cisco ,HPE ,EMC ,Fortinet ,Ericsson Etc.
We have been in this network products supply field for over 10 years .We are experienced and capable of handling big projects especially and have completed a lot of projects value ranging from 100k usd to 5 million USD
Our customers are mostly resellers ,system integraters ,contractors and trading companies etc.who support different kinds of end users in their countries .Projects we directly and indirectly support involves in bank ,tax department ,railway tranportation ,defense securities etc.
Either you are looking for immediate stock shipment with competitive price or for a best support in pricing,delivery and aftersale online support ,we are here to assist you .
>> TK1050-1 Timing Chain Kit for MERCEDES-BENZ OM 603.963/OM 603.960 with oe no.:6010500711S1
>> Hi Quality Cat5e CAT6 CAT6A Cat7 Shielded Keystone Jack for Fast Data Transmission
>> Smart Light RGB Smart LED Bulb
>> Automatic Plastic Injection Moulding Machine for PVC Pipe Fitting
>> High Quality Semi-Metallic Low-Steel Ceramic Auto Spare Parts Brake Pad Global Famous Brake Pad Brand by Best Manufacturer A118K 04465-36010 with ECE R90
>> V-Show 650W Cold Spark Fountain Wedding Indoor Cold Fireworks Spark Machine with Remote Control
>> High Quality New Condition Efficiency Professional FRP Pultrusion Machine
>> Shuoxin Factory Factory Direct Sales Farm Tools Rear Mounted Beidou Satellite GPS System Land Grader Flat Satellite Land Leveler
>> Small Animal Feed Mixer Grinder for Poultry Farm
>> best fishing reel cheap price saltwater reel metal spinning fishing reels
>> Non-standard custom new energy vehicle alternator test bench testing equipment
>> Seagebel Custom Design Industrial Lab Factory ESD Cleanroom Reusable Anti Static Conductive Polyester Men Women Work Hooded Long Sleeve Gear Overall Coverall
>> Landnovo Car Headlights lens cover for BMW 1 series 118i 120i 2012-2014 Assembly Headlamp Surface replacement headlight cover
>> Sustainable Energy Gasoline Generator for Cow Farming Solutions
>> in Stock Iceriver Ks3 Ks0 PRO Ks3m 6t 9.4t 8.2t Ks1 Ks2 K9 Ant Kas Kaspa Fast Payback Machine
>> Farm Machine Corn Machine Threshing Sheller/Electric Driven Grain Processing Peeling Machine/Outstanding Sorghum Wheat Maize Thresher
>> TPU Supercritical Foam Sheet Machine
>> Hot Sale Factory Price Multifunctional Gym Bench Adjustable Fitness Training Weight Bench
>> Engineering Plastic White POM Board 20-100 Black Race Plate POM Plate Steel Plate
>> 1.3mm 1.6mm 2, 0mm 2.4mm 2.7mm 3.0mm 3.3mm 3.5mm 4.0mm Grass Trimmer Line Brush Cutter Nylon Weed String Trimmer Line Replacement
>> Automatic Metal Coil Cut to Length Machine
>> Silicone Kitchenware Household Non-Stick Cooking Spatula Baking Colorful Kitchenware 10PCS
>> Raw Material Non-Woven Fabric Stitch Bonded Nonwoven Fabric Embossed
>> Cotton Car Wash Cleaning Duster with Handle
>> Corn Harvesting Machinery Corn Header Combine Harvester Axial Flow Large/ Small Tank Harvester
>> Konica Minolta Bizhub C558 A3 Laser Large Compound Color Printer and Photocopy Copier Machine
>> High Efficiency Drum Wood Chipper MSW Organic Construction Decoration Landfill Waste Shredder
>> Diesel Self-Propelled Aerial Work Vehicle 14-45m Articulated Boom Lift Work Platform
>> 17670-65D00 For SUZUKI Engine Cooling system Thermostat 17670-65D00
>> China Manufacture 1-2t/H Output Waste Paper Crusher Machine for Sale
