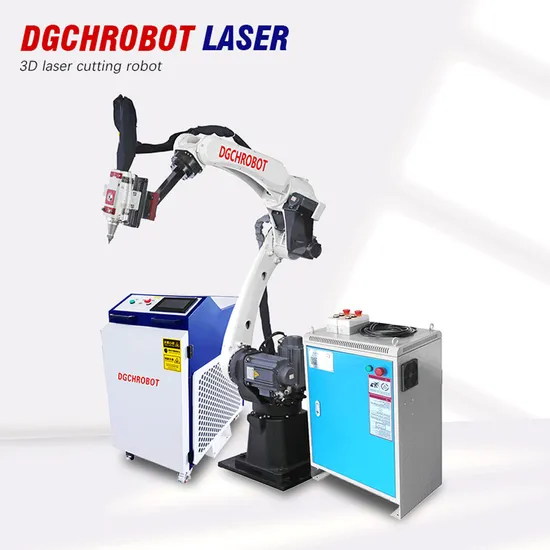

Small Automatic 3D 6 Axis Robot Arm Laser Metal Cutting Machine

Product Description

Product Description
Advantages:
1. Our company has been researching and developing fiber optic cutting technology for many years, and has advanced levels of laser cutting, which can achieve maximum automation in production.
2. 6-axis coordination, large working area, capable of remote operation, and can perform cutting and processing along three-dimensional trajectories in the workspace.
3. The processing speed and position can be adjusted to achieve optimal manufacturing accuracy for high output.
4. Low noise, long daily maintenance intervals, and long service life.
5. The robot arm can be controlled through a handheld terminal.
6. High configuration laser head with high sensitivity and precision, working in conjunction with robots to avoid laser head impact on raw materials, ensuring focus position and cutting quality.

Application:
3D laser cutting robots are particularly suitable for cutting various uneven metal pipes and sheet metal, suitable for automatic cutting in the automotive industry, mold manufacturing, kitchen utensils, metal products, etc., and can achieve multi angle cutting. Applicable materials: stainless steel, carbon steel, aluminum, brass, copper, galvanized steel, copper, etc.
Product Parameters
Technical parameter

Model	CH-1500MR10	CH-2000MR12
Radius of motion	1500mm	2000mm
Number of axis	6 Axis
Payload	12kg
Degree of protection	J1,J2:IP56 ; J3,J4,J5,J6:IP67
Power capacity	4.5KVA
Input/Output signal	Standard 16 in/16 out 24VDC
Robot weight	176kg	186kg
Repetitive positioning accuracy	±0.05
Range of motion
1 Axis S	±160°
2 Axis L	+80°-145°
3 Axis U	+145°-75°
4 Axis R	±190°
5 Axis B	+50°-210°
6 Axis T	±220°
Motion speed
1 Axis S	209°/s	179°/s
2 Axis L	199°/s	179°/s
3 Axis U	209°/s	162°/s
4 Axis R	314°/s	315°/s
5 Axis B	272°/s	276°/s
6 Axis T	353°/s	356°/s
4 Axis R(N.m)	103.5	88.5
5 Axis S(N.m)	51.84	45.52
6 Axis T(N.m)	32.64	32.64
Built in air pipe	Ф 10
Installation method	Ground,arm hanging,tilting,upside down
Installation environment	Temperature 0-45ºC, humidity 20-80% RH (no frost), vibration acceleration below 4.9m/s (0.5G), altitutde below 1000m Others (no igniting and corrosive gas, liquid, no splashing water, little oil, dust, far away from electromagnetic source)

Company Profile
FAQ
1.Can the machine be customized to my requirements?
Absolutely. Our skilled technical team excels in tailoring solutions to meet your specific needs, with a steadfast commitment to achieving customer satisfaction.

2.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. Encountering a problem, reach out to us for a prompt and effective solution.

3. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For further discussion, it is better to contact us with WhatsApp / WeChat / Email / Phone, in case of any delays.

4.Can we visit your factory?
Yes,of course,warmly weclome.

5.How long about your lead time?
Our product preparation time is about 7~15 working days.If We have product in stock,we can send out immediately.

6.What ahout the method of delivery?
Customer can arrange their own freight forwarder to pick up goods from factory. Or we can help arrange goods pick up to customer side directly.
We have serviced more than 20+ countries customer, have enough experience and profession to service customer satisfy.
