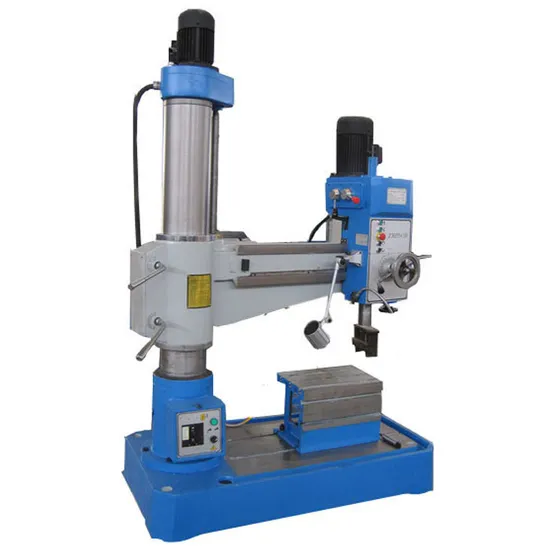

High Precision Metal Radial Drilling Machine (Z3035X10)

Product Description

Product Description
Feature:
Optimum design conforming to international standard.
Key precisely machined parts precision machining
Flexible reliable; Perfect feature.
High precision, High strength.
Economical cutting and Long life.
Functions: Drilling, counter boring, reaming, boring, spotting, tapping.

Product Parameters

(Z3035x10) Radial Drilling Machine Price Model	Z3032×9	Z3035×10
Max drilling capacity	Cast Iron 32/Steel 25	Cast Iron 35/Steel 32
Spindle feeds		0.1,0.16,0.25
Spindle taper	MT4	MT4
Spindle speeds series	6	6
Distance spindle axis to column generating line	900-260	250-950
Distance spindle nose to working surface of base	1100-220	340-1000
Spindle travel	120	190
Overall size	1400×710×1880	1530×700×2100
Power of main motor	1.5/2.2	1.5/2.2
Motor power	0.55	2.2/0.75
Weight of machine	800	1100

Advantage:
1. Gather mechanical-electrical-hydraulic functions, use extensively.
2. With wide range of speed and feed, with manual, power and fine feeds.
3. The feed of machines are very easily engaged and disengagedat any time.
4. With safe and reliable feed safety machine, all parts easy operation and change.
5. All controls centralized on the head stock easy operation and change.
6. Clamping for assembli-es and speed change of spindle achieved by hydroulic power, cmle is sensitna owet nelile.
7. Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
8. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
9. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
10. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.

Standard accessories:
* Box shape worktable
* Taper sleeve
* Tool releasing Wrench
* Drift
* Eyelet bolts

Special accessories:Extra cost
* Quick instead chuck
* Tapping chuck
* Grease gun
