3100kVA Step up Voltage Transformer for Solar Plant PV System

Product Description

3100kVA Step up Voltage Transformer for Solar Plant PV System
Product DescriptionGeneral
This design from TAILI of Solar step up transformer is critical component in solar energy distribution syste.It plays an important role from non-renewable sources,its step up voltage which produced by the solar inverters,and output power of photovoltaic power generation system with uncontinuous sunshine intensity and duration makes it necessary to bare the constant loading and dampened reaction process.
Standard and Features
1.The step - up voltage transformer for solar PV systems is designed according to project requirements and in compliance with IEC standards. Local electric authorities may adopt IEC standards and also develop their own to meet local needs and regulations.
2.Lower loss,lower noise,lower partial discharge and excellent dynamic thermal stability.
3.Excellent overload capacity with long term operation under 110% load.
4.Energy conservation,compact size,running economically and free for maintenance.
Service condition
1.Ambient temperature: Maximum +40ºC,Minimum temperature -25ºC.
2. Humidity: daily average no higher than 95% ,monthly average no higher than 90%.
3.Altitude: less than 1500 meters.
4.Seismic level: less than 3m/s2 at horizontal direction and less than 1.5m/s² at vertical direction.
5.Max wind speed: 35M/s.
- Installation environment: No obvious and heavy pollution,no explosive and corrosive gas and dust,with good air ventilation and no severe vibration and shock.
StructureCore
It is the magnetic core of the transformer, usually made of silicon - steel sheets with high magnetic conductivity. The silicon - steel sheets are stacked to form the core, which provides a path for the magnetic flux and ensures a uniform distribution of the magnetic field, improving the conversion efficiency.
The oil conservator
It has several functions and advantages. It adjusts the oil volume, reduces oil oxidation and moisture absorption, protects the transformer insulation, and enables the installation of protection devices. It can extend the transformer's service life, improve operation reliability, facilitate maintenance and monitoring, and adapt to different environmental conditions.The oil tank

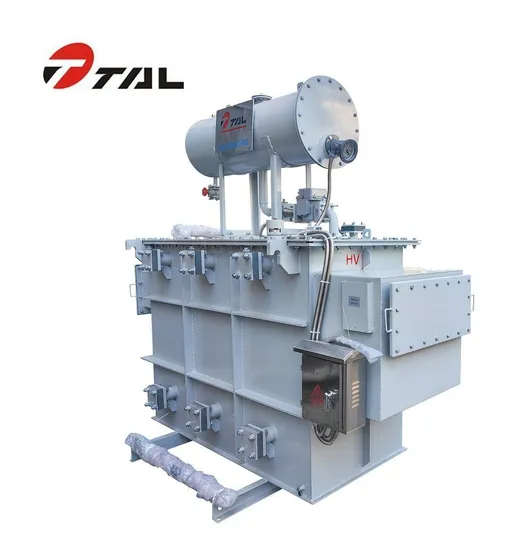

It serves to hold insulating oil. This oil plays a dual role in insulation and cooling. Its advantage lies in providing reliable electrical insulation, preventing short - circuits. Also, it effectively dissipates heat generated during operation, ensuring stable and long - term performance of the transformer. Product pictures
Product ParametersPerformance parameters for reference
(The value can be customized according to customer's local demand!)
Drawing and dimensions
WorkShopWorkshop
Packaging & ShippingProduct for delivery
More productMore Product
https://tldq5978.en.made-in-china.com
Ex-factory Quality AssuranceRoutine test:Measurement of winding resistance,Measurement of voltage ratio,Check of vector group,Mesurement of impendance voltage and load loss,Measurement of no load loss and current,Separate-source voltage withstand test,Induced overvoltage withstand test,Dimension checkingType tests:Lighting impulase test,Temperature rise testSpecial tests:The company is accelerating the cultivation and development of productivity, and creating high-level intelligent production. Company ProfileKnow More About Our Company
Define-TAILI
Total Solution is how we define "TAILI". From design & customization, engineering, manufacturing installation, and after sale service. TAILI provides a Total Solution to our customers helping and supporting to give them a competitive advantage in their market.
TAILI founded in 1988,is one of the largest and most respected manufactures of MV power distribution products in WENZHOU of China, the "Electric Industry Center" of China.We have factories for manufacturing, research &development, and distribution of products: Transformers, Indoor&outdoor switches, Switchgears, Power substations, and electric components for transformer and switchgears.
Our mission at TAILI is to provide the highest quality products at the best possible price. And by doing so, to provide and unmatched customer experience and actively to establish long-term cooperative relationship with our new and old customers.
Our Advantages
Design Ability: Our design team can combine the needs of customers from East Europe, Africa, South America, the Middle East, Southeast Asia and other countries to customize transformers for different local market demand. As a Chinese manufacture with more than 25 years' experience We can produce transformer with European quality at a very competitive price, and perfect replacement of imported products from Europe, so that users can use high-quality power products with the lowest cost to get more advantage in their market.
Efficiently Service: With 15 years of experience in electrical line, we are committed to providing comprehensive technical supports , design and customized solutions for our partners .And provide timely service for each step within 24 hours from design ,production, logistics, equipment installation ,to ensure clients with an efficiently and smooth operation of the projects! Partners recognition is the motivation and encouragement for us , we attach importance and persue to give one-stop service !
CertificationsCertification
ATTENTION
1.The payment term: We accept TT, with 30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15 - 20 days.
3.The standard of package: Usually use a strong plywood case for protection.
4.The material of transformer: We have two types. One is with copper and the other is with aluminum. It depends on your requirement. In fact, those two are different when they are working well. The only difference is in long - term use. Copper is better and also has a higher price.
5.The logo: If you have a large quantity, it is absolutely no problem to do OEM.
6.Our market: Our products are popular in Indonesia, the Philippines, Russia, the USA, the Middle East and so on. Some of the customers there are our regular customers and some are being developed. We hope you can join us and benefit mutually from our cooperation.
7.Warranty: within 12 months since the BL date.
FAQ
Q1: Are you a manufacturer or trading company?
A1: Yes, we are a manufacturer dedicated to designing customized products according to different country standards and the production of a wide range of high-quality transformers, switchgears, and power substations. Meanwhile, we can also provide relevant accessories and components with guaranteed quality from our branch factories. We improve the design to make our products more competitive in the market while maintaining better quality to ensure long-term performance.
Q2: How does your factory handle quality control and after-sales support?
A2: All the products will be 100% checked and tested before delivery. We also have an inspection team to make videos with customers online or send them via email. All our products comply with strict tests, ensuring easy maintenance. We also offer online after-sale service in case of any further problems.
Q3: When can I get the price?
A3: Usually we quote within 1 hour after we receive your inquiry. For customized products that need special design, we will quote within 12 hours with detailed specifications for confirmation.
Q4: Can you manage the delivery directly to our country under the DIP term?
A4: Yes, we have our own logistics company that helps to find a better solution for delivery, making the delivery time more punctual and at a lower cost.
Q5: Can I get a product guarantee after delivery?
A5: Yes, every product has a 2-3 year quality warranty under the condition that customers use the products correctly.
Q6. Do you have any certificates?
A6: Yes. Each of our products has CE, 3C and CQC certificates. If you need any other certificates, we can help you apply for them.
Q7: How can I pay you?
A7: Payment by T/T and L/C is acceptable.
