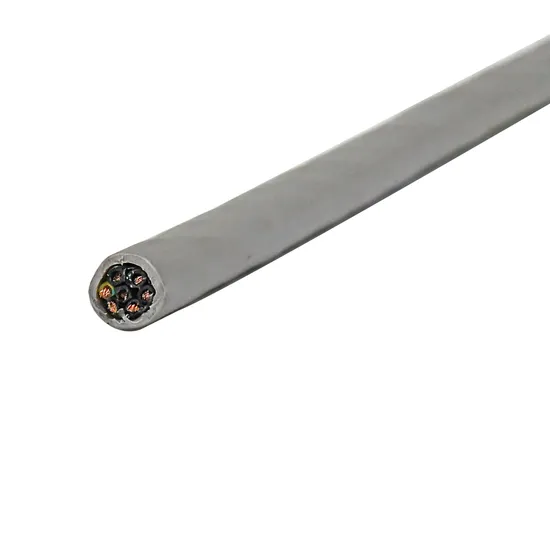

4 5 7 8 10 12 19 21 24 Cores Shielded Fire Resistant Flexible Multi Core Copper Flexible PVC Control Cable
| US$0.20-2.00 | 100 Meters (MOQ) |
Basic Info.
Model NO.
control cable
Insulation Material
PVC
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Copper
Certification
ISO, CCC, CE, VDE
Model
KVVP
Brand
Huadong
Product Name
Control Cables
Rated Voltage
450/750V, 0.6/1kv
Cores
2-61, 2-14, 2-10 Cores
Standards
IEC 60227, GB9330, BS, VDE
Warranty
100% Qualified
Sample
Available
Color
Black, Blue or Others
Price
Get Within 12 Hours
Transport Package
by Wooden Drum or Others
Specification
by meters
Trademark
huadong
Origin
China
HS Code
8544492100
Production Capacity
15 Million Km
Product Description
Product Description4 5 7 8 10 12 19 21 24 Cores Shielded Fire Resistant Flexible Multi Core Copper Wire Flexible PVC Control Cable
Rated Voltage : 450/750V,0.6/1KV
Model Type : KVV/KVVP/KVVP22/KVVP32/KVVRP
Conductor Material : Copper
nsulation Material : PVC/XLPE
Working Temperature : 0 °C to 70 °C
Standard : IEC 60227,GB9330,BS,VDE or other standards
Application : For interior electrical installation in a dry or wet environment, particularly for fixed and installation in the
industrial use of the environment without the stress of sustained-release or forcibly guided free on the continuous
reciprocating motion
Product Parameters:
| Type | Name | Application Site |
| KVV | Copper conductor PVC insulated and sheathed control cable | For laying indoors, in trenches, and in ducts for the fixed installation |
| KVVP | Copper conductor PVC insulated & sheathed copper wire braiding screened control cable | For laying indoors, in trenches, and in ducts for the fixed installation |
| KVVP2 | Copper conductor PVC insulated and sheathed control cable with steel tape shied | For laying indoors, in trenches, and in ducts for the fixed installation |
| KVV22 | Copper conductor PVC insulated and sheathed control cable with steel tape armoured | For laying indoors, in trenches, in ducts and in ground, able to with stand heavier mechanical force and for fixed installation |
| KVVR | Copper conductor PVC insulated flexible control cable | For laying indoors, movable and flexible |
| ZR-KVVP | Copper conductor PVC insulated & sheathed copper wire braiding screened flexible control cable | Fixed laying indoors with capability of moving and screening |
| ZR-KVV | Copper conductor PVC insulated and sheathed flame retardant control cable | For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance |
| ZR-KVVP2 | Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield | For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance |
| ZR-KVV22 | Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armoured | For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardance and able to bear beavier extermal mechanical force and for fixed installation |
| ZR-KVVR | Copper conductor PVC insulated and sheathed flame retardant flexible control cable | For laying indoors, and the cable should be flame-retardant flexible and movable |
Company Profile
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
Certifications
Packaging & Shipping
Cooperative Customers
