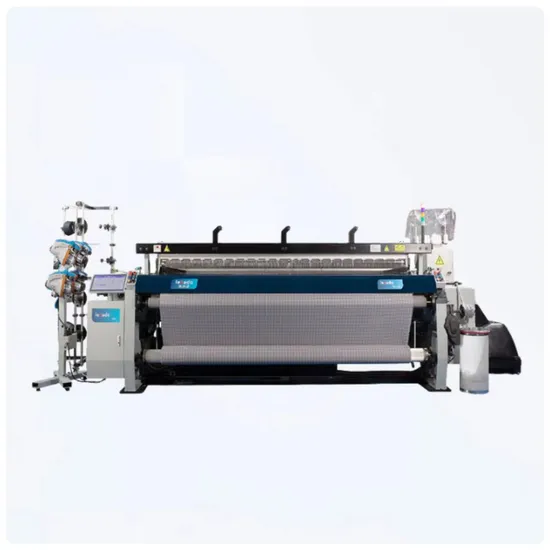

Lenado Tn-I High-Speed and High-Effective Air-Jet Dobby Weaving Loom

Product Description

SPECIFICATIONS
Effective width	190,220,230,250,260,280,340,360,400cm
Effective width reduction	190cm: at least 70cm
	220 and 250cm:at least 90cm
	280,340,360and400cm:at least 96cm
Weft color selection	Up to 8 colors
	Double or multiple weft insertion
Weft feeder	Adjacent yarn loops
	Separating yarn loops
	Automatic switch function of weft feeder
Positive weft tensor	Programmable weft tensor
	Balloon limitor
Weft detection	Electronic weft scissors,each Channel can set the cutting time separately
	Yarn change detector
	Fixed and oscillating main nozzle
	Auxiliary nozzle
	Lenado's knot removal decive
Beam	800,914,1000,1100mm
Back-beater	Universal type with built-in warp tension sensor
	Stable mechanism
Stop device	6 electonic drop bars
	25mm pitch or 8 drop bars
	16mm pitch detection strip by strip
Take-up device	Roll diameter
	Direct take-up by pressing rollers
Main motor	The main motor directly drives the loom
	Intelligent frequency conversion control vehicle speed
Reed movement	Conjugate cam,with cam follower
Shedding	Positive dobby shedding for up to 16 shafts heald frame
	Positive cam shedding for up to 8 to 10 heald frames
	Cam mechanism with automatic levelling function
	Heald frames for 330mm(13 o'clock) heald wire

Lenado Tn-I Technical Air Jet Loom
Type: air jet loomVoltage: 380vComputerized: ComputerizedPrecision: High PrecisionCertification: ISO9001:2000Warranty: 1 Year

Advantages:

Lenado TN-i 190 high speed towel rapier loom running in high speed and can used for wide yarn woven, it is suitable for weaving all kinds of terry towel products. This model loom has many adventages, some like below:
1. Uitra-high level of digitization:The advanced 15 o'clock interactive color display is a new platform that can meet al needs and applications.2. Reliable electronic control platform:The SmartBox electronic control platform takes its flexibility and reliability even further. Data. collection and data access provide a whole new level of assurance for increased productivity.3. Electric filter oil supply system:The unique electric filter oil supply system ensures the cleaning and lubrication of the loom under high-speed weaving, and prolongs the service life of the beating unit.4. Stability required to optimize air consumptionWith the patented air bag design and the optimization of the auxiliary nozzle spacing, the weft insertion stability has been raised to a higher level. This minimises air consumption without compromising fabric quality and machine shutdown levels. 5. Stability required to optimize air consumptionWith the patented air bag design and the optimization of the auxiliary nozzle spacing, the weft insertion stability has been raised to a higher level. This minimises air consumption without compromising fabric quality and machine shutdown levels. 6.Most energy efficient main driveThe variable frequency motor Super Motor, used by Lenade is the most advanced and energy-saving drive concept. As an integrated system design, it achieves the lowest possible energy consumption, while also providing many other advantages, such as full range speed control, slow motion, weft finding and other functions.
