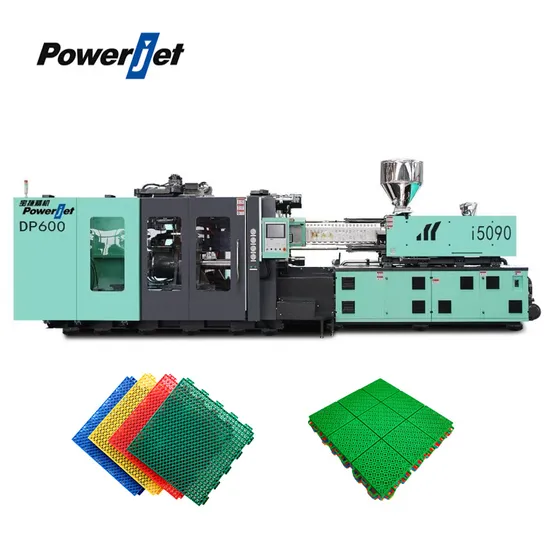

Plastic Injection Machine 600ton Plastic Floor for Basketball Spots Court Injection Molding Machine Price

Product Description

Details Images
High Efficiency
Low Energy Consumption
More Dedicated


The high-pressure clamping adopts movable platen clamping structure, which is fixed by a high-pressure tie bar, which is reliable in sealing, does not leak oil, and the tie bar is durable.


The ejector cylinder contains a converted structure, which ensures the whole machine more short and occupy less space.

Innovative holding brake structure, adjusting the holding brake with high speed and reliability, low noise and accurate synchronization.

Four independent high-pressure oil cylinders innovative structure for quick and stable pressure rising and releasing, easy maintenance.
Large mold opening stroke, high-speed and stable mold opening and closing, high efficiency.

Ultra-wide space of the mold clamping area, large core pulling space and easy operation.

The mold clamping unit is automatically lubricated with grease, clean, low maintenance cost, simple and convenient.
The movable platen adopts linear guider with low resistance, low energy consumption, stable moving and accurate positioning.

Equipped with servo electric charging, high speed rotate, low noise, low energy consumption, compared with traditional hydraulic motor charging, saving power cost more than 30%.

Product Paramenters

DESCRIPTION	UNIT	DP600-S6
Intemational size rating			5090-600
Clmping force	KN	6000
Opening Stroke	mm	1450/850
Space btw.Tie Bars	mm	960×860
Daylight Max.	mm	1800
Mold Thickness(min-max)	mm	350-950
Ejection Stroke	mm	250
Ejector Force	KN	166
Screw Diameter	mm	100
Short Volume	cm3	3691
Shot Weight(PS)	g	3359
Injection rate	g/s	849
Injection Pressure	MPa	138
Screw L/D Ratio	L/d	20
Injection Stroke	mm	470
Screw Rotary Speed max.	rpm	145
Nozzle Contact Force	KN	200
Nozzle Stroke	mm	600
System Pressure	MPa	17.5
Pump Motor	KW	52+42
Heating Capacity	KW	47
Oil Tank Capacity	L	1000
Machine Dimensions	m	7.9*3*2.7
Machine Weight	T	25
