Single Step Automatic LED Lamp Injection Blow Molding Machine

Product Description

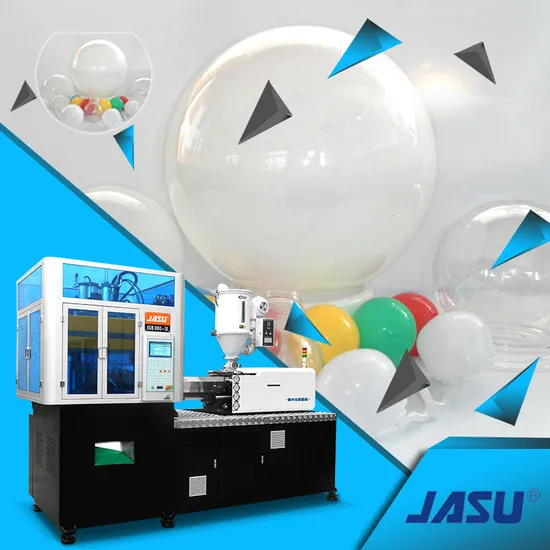

JASU Factory One Step INJECTION STRETCH BLOW MOLDING MACHINE ISB800-3

ISB800-3 Main Specification		Main Devices Brand
Material	PC,PP,PET,TRITAN, PMMA,PS	Servo Motor and Oil Pump	Phase (Italy) and Eckerle (Germany)
Screw Diameter	40mm	Sealing Parts	Yuken(Japan), TAIWAN
Screw L/D Ratio	20.5:1	Hydraulic Valve	Yuken(Japan), TAIWAN
Screw Speed	0-190	Air Valve	AirTAC
Theoretical Injection cavity	238cm3	Air Cylinder	AirTAC
Injection Pressure	174Mp	Controller (PC)	JASU, TAIWAN
Max.hydraulic Pressure	140kg/cm	Photosensor	Carlo,China
The actual injection quantity	225g(ps),8Oz	Safety delay	Schneider (ShangHai
Screw Stroke	190mm	Servo Motor for Turntable	TECO, Taiwan
Blow Clamping Force	80kn	Gear Reducer	SESAME, Taiwan
Clamp Tonnage	400kn	Low-voltage components	Joint Venture
Wheel Diameter	800mm	Hydraulic hose	China
Max.Height Of Bottle	15-150mm	F.R.L	China
Open Vertical Mode Trip	430mm	Hydraulic joint	China
Max.Pump Pressure	16Mpa	Blowing valve	AirTAC(TaiWan)
Servo Motor	22kw	Low-pressure cylinder	AirTAC(TaiWan)
Electric power	8.9kw	low-pressure valve	AirTAC(TaiWan)
Tank volume	400L	PLC	JASU(TaiWan
Dimension of Machine	3.8*1.45*3.0m	Air switch	Schneider(Shanghai)
Machine Weight	5T	Display screen	JASU(TaiWan)

JASU injection blow molding machine advantage:
1)Electrical motor and pneumatic drive,avoid hydraulic dirty product.
2) Full automatic control ,easy operation.
3) material barrel and hot runner temperature control accurately.
4) save more cost than traditional machine.
5) compact structure.
6) Injection:
Hot runner and temperature control device and standard configuration only change mold to make a new product.
Blow:
Hydraulic mold clamping,core insert,blow and bottom molding are standard configuration.
Product release :Ejector is a standard device
Jasu injection stretch blowing mould
Gauangzhou Jasu Precision Machinery Co.Ltd is a sabusidiary of JASU International Machinery Group locates in Guangzhou China, which is top 3 supplier of CNC machine tools in South China. JASU owns R&D center and factories in Guangzhou and Suzhou. JASU has been dedicated to manufacturing CNC lathe, machining center, Gantry CNC milling machine and machine tool accessories for 20 years.
Absorbing the design and manufacture of Taiwan and Germany, JASU create a series of highly distinctive, automatic and
cost-effective CNC Machine Tools, machine accessory and one step Injection (Stretch) Blow Molding Machine. JASU has got
high reputation and trust among customers by means of modern management method, perfect quality, novel design and
reasonable price.
Our company faith is "better and faster, it is JASU". We are engaged in providing machines with high quality and best service
to create benefit for enterprise and create value for customer.
JASU group
http://membercenter.made-in-china.com/showroommanage.do?xcase=index
FAQ
Q1: What is the ability of your factory?
A1: About blow molding machine, we could produce 30 sets machine per month.
Q2: Do you have any technical supports about your products?
A2: We have had long term collaboration with German, and we have a lot of cooperation with a lot of advanced manufacture company on the world.
Q3: Do you have any other service about your products?
A3:We have a lot of experience on making complete "Turn-Key" projects and specifications for our clients. Also we have a fixed service system
Q4: All of your products are made by your self or compacted via purchasing the others?
A4: We have independent technical team who focus on making machines; all the products are made by our technical team.
