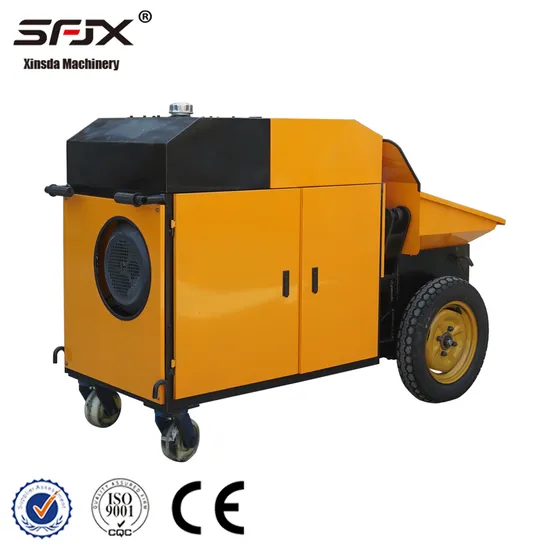

Small High Pressure Secondary Concrete Transport Pump for Construction
Basic Info.
Model NO.
JS15
Type
Concrete Pump
Certification
CE
Condition
New
Color
Orange
Motor
15kw
Weight
700kg
Max Aggregate Size
20mm
Work Efficiency
6-8m3;/H
Transport Package
Carton
Specification
JS15
Trademark
SFJX
Origin
Henan
HS Code
8479109000
Production Capacity
1000PCS/Month
Packaging & Delivery
Package Size
178.00cm * 83.00cm * 138.00cm
Package Gross Weight
550.000kg
Product Description
Product Description| Work efficiency | 6-8m³/h |
| Power | 15kw |
| weight | 700kg |
| Max Aggregate Size | 20mm |
| Diameter of Pipe | 800mm |
| Vertical Distance | 20m |
| Horizontal Distance | 60m |
| Bore/Stroke | 120/400mm |
Application:
This machine is widely used in high-rise building mortar and fine aggregate concrete pumping, secondary structural column grouting, reservoirs, hydropower stations, ports, docks in a variety of pressure grouting, foundation treatment, soft foundation, grouting, tunnels, backfill grouting bolt support in mine construction. Secondary structural column irrigation, and slope spray anchor support. Characteristics :
The use of S-tube distribution valve to convey the small aggregate concrete, mortar etc. Main pump uses deformation piston pump, high efficiency, strong pressure. Hydraulic system uses an independent three-loop control, high reliability glasses panel, cutting ring uses carbide, wear-resistant, long life. Pumping mechanism uses dual-piston, advanced performance, good continuity.
Company Profile
Certifications
FAQ
Q1: Are you a manufacturer?
A1:Yes, we have been offering specialized products in this field for 22 years.
Q2:How do you pack these products?
A2:Usually packed according to export standard or your requirement.
Q3:Is it customizable?
A3:Yes, according to your requirements.
Q4: After-sales service
A4:24-hour technical support by phone, email .
Q5:What is your lead time?
A5:Spot goods usually take 7-10 days, and customization takes 15-25 days
