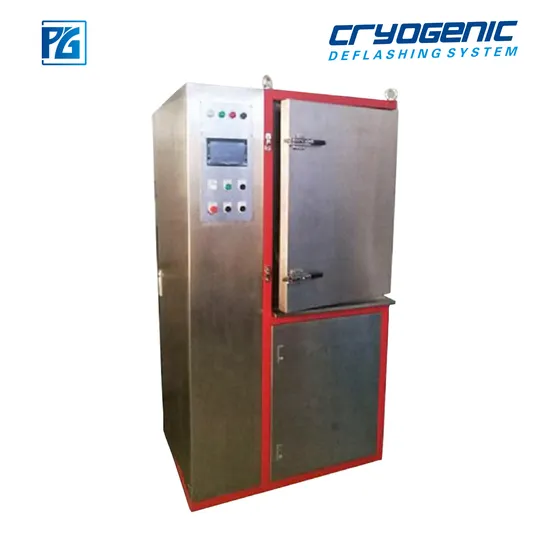

Cryogenic Deburring/Deflashing Machine for Rubber, Plastic and Die-Casting Parts Deflashing

Product Description

Cryogenic Deflashing Machine Product and Company Introduction
Cryogenic deflashing machines are known for its precise quality de-flashed parts with up to 95% performance output without affecting the final part dimension and shape from small O-rings to big molded parts.
These Machines serve the need for Rubber, Metal-Rubber parts, small precision plastic parts and small die-casting parts like Zinc and Magnesium alloy.
rubber deflashing machine, Rubber Deflashing machine supplier in China, O ring Deflasing machine supplier in China,Deflashing machine supplier in China, Liquid Nitrogen Cryogenic Deflashing machine supplier in China
Production Description
Specifications

Mode	PG-20T	PG-60T	PG-80T	PG-100T	PG-120T	PG-150T
Capacity	20Liter	60Liter	80Liter	100Liter	120Liter	`150Liter
Wheel size	250mm	250mm	300mm	300mm	350mm	350mm
Speed Rpm/min	3000-7200	3000-7200	3000-7000	3000-6000	3000-7000	3000-7000

Working Principle of Rubber Deflashing Machine
With the decrease of the temperature, rubber/plastic parts enter into hardened, brittle, and crystallized process, its flexibility is gradually lost. It is easily broken by external force when it is under brittle temperature. Flash of the molded products is generally much thinner than finished product itself, it become brittle earlier than product in the low temperature. Cryogenic deflashing machine applies this principle, works in the time range when flash is brittle while products still keeps its flexibility, hit the flashes by high speed projected special plastic media, clear out the brittle burr. The flashes can be easily removed, and the product not be damaged.
Product Feature
FUNCTIONS of cryogenic trimming machine
Our machine is widely used in removing the flashed of small rubber and plastic parts like O-rings, gaskets and other molded parts.
With the cryogenic processing technology, the flashes are firstly freeze and then shot down the high-speed projection media (Polycarbonate blast). The surface quality of molded rubber and plastic rubber parts can be improved greatly.
Product Specification / Models
APPLICATIONS of cryogenic deflashing machine
A. O rings, irregular rubber parts with different material and sizes.
B. Micro electronic product parts
C. Precision elastomeric parts
D. Precision injection moulding plastic parts
E. R & D part runs
F. Die casting products, like zinc aluminum, magnesium alloy
FEATURES of cryogenic deburring machine
High efficiency: The machine can replace about 60-80 worker to removing the flashes.
High precision: It can remove small and hardened flashes which cannot be removed by handworkers and improve precision of the products.
Low cost: It also has a feature of lower cost comparing with processing the parts by handworkers.
Our factory and Workshop
Nanjing Pege Techno Machine Co.,Ltd production plant is located in the No.9 Ankang road, Guli Industriall Zone, Jiangning District, Nanjing.
We have professional production workers and process, are determing to product best product for the customer all over the world
Packing and Transportation
The machine produced by Nanjing Pege is well packed by polywood carton suitable for long distance sea transpotation to ensure machine safety and performance.
We can help csutomer to arrange the transportation by the terms of FOB, CIF with land or sea transportation methods according to the resuqest from the customer.
