High Precision Bench Lathe Turning Machine for Thread Cutting

Product Description

Main features:
1.2 Axis digital readout system
2.Quick change toolpost with 5 holders
3.Concertina leadscrew cover
4.Gear drive headstock for quick change of spindle speeds
5.Precision V-beds are hardened and ground, incorporating a rigid webbed casting
6.Foot operated spindle brake with safety cut out switch
7.Change gears for metric and imperial thread cutting
8.Adjustable taper roller bearings support the spindle
9.Inching button is incorporated on the control panel for convenient spindle speed selection
10.Enclosed quick action gearbox for thread cutting and auto feeding
11.Powered longitudinal and cross feeds
12.D1-5 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
13.Removable gap bed-way for larger diameter jobs
Specification:

Swing Over Bed	mm	360
Height of Center	mm	180
Swing Over Cross Slide	mm	224
Swing Over Gap	mm	502
Width of Bed	mm	187
Distance Between Centers	mm	1000
Max.Turning Length	mm	1000
Cross Slide Travel	mm	170
Top Slide Travel	mm	95
Spindle Speeds	steps	8
Spindle Speed Range	RPM	70-2000
Spindle Bore	mm	52
Spindle Nose		D1-5
Taper of Spindle Bore		MT5#
Thread - Standard (Whit-worth)		34 Nos.4-56T.P.I
Thread - Metric Pitch		26 Nos.0.4-7mm pitch
Longitudinal Feed		32 Nos.0.052-0.392mm/Rev
Cross Feed		32 Nos.0.014-0.380mm/Rev
Quill Travel	mm	100
Quill Diameter	mm	52
Quill Bore Taper		MT4#
Power Supply		380~400Voltage, 3Phase, 50Hz
Main Motor	KW	1.5
Coolant Pump Motor	W	40
Machine weight		540 kg
Packing weight		645 kg

Standard Accessories:
1. Three jaw Chuck
2. Four Jaw Chuck
3. Face Plates
4. Steady Rest
5. Follow Rest
6.Coolant system
7. working light
8. Operation Manual
9. Foot brake system
10. Dead center
Optional Accessories:
1. 3-AXIS DRO
2. CE electrical components+leadscrew cover+chuck cover
3. Quick change tool post
4. Live center MT4#
5. Tool post cover

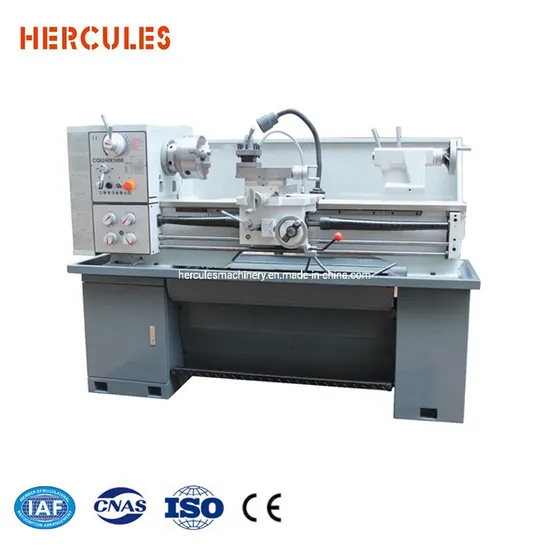

Machine Image and details:
