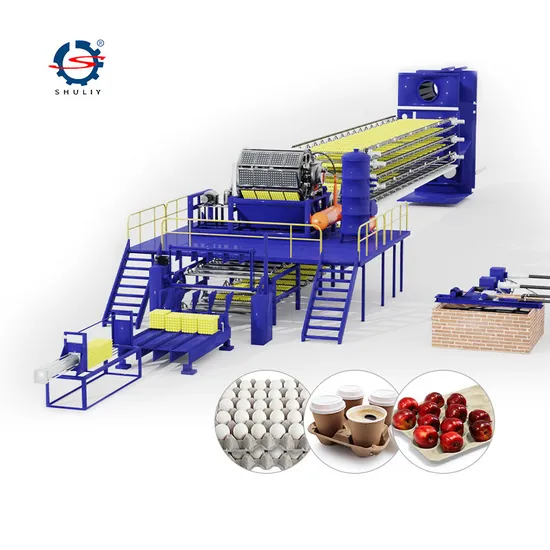

Paper Pulp Egg Tray Production Line 6 Eggd Box Forming Machine

Product Description

Paper Pulp Egg Tray Production Line 6 Eggd Box Forming Machine Product Description
Processing flow of paper egg tray production line: Step 1: Put the prepared raw materials,such as waste paper carton,newspaper etc into hydrapulper,
making paper pulp by the shear force and friction force of water,transfer the prepared paper pulp into
pulp pool. Step 2: Transfer the paper pulp into mixing pool 1,filtering the impurities out of paper pulp at the same time,adjusting the concentration of the pulp. Step 3: Transfer the paper pulp which in mixing pool 1 into mixing 2 for second mixing.Now you can
add such as color agent,waterproof and so on materials by your needs,stirred sufficiently. Stept 4: Pumping the prepared paper pulp from mixing pool 2 by pulp pump into molding machine,
then the mold on the top sink into paper pulp completely,under the pumping action of the mold which
has vacuum action in the back,pulp is adsorbed on the surface of the mold,at the same time,water in the
pulp is pumped out,then the wet paper tray was formed on the surface of the mold. Step 5: When the molding machine working,the water in the pulp will pumped out by the vacuum pump,then discharging the waste water into waste water pool. Step 6: Waste water in the waste water can be recycling used.Transfer the waster into hydrapulper and mixing pool by waster paper pump to recycled used. Step 7: Dying,the wet paper tray on the mold is about 2.5mm thickness and contain 75% moisture,then
send the wet paper tray into dryer(120-180ºC). Stept 8: Packaging the final paper egg tray into warehouse
Product Parameters

Model	SL-3*1	SL-4*1	SL-3*4	SL-4*4	SL-3*8	SL-4*8	SL-5*8
Capacity	1000pcs/h	1500pcs/h	2000pcs/h	2500pcs/h	3000pcs/h	4000pcs/h	5000pcs/h
Total Power	32kw	40kw	65kw	82kw	95kw	112kw	121kw
Paper Consumption	80kg/h	120kg/h	160kg/h	200kg/h	240kg/h	320kg/h	400kg/h
Water Consumption	160kg/h	240kg/h	320kg/h	400kg/h	480kg/h	640kg/h	800kg/h
Electric Consumption	18kw/h	32kw/h	45kw/h	58kw/h	65kw/h	78kw/h	95kw/h
Worker	3-4	3-4	4-5	4-5	5-6	3-4	3-4

FAQ 1. Can the egg tray machine make other trays of different specifications?
A.Yes, as long as the abrasive tools are customized according to customer requirements.2.What are the materials of the abrasive tools?A.The egg tray mill is made of aluminum and plastic, and the net is stainless steel. If you make special-shaped abrasive tools, they must be aluminum abrasive tools.3. Can you make egg trays of different colors?A.Yes, just add different pigments in the slurry tank.4. What output of machines do you provide?A.The output of our machine ranges from 1000pcs/h to 5000pcs/h, which can fully meet your needs.5. Is the mold of the machine fixed?A.We can customize the mold according to your requirements.6. What is the ratio of paper to water in the pulper?A. 1:57. How many pools does the customer need to build during the installation process?A.3 (homogenization tank, slurry supply tank, storage tank)8. How many meters does the brick kiln dry?A.The machine with a 1,000-piece output is 25m, and the large output is generally 40-50m
