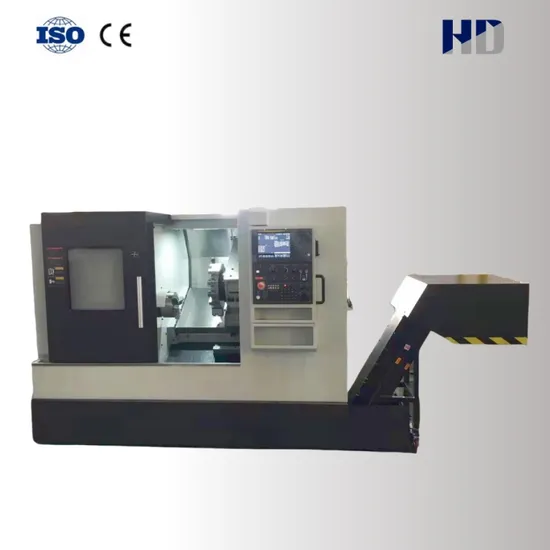

Precision 3-Axis CNC Torno Slant Bed CNC Turning Lathe Machine
Basic Info.
Model NO.
EL280
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Over Bed Diameter
650mm
Max.Swing Over Saddle
330mm
Max. Turning Diameter
450mm
Max. Turning Length
540mm
Spindle Motor Power
11/15kw
Spindle Max. Speed
3500rpm
Spindle Nose
A2-8
Through Hole Diameter
91
Bar Capacity
80
Hydraulic Chuck
10inch
X/Z/Y Axis Max. Travel
250 / 580mm
X/Z/Y Axis Motor Power
1.8 / 1.8kw
X/Z/Y Axis Rapid Speed
30/30m/Min
X/Z Guide Type
Linear Rail
Turret Capacity
12
Transport Package
Wooden Cases
Specification
2519x 1750 x 1695mm
Trademark
HAIDI
Origin
China
HS Code
8458110090
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
260.00cm * 180.00cm * 180.00cm
Package Gross Weight
3900.000kg
Product Description
Product PictureSpecification Parameter
| Items (FANUC 0I-TF) | Unit | EL200(L) | EL280(L) | EL200Y(L) | EL280Y(L) |
| Max. Swing over bed diameter | mm | Φ 650 | Φ 650 | Φ 650 | Φ 650 |
| Max.swing over saddle | mm | Φ330 | Φ330 | Φ330 | Φ330 |
| Max. Turning diameter | mm | Φ450 | Φ450 | Φ350 | Φ350 |
| Max. Turning length | mm | 570(720) | 540(690) | 500(650) | 470(620) |
| Spindle | |||||
| Spindle motor power ( continues / 30min ) | kw | 11/15 | 11/15 | 11/15 | 11/15 |
| Spindle max. speed | rpm | 4200 | 3500 | 4200 | 3500 |
| Spindle nose | / | A2-6 | A2-8 | A2-6 | A2-8 |
| Through hole dia. | mm | Φ76 | Φ91 | Φ76 | Φ91 |
| Bar capacity | mm | Φ 65 | Φ 80 | Φ 65 | Φ 80 |
| Hydraulic chuck | Inch | 8" | 10" | 8" | 10" |
| Feed axis | |||||
| X/Z/Y axis max. travel | mm | 250 / 580(730) | 250 / 580(730) | 250 / 543(690)/100 | 250 / 543(690)/100 |
| X/Z/Y axis motor power | kw | 1.8 / 1.8 | 1.8 / 1.8 | 3.0 / 1.8 / 3.0 | 3.0 / 1.8 / 3.0 |
| X/Z/Y axis rapid speed | m/min | 30/30 | 30/30 | 30/30/10 | 30/30/10 |
| X/Z guide type | / | Linear rail | Linear rail | Linear rail | Linear rail |
| C axis (option) | |||||
| Min. Spindle positioning accuracy | -- | -- | ± 0.001 ° | ± 0.001 ° | |
| Dynamic accuracy | -- | -- | ± 0.002 ° | ± 0.002 ° | |
| Turret type | |||||
| Turret capacity | 12 | 12 | 12 | 12 | |
| Square tools | mm | 25 | 25 | 25 | 25 |
| Circle tools | mm | Φ40 | Φ40 | Φ40 | Φ40 |
| Power turret motor | kw | -- | -- | 3.0 | 3.0 |
| Power turret | -- | -- | BMT55-ER32 | BMT55-ER32 | |
| Power tool speed | rpm | -- | -- | 4000 | 4000 |
| Tailstock | |||||
| Mandrel diameter | mm | Φ70 | Φ70 | Φ70 | Φ70 |
| Mandrel travel | mm | 150 | 150 | 150 | 150 |
| Tailstock body travel | mm | 460(610) | 460(610) | 460(610) | 460(610) |
| Taper hole taper | MT#5 | MT#5 | MT#5 | MT#5 | |
| Mandrel/tailstock control programmable | YES/NO | YES/NO | YES/NO | YES/NO | |
| Specification | |||||
| Positioning accuracy ( X/Z) | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Repeatability ( X/Z) | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| CNC control system | FANUC | FANUC | FANUC | FANUC | |
| Chip conveyor | Side type | Side type | Side type | Side type | |
| Machine dimension(L x W x H) | 2519x 1750 x 1695 mm | 2519x 1750 x 1695 mm | 3211x 1750 x 2207 mm | 3211x 1750 x 2207 mm | |
| Machine net weight | kg | 3700/4200 | 3900/4200 | 4500/5000 | 4700/5200 |
