Professional Manufacturing Rubber Sheet Splitting Machine

Product Description

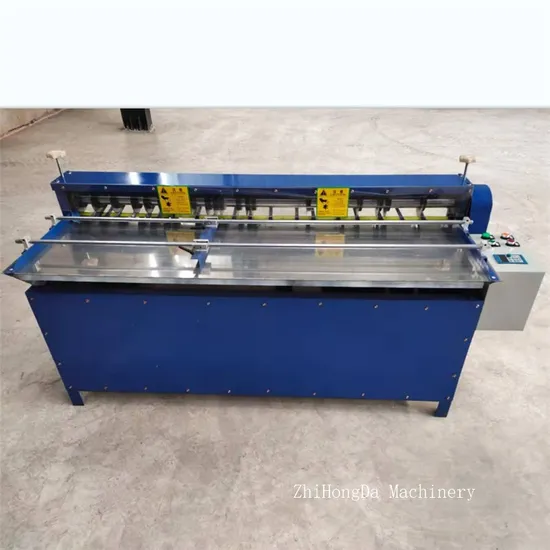

Rubber Sheet Splitting Machine
Name: Rubber Sheet Splitting Machine
Model: FTJ1600 adjustable blades
Descriptions
Rubber Sheet Splitting Machine is composed of circular cutter, cutter spindle, cutter bottom shaft, main power reduction all-in-one machine and other important modules.
It can cut all kinds of rubber materials and other non-metallic materials, high cutting precision, straight and beautiful blade.
Technical parameters

Working width	Cutter shaft	Motor power	Max. Cutting thickness	Control mode
1600mm	φ60mm	3.0KW Slow down a whole	25mm	Frequency control
Blade size	Blade material	Min.Slitting width	Cutting speed	Cutting tool structure
OD130mm Thickness 2mm	High speed steel 9255	20mm	Adjustable	Surrounded by type

Products pictures
The fine grinding shaft is assembled with the encircling-type knife apron, the cutting effect is very good, the knife edge is flat and straight, not deviating:
Assembly photo of knife and knife apron:
Features
1.Min.Slitting width 20mm, blades can be adjustable.
2.Rubber material hardness can be more than 70 shore A, can cut perfectly.
3.Encircling-type knife apron structure, the cutting effect is very well.
4.Blade material is high speed steel 9255, long service life.
Our service
1.More Professional service in rubber cutting machines exporting field
2.Better manufacture ability
3.High quality/Safe material/Competitive price
4.Small order available
5.Quickly response
6.More safe and fast transport
7.OEM design for all customers
