Elevator Food Grade Black Coreals Grain Truck Loading Screw Conveyor

Product Description

Xinxiang Zhongpanxin Industry Co.,Ltd
manufacturing Grain Lifting Suction Machine and liquid nitrogen container Cryogenic tanks located in Xinxiang City, China. We have two seperated workshop area and total work shop area is about 10,000 Squaremeters.We have over 18 years' production experience and export experience with a professional R&D team, inspection equipments and advanced techniques. Our products hold ISO 9001 certificate and CE certificate and are always used for tenders, plant, station, government projects. The delivery time and quality all can be guaranteed. Customization is accepted for bulk order according to customers' requirements.

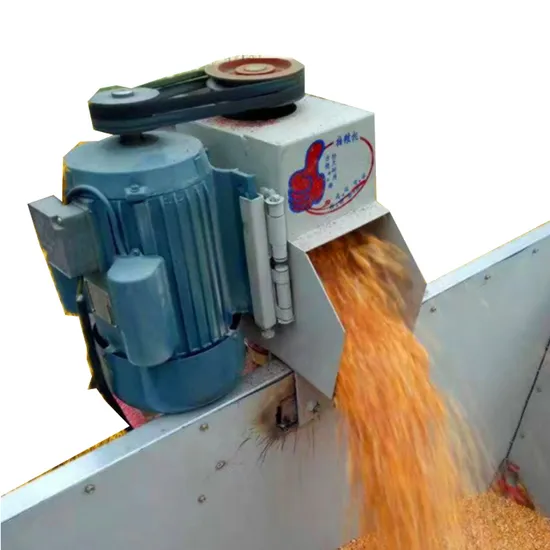

Small Grain Suction is a new designed for grain suction,entrucking,stack transfer and storage in village, It has the features of small area,light weight,easy movable,high efficiency and low rate of brokage.the small suction machine is widely used for many places with safety ,.such as individual farmer,grain professional farmers and agricultural cooperative.
In Farm machine line , we also accept conveyor transmission machine customized order.
Our containers are often used in livestock breeding for Lab, food, cattle farming, vets, medical, air condition, cryothorapy, Chemical (for sample, cells organ and semen storage), biological engineering, industrial cooling assembly,
cryogenic treatment of metallic materials, low-temperature superconductors.
After several years of hard efforts, products have been exported to global countries and regions include Russia, South Korea, Middle East, South America, Europe and Australia, won a good reputation in domestic and foreign market. Please contact for further discussion, we will provie quick response, best price and best services. Thank you for business!
Production Line: copper motor Enforced PU Dichotomanthes Pipe Exporting Conehead Thickened Hose Design
Specification Data:

Item No.	Main Configuration	Customizable Configuration (Pipe dia/Pipe Length/Motor Power)	Efficiency (Ton/Hour)	Height of lift (Meters)
1	Single Side pipe +Regular Motor	100mm/3m/3kw	6~ 8	2.50
2	Single Side pipe +Regular Motor	100mm/4m/3kw	6~ 8	2.50
3	Single Side pipe +Regular Motor	100mm/5m/3kw	6~ 8	3.00
4	Single Side pipe +Regular Motor	100mm/6m/3kw	6~ 8	3.00
5	Single Side pipe +Regular Motor	100mm/7m/3kw	6~ 8	3.00
6	Single Side pipe +Reinforcing Motor	100mm/8m/3kw	6~ 8	3.00
7	Single Side pipe +Reinforcing Motor	100mm/9m/3kw	6~ 8	3.00
8	Single Side pipe +Reinforcing Motor	100mm/10m/3kw	6~ 8	3.00
9	Single Side pipe +Reinforcing Motor	100mm/11m/3kw	6~ 8	3.00
10	Single Side pipe +Reinforcing Motor	100mm/12m/3kw	6~ 8	3.00
11	Single Side pipe +Regular Motor	120mm/4m/3kw	10~12	2.50
12	Single Side pipe +Regular Motor	120mm/5m/3kw	10~12	3.00
13	Single Side pipe +Regular Motor	120mm/6m/3kw	10~12	3.00
14	Single Side pipe +Regular Motor	120mm/7m/3kw	10~12	3.00
15	Single Side pipe +Reinforcing Motor	120mm/8m/3kw	10~12	3.00
16	Single Side pipe +Reinforcing Motor	120mm/9m/3kw	10~12	3.00
17	Single Side pipe +Reinforcing Motor	120mm/10m/3kw	10~12	3.00
18	Single Side pipe +Reinforcing Motor	120mm/11m/3kw	10~12	3.00
19	Single Side pipe +Reinforcing Motor	120mm/12m/3kw	10~12	3.00
20	Single Side pipe +Regular Motor	160mm/5m/4kw	17~22	3.00
21	Single Side pipe +Regular Motor	160mm/6m/4kw	17~22	3.50
22	Single Side pipe +Regular Motor	160mm/7m/4kw	17~22	3.50
23	Single Side pipe +Reinforcing Motor	160mm/8m/4kw	17~22	3.50
24	Single Side pipe +Reinforcing Motor	160mm/9m/4kw	17~22	3.50
25	Single Side pipe +Reinforcing Motor	160mm/10m/4kw	17~22	3.50
26	Single Side pipe +Reinforcing Motor	160mm/11m/4kw	17~22	3.50
27	Single Side pipe +Reinforcing Motor	160mm/12m/4kw	17~22	3.50
28	Double Side pipes +Reinforcing Motor	100mm/14m/5.5kw	6~8	8.00
29	Double Side pipes +Reinforcing Motor	100mm/16m/5.5kw	6~8	8.00
30	Double Side pipes +Reinforcing Motor	100mm/18m/5.5kw	6~8	8.00
31	Double Side pipes +Reinforcing Motor	100mm/20m/5.5kw	6~8	8.00
32	Double Side pipes +Reinforcing Motor	100mm/22m/5.5kw	6~8	8.00
33	Double Side pipes +Reinforcing Motor	100mm/24m/5.5kw	6~8	8.00
34	Double Side pipes +Reinforcing Motor	100mm/26m/5.5kw	6~8	8.00
35	Double Side pipes +Reinforcing Motor	120mm/14m/5.5kw	12~15	8.00
36	Double Side pipes +Reinforcing Motor	120mm/16m/5.5kw	12~15	8.00
37	Double Side pipes +Reinforcing Motor	120mm/18m/5.5kw	12~15	8.00
38	Double Side pipes +Reinforcing Motor	120mm/20m/5.5kw	12~15	8.00
39	Double Side pipes +Reinforcing Motor	120mm/22m/5.5kw	12~15	8.00
40	Double Side pipes +Reinforcing Motor	120mm/24m/5.5kw	12~15	8.00
41	Double Side pipes +Reinforcing Motor	120mm/26m/5.5kw	12~15	8.00
42	Double Side pipes +Reinforcing Motor	160mm/14m/7.5kw	20~25	8.00
43	Double Side pipes +Reinforcing Motor	160mm/16m/7.5kw	20~25	8.00
44	Double Side pipes +Reinforcing Motor	160mm/18m/7.5kw	20~25	8.00
45	Double Side pipes +Reinforcing Motor	160mm/20m/7.5kw	20~25	8.00
46	Double Side pipes +Reinforcing Motor	160mm/22m/7.5kw	20~25	8.00
47	Double Side pipes +Reinforcing Motor	160mm/24m/7.5kw	20~25	8.00
48	Double Side pipes +Reinforcing Motor	160mm/26m/7.5kw	20~25	8.00
Note: The Max.Length of Pipe is 35meters. And the machine's type is not limited to the above specification.

Grain Blower Pump Machinery Advantage:
Application (Suction Used Widely)
It can also be used on farms, feed factories, food factories, plastic factories and other places. Wheat, soybean, corn, rice, sorghum, plastic, resin,etc
Clients Visit Pictures:
Packing and Delivery :
