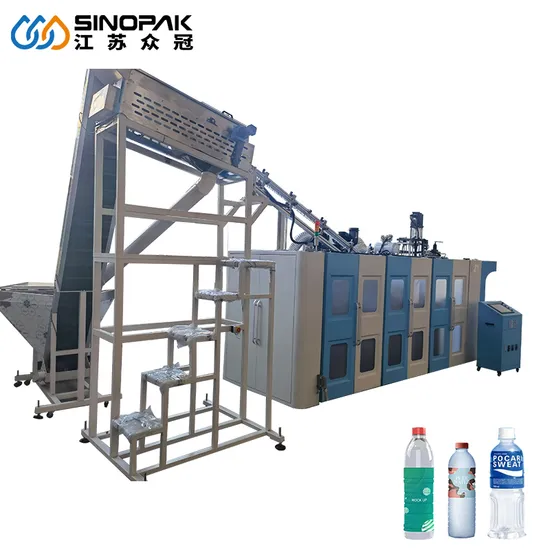

High Speed 12000bph 500ml 330ml 750ml Water CSD Juice Beverage Bottle Blowing Blower Molding Machine Pet Plastic Bottle Blowing Moulding Making Machine

Product Description

Main features
Introduction
Scope of application: suitable for water bottles,carbonated soft drink bottle,juice bottle, oil bottles, beverage bottles, sauce bottles, cosmetic bottles, disinfectant bottles, etc.
Linear latest technology new products, high production capacity, intelligent manufacturing, energy saving and other multi-faceted application solutions
Production capacity increased by 20%
Power consumption reduced by 50%
Gas consumption saved up to 30%
Compared with previous generation models
Features Larger production capacity
The all-electric energy-saving bottle blowing mechanism allows the machine to run stably at high speed and accurately position, and the bottom mold is linked to accurately control the preform molding. This series of PET bottle blowing machines cooperates with Siemens to allow 6-cavity production capacity to reach 18,000 bottles/hour, but the machine size is 20% smaller than the previous generation
Intelligent manufacturing, smart machines
This series of automatic intelligent production equipment can reduce manual operations, and at the same time, a number of intelligent designs allow uninterrupted and more efficient production, including: multiple safety protection devices to ensure smooth preform entry and continuity.
More efficient heating system
The use of enhanced high-power lamps increases the heating efficiency by 20%, and is equipped with a tooth cooling device to avoid molding deformation. The new generation of heating boxes can be flipped directly, greatly reducing the time for replacing lamps.
Easier to maintain sub-assembly design
The revolution system adopts a horizontal configuration without flipping the preform. The optimized body structure becomes easier to maintain than in the past, effectively reducing the cost of maintenance and parts replacement.
High efficiency and energy saving, reducing costs
The upgraded gas recovery device saves 30% of gas consumption compared to the previous generation of machines. Combined with the upgraded heating efficiency, the machine power consumption is reduced by 50%, significantly reducing production costs.
Technical Parameter

Items		Unit	Model
			L6SS
Molding Spec.	Clamping force	kg	70000
	Clamping stroke	mm	130
	Stretching stroke	mm	320
	Bottom stroke	mm	50
	Cavity pitch	mm	80
	Number of holder	pcs	200
	Number of cavities	cavities	6
Bottle Spec.	Act.volume, ctr.	L	0.75 (6 cavity=12,000 BPH round bottle)
	Neck diameter	mm	10~30
	Max.diameter, ctr.	mm	75
	Max.height, ctr.	mm	320
Power Spec.	Max.heating power	KW	60
	Power consumption	KW	40
	Actual heating power	KW	36
Air Compressor Spec.	Blowing pressure	Kg/cm2	25~32
	Operating pressure	Kg/cm2	10
	High pressure air consumption	m3/min	7~8
Water Chilling Spec.	Operating pressure	Kg/cm2	6-10
	Temperature range	ºC	10-12
	Refrigerating capacity	kcal/hr	22682
Whole Set Spec.	Size(L*W*H)	mm	8000*1300*2700

Details show



A to Z layout


Certifications

FAQ

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know, we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high-quality machines with 1-year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According to your machines order, we will send one or two engineers to your plant, it will take about 10 days to 25 days. Packaging & Shipping
