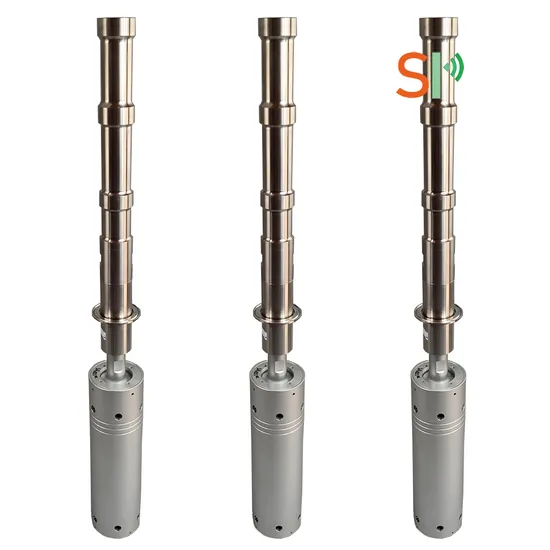

20KHz 3000W Ultrasonic Homogenizer For Alkaloid Extraction

Product Description

Product Description SP TECH Ultrasonics sonicators are high-performance extraction systems, which are simple and safe to operate. In accordance on your raw material, process capacities and output target, SP TECH offers you the most suitable ultrasonic sonicator. SP TECH Ultrasonics extractors can be used for batch and continuous inline extraction and can be used in combination with any solvent. Various accessories such as sonotrodes (probes) of various sizes and shapes, booster horns, flow cells with various volumes and geometries, pluggable temperature and pressure sensors and many other gadgets are available to assemble the ideal ultrasonic setup for your extraction process. Due to the precise control over amplitude, sonication time and duty cycles, optimum process results such as superior yield and highest extract quality can be achieved. SP TECH industrial ultrasonic processors can deliver very high amplitudes. Amplitudes of up to 100µm can be easily continuously run. For even higher amplitudes, customized ultrasonic sonotrodes are available.
Ultrasound Cavitation
Ultrasonic extraction is achieved when high-power, low-frequency ultrasound waves are coupled into a slurry consisting of botanical material in a solvent. High-power ultrasonic waves are coupled via a probe-type ultrasonic processor into the slurry. highly energetic ultrasound waves travel through the liquid creating alternating high-pressure / low-pressure cycles, which results in the phenomenon of acoustic cavitation. Acoustic or ultrasonic cavitation leads locally to extreme temperatures, pressures, heating/cooling rates, pressure differentials and high shear forces in the medium. When cavitation bubbles implode on the surface of solids (such as particles, plant cells, tissues etc.), micro-jets and interparticlular collision generate effects such as surface peeling, erosion, particle breakdown, sonoporation (the perforation of cell walls and cell membranes) and cell disruption. Additionally, the implosion of cavitation bubbles in liquid media create macro-turbulences and micro-mixing. Ultrasonic irradiation represents an efficient way to enhance mass transfer processes, since sonication results in cavitation and its related mechanisms such as micros-movement by liquid jets, compression and decompression in the material with the subsequent disruption of cell walls, as well as high heating and cooling rates. Probe-type ultrasonicators can generate very high amplitudes, which is necessary to generate impactful cavitation. SP TECH Ultrasonic manufactures high-performance ultrasonic extractors, which can easily create amplitudes of 100µm in continuous operation.
Product Parameters

Model	SPS20-500S	SPS20-1000S	SPS20-1600S	SPS20-2000	SPS20-3000	SPS20-3000Z
Frequency	20Khz	20Khz	20Khz	20Khz	20Khz	20Khz
Power	500 W	1000 W	1600 W	2000W	3000W	3000 W
Voltage	220V	220V	220V	220V	220V	220V
Pressure	Normal	Normal	Normal	35 MPa	35 MPa	35 MPa
Intensity of sound	>10 W/cm²	>10 W/cm²	>10 W/cm²	>40 W/cm²	>60 W/cm²	>60 W/cm²
Processing capacity (L/H)	0.5-2.0	1.0-4.0	10.0	20.0	50.0	100.0
Material of probe	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy
Generator	Digital type	Digital type	Digital type	Digital type	Digital type	Digital type

Application Food processing Reaction Acceleration - cavitation accelerates chemical and physical reactions. Fine Particle Dispersion - e.g. nanoparticle processing Disruption and Cell Lysing - will break open biological tissues and cells to extract enzymes and DNA, prepare vaccines. Ultrasonically lysing cells and spores in a liquid flowing continuously or intermittently through a cylindrical reactor. Homogenization - making uniform mixtures of liquids or liquid suspensions. Emulsification - processing foods, pharmaceuticals, and cosmetics. Dissolution - dissolving solids in solvents. Degassing - removing gases from solutions without heat or vacuum. Inline pipe cleaning, removes scale or build/up without disassembly. Cylindrical 360° internally radiating chamber.
Characteristics High yields
Superior Quality
Full Spectrum Extracts
Rapid Process
Compatible with Any Solvent
Easy and Safe to Operate
Linear Scalability
Environmental-Friendly
Fast RoI
