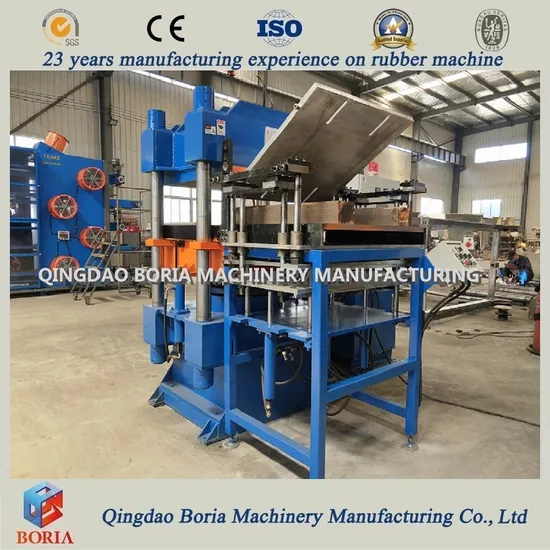

Four Column Type Hydraulic Rubber Vulcanizing Press Machine, Sponge Rubber Ball Making Machine, Vulcanizer, Curing Press, Hot Press, Heating Press with CE

Product Description

Rubber Hydraulic Vulcanizing Press Machine for Frame Structure Our Advantages
I. Advantages of the machine
1. Four column structure
2. 3RT (3 stage die sinking)
3. PLC programmable controller
4. Breakdown self check function and display
5. Pressure transducer control system
6. Tubular electric heating element fuse alarm and remind the place of the damaged tubular electric 7. heating element. It is convenient to maintain and change. Product Parameters
II. Technical parameter

Model	XLB-D600X600X2
Total Pressure (MN) for Single Press	2.0
Hot Plate Specification (mm) for Single Press	600X600
Unit Area Pressure(KG/CM²)	5.56
Daylight (mm)	250
Working Layer No.	2
Working Hydraulic Pressure (Mpa)	15.9
Mould Closing Speed(mm/s)	12
Piston Stroke (mm)	700
Piston Diameter(mm)	400
Heating Mode	Electric
Heating Temperature(ºC)	140-180
Total Motor Power (KW)	About 11
Control Mode	Automatic PLC Control
Total Weight(KG)	7200

Item	XLB240×240×2	XLB350×350×2	XLB400×400×2	XLB500×500×2	XLB600×600×2/4	XLB700×700×2
Total pressure (MN)	0.15	0.25	0.5	0.63	1.00	1.20
Daylight (mm)	125	125	125	125125	125	200
Platen Layers	2	2	2	2	2-4	2
Unit area pressure of hot plate(Mpa)	2.60	2.04	3.13	2.52	2.77	2.45
Piston stroke (mm)	250	250	250	250	250/400	250
Heating mode	Electric	Electric	Electric/ Stream	Electric/ Stream	Electric/ Stream	Electric/ Stream
Main motor power (KW)	2.2	2.2	2.2	2.2	2.2	2.2
Size: L × W × H (mm)	1200×350×1300	1400×480×1380	1600×500×1480	1750×600×1540	1880×720×1680	2000×850×1750

Detailed Photos
III. Test Before Delivery
Before leaving factory, this rubber vulcanizing machine needs to pass 24 hours' test running and guarantee no oil leakage and seeping to avoid unnecessary quality problems. Packaging & Shipping
IV. Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, to protect the painting surface, we use wooden packaging outside.The key parts of the machine, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.V. Our service
1. Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.
2.Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services.
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory! FAQ
FAQ:
1. Q: Where is your factory? How can I visit ?
A: Our factory located in Qingdao city.You can fly to QINGDAO Jiaodong International airport,then we can pick you up to our factory for your visiting.We are looking forward to your visiting.
2. Q: How does your factory control the quality of machines and after sales service?
A: Our machines have passed CE, ISO, SGS certification, with best quality and reasonable price. All our machines have 1 year guarantee, will be provided for a lifetime maintenance.
3. What's your payment term?
A: Common is 30% deposit by T/T, the balance paid against shipping documents
Or L/C at sight.
4. Q: Can you design new product for us?
A: We have a professional development team that can make new products according to your requirements.
5. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

6. What does your factory do regarding quality control?
We pay much more attention to the quality controlling from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

7. What's the machine quality guarantee?
we provide one year warrenty for our machines.We choose the world's famous brand of components to keep our machine in perfect working condition.

8. Are you able to provide the installation and commissioning of machines overseas? How long will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.

9. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
