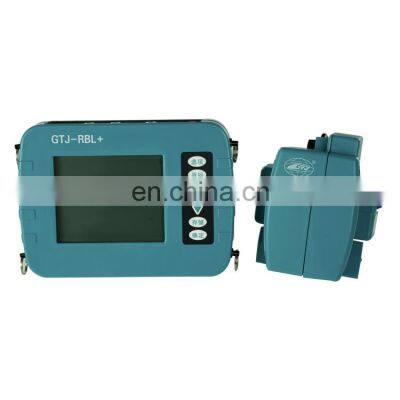

RBL+ concrete rebar locator scanner concrete cover meters

Product Description

Product Description
Product DescriptionApplicable range of protective layerthickness(mm)Φ6~Φ50mmFirst rabge6~90mmSecond range6~200mmMaximum Allowable Error of Second Range Protective Laye Thickness6~80mm ±1（mm） 81~120mm ±2（mm）121~200mm ±4（mm）Applicable Scope of Diameter EstimationΦ6mm-Φ32mmMaximum error of diameter indication±1 SpecificationsSection gridGraphics+Digital DisplayStorage Quantity2000 Components*1000 Measuring PointsData transmission modeData transmission modePower supplylithium battery for more than12 hoursWorking environment requirementsTemperature:-10℃~+40℃ Humidity:<90%RHPacking volume420×140×335mmWeight5.5kgThe rebar locator is a portable non-destructive testing instrument,which can used for the detection of the construction quality of reinforced concrete structures.it can measure the position of steel bars on the concrete surface and detect the thicknee of thickness of the protective layer of the steel bars and diameter of the steel bars1.Upgraded wireless cloud transmission function2.Adopt three anti-shell design, waterproof, dust-proof and shock-proof3.Large screen high resolution LCD screen, the interface has Chinese prompts, more intuitive display content4.Built-in large capacity memory card, storage capacity upgrade5.USB transmission simulates the host computer as a U disk and reads data as easily as a U disk6.Real-time display of protective layer thickness and steel signal image, minimum automatic locking7.Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth8.Automatic storage of test data, on-site statistical analysis results are provided immediately, which is convenient for guiding construction work9.Professionaldata analysis software, so you’re your post- processing data and report generation work can be easily completedCompany ProfileCANGZHOU LOVELY GROUP CO., LTD. is located in Cangzhou City, Hebei Province, China. A leading manufacturer of Scaffolding & Formworks accessories, Ring-lock Shoring System, Testing Machine for construction projects, industrial engineering, roads and bridges etc.Factory WorkshopHot SalesCertificationsCustomer PhotosPacking and ShippingFAQQ1:Are you a factory or trading company?A:We are a factory specializing in manufacturinf all kinds of tester.Q2:Where is the loading port?A:Qingdao port or tianjin portQ3:What’s the MOQ of the product?A:Different item has different MOQ.normally one stand is preferred.Q4:What certificates do you have?A:We have ISO 9001Q5:Do you have an OEM service?A:Yes.We can provide OEM and ODM services as your requirements.Q6:How long is the production cycle after ordering?A:General it is about 7-20 days.Q7:What is the payment method?A:T/T payment is preferred and other payment terms is accepted.
