Pakistan Single-Phase Motor Double-Value Capacitor for Efficiency

Product Description

HOT-SELLING PRODUCTS
Product Description
Longran Electromechanical (Zhejiang) Co., Ltd.
Introducing the YL Series Motors: Revolutionizing Efficiency and Reliability! Our newly designed YL series motors are a marvel of modern engineering. With a fully enclosed, single-phase capacitor-starting system, these motors ensure unparalleled performance. The YL series is renowned for its simple yet robust structure, guaranteeing reliable operation and effortless maintenance. Experience exceptional technical and economic benefits, making these motors the ideal choice for a wide array of applications, including air compressors, pumps, refrigerators, washing machines, medical instruments, woodworking machinery, and various agricultural equipment.
The YL Series Motors: Unmatched Quality and Protection. With a protection grade of IP44, insulation grade options of E or B, and an efficient cooling mode of IC0141, the YL series motors are meticulously designed to meet your highest standards. Opt for YL series motors to achieve superior quality and efficiency in all your industrial and agricultural machinery needs.

Frame Size:			71-132
Rated Voltage:			220V/110Vor request
Rated Frequency:			50HZ,60HZ
Rated Power:			0.18-2.2kW
Insulation Class:			F
Altitude:			≤1000m
Relative Humidity:			≤90%
Protection Class:			IP55
Cooling Method:			IC411
Ambient Temperature:			-15°-+40°C
Duty:			S1
Mounting:			B3,B5,B14,B35,B34

Type No.	Output		Voltage	Frequency HZ	Current A	Speed r/min	EFF %	Power Factor	Locked tarque Rated torque TST/TFL	Locked current Rated current IST/TFL	Max tarque Rated torque TM/TFL
	kW	HP
YL7112	0.37	0.5	220	50	2.73	2800	67	0.92	1.8	6.0	1.8
YL7122	0.55	0.75	220	50	3.88	2800	70	0.92	1.8	6.0	1.8
YL7114	0.25	0.33	220	50	1.99	1400	62	0.92	1.8	6.0	1.8
YL7124	0.37	0.5	220	50	2.81	1400	65	0.92	1.8	6.0	1.8
YL8012	0.75	1	220	50	5.15	2800	72	0.92	1.8	6.0	1.8
YL8022	1.1	1.5	220	50	7.02	2800	75	0.92	1.8	6.0	1.8
YL8014	0.55	0.75	220	50	4.0	1400	68	0.92	1.8	6.0	1.8
YL8024	0.75	1	220	50	5.22	1400	71	0.92	1.8	6.0	1.8
YL905-2	1.5	2	220	50	9.4	2800	76	0.95	1.8	6.0	1.8
YL90L-2	22	3	220	50	13.7	2800	77	0.95	1.8	6.0	1.8
YL905-4	1.1	1.5	220	50	7.21	1400	73	0.95	1.8	6.0	1.8
YL90L-4	1.5	2	220	50	9.57	1400	75	0.95	1.8	6.0	1.8
YL100L-2	3	4	220	50	18.4	2820	78	0.95	1.8	6.0	1.8
YL100L1-4	2.2	3	220	50	13.9	1410	76	0.95	1.8	6.0	1.8
YL100L2-4	3	4	220	50	18.6	1420	77	0.95	1.8	6.0	1.8
YL112M-2	3.7	5	220	50	222	2820	80	0.95	1.8	6.0	1.8
YL112M-4	2.2	3	220	50	13.9	1410	76	0.95	1.8	6.0	1.8
YL112M1-4	3	4	220	50	18.17	1420	77	0.95	1.8	6.0	1.8
YL112M2-4	3.7	5	220	50	23	1430	78	0.95	1.8	6.0	1.8
YL13251-4	3	4	220	50	18.17	1420	77	0.95	1.8	6.0	1.8
YL132S2-4	3.7	5	220	50	23	1430	78	0.95	1.8	6.0	1.8
YL132M-4	5.5	7.5	220	50	325	1430	81	0.95	1.8	6.0	1.8

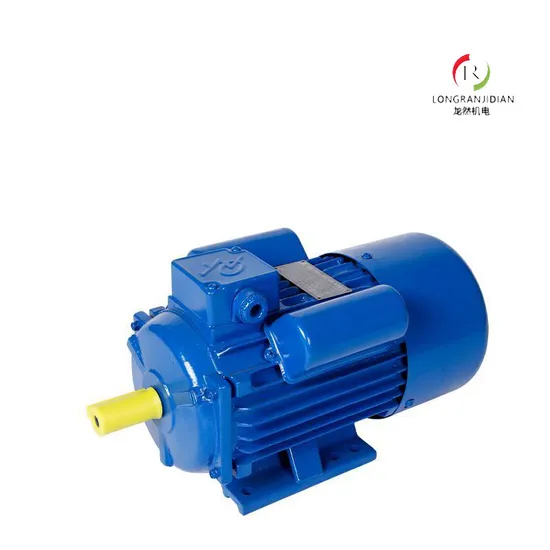

Detailed Photos
more products Click on the link to see what you need
Longran's main products:CE certificate/New National Standard GB/T28575-2012 1 Secondary Energy Efficiency/IP55:* YE4 Super High Eficiency Secondary Energy Efficiency Motor;* YE3 Super High Efficiency Energy Saving Series Three -phase Asynchronous Motor;* YE3 Super High Efficiency Energy Saving Aluminum Shell Motor;
* YEJ2 series electromagnetic brake three- phase asynchronous motor;* YBX3 series flameproof three- phase asynchronous motor;
* Riello Combustaion Engine Specific Motor;
*ZFY series special motor combustion engine
*DC High-Votage Cleaning Machine
*LRYBDC Series Flameproof Electric Motor for Industrial Use with High Efficiency
*LR Series Waterproof Motor for Underwater Use with IP68 Protection Rating
* YVP2 Frequency conversion series three phase asynchronous motor
*YC Series heavy-duty single phase capacitions start induction motor
*YL SEries single phase dual capacitor induction motor
*MY ML Series aluminum sell single phase motor
*MS CDL Series high effciency three-phase asynchrorous motor* YD2 series two-speed multi-speed three phase asynchronous motor;* YVFEJ2 series variable frequency brake three-phase asynchronous motor,* YDEJ series Multi-speed electromagnetic brake three. phase asynchronous motor, oil pump motor,* special motor for stone machinery and equipment, custom-made motors with special specifications for powerrequirements, and motors with different frequencies and different pressures.* The protection grades include IP55, IP66, etc. and various special motors derived from them.
Certifications Our Advantages
Company Profile Welcome to Longran Electromechanical (Zhejiang) Co., Ltd. At Longran, we excel in crafting customized electric motors tailored precisely to your specifications. Leveraging state-of-the-art equipment and a team of seasoned professionals, we consistently deliver superior quality products. With a robust production capacity ranging between 4000-5000 units per month, we ensure prompt and reliable delivery.
To initiate production, a 30% deposit is required, with the remaining balance payable via T/T prior to delivery. We offer complimentary samples upon request, although customers are responsible for courier costs. This allows you to experience our product quality firsthand before making a commitment.
Our products come with CE and TUV certifications, underscoring our commitment to quality and safety. Choose Longran for dependable, high-efficiency electric motors, meticulously engineered to meet your unique requirements.
FAQ 1. Q: Can you manufacture products according to customer drawings?
A: Absolutely! We provide tailor-made services to meet customer specifications. We can also affix the customer's nameplate to our electric motors.
2. Q: What are your payment terms?
A: We require a 30% deposit before production starts, with the remaining balance payable via T/T before delivery.
3. Q: Are you a trading company or a manufacturer?
A: We are a reputable manufacturer equipped with advanced machinery and skilled workers.
4. Q: What is your production capacity?
A: Our production capacity is between 4,000 to 5,000 units per month.
5. Q: Is a free sample available?
A: Yes, we can provide a free sample if the customer agrees to cover the courier costs.
6. Q: Do you have any certifications?
A: Yes, we have obtained CE certification and a TUV certificate report.
