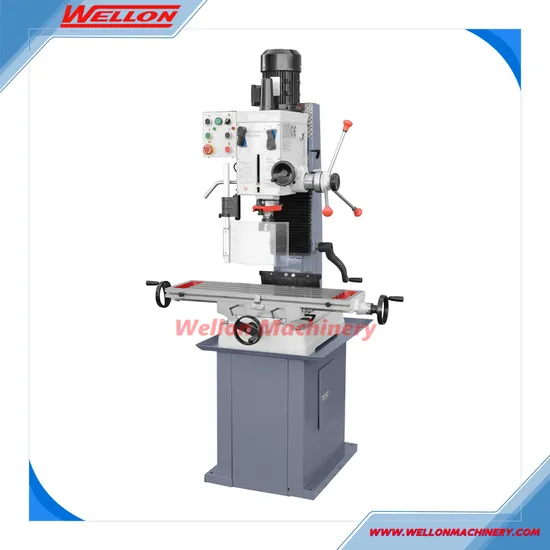

Bench Milling Drilling Machine Zay7032fg Bench Mill Drill Machine Price
| US$1,000.00-2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZAY7032FG
Object
Hardware
Structure
Desktop
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Model
Zay7032fg
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
Tengzhou China
HS Code
84596190
Production Capacity
200 PCS/Month
Product Description
Products Description:Performence Features:
Gear-driven type and square column
Milling, drilling, tapping, boring and reaming
Head swivels 90 verticaly
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Technical parameter:
| ITEM | ZAY7032FG |
| Max Face mill capacity | 32mm |
| Max End mill capacity | 63mm |
| End milling capacity | 20mm |
| Max.distance from spindle nose to table | 450mm |
| Min.distance from spindle axis to column | 260mm |
| Spindle travel | 130mm |
| Spindle taper | M.T.3 or R8 |
| Step of spindle speed | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m |
| Swivel angle of headstock | 90° |
| Table size | 800×240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |
| Motor Power | 0.75KW(1HP) |
| Net weight/gross weight | 320kg/370kg |
| Packing size | 770×880×1160mm |
Standard Accessories:
Allen wrench
Wedge
Tie rod
Some tools
Optional Parts:
Oil Tray
Stand
Auto power feed
90mm Machine Vice
125mm Machine Vice
Drill chuck
Reduction sleeve
Mill chuck
Tapping system
Work lamp
Coolant system
2 axis DRO
3 axis DRO
