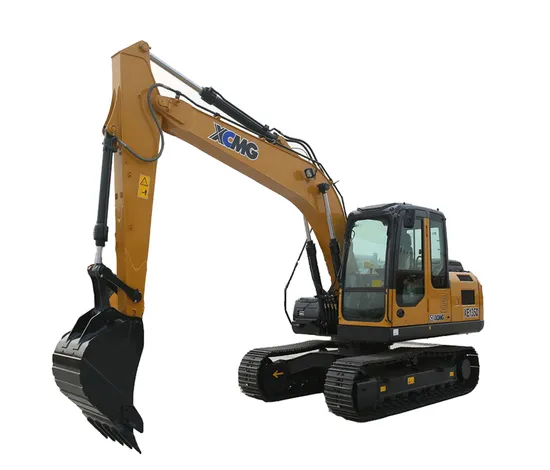

Top Exported Xe135b 13 Ton Hydraulic Small Garden Digging Crawler Excavator Price for Sale

Product Description

XE135D adopts a new engine jointly developed by XG. It has strong power (the highest power among the same tonnage), high torque at low speed and high fuel economy. It can reduce fuel consumption by 7% compared with the previous generation. New generation internationally famous hydraulic elements are of high rated working pressure, high efficiency, precise control, small impact and long service life.
Combined with the new generation XEICS intelligent control system independently developed by XG excavator, it can make full use of engine output power, with optimized fuel power curve, it can save up to 7% fuel under the same level of operating efficiency. The main structural components are all optimized by FEA, and after long-term high-intensity operation assessment, the service life is longer.
1. Ecological and economical
* Customized XCG exclusive engine can meet Euro stage IV Emission Standard.
* Well-known hydraulic components, higher eficiency.
* Minicomputer control technology makes operation more economical.
2.Multiple applications
* Different boom, arm and bucket combinations can provide excellent all-around versatility.
* Multi-functional work tool system can meet various operational requirements including digging, breaking and so on.
3. Comfortable operating experience
* Air conditioner and heater ensure the appropriate temperature.
* Air-suspension seat equipped with electric heating function.
* Integrated control panel and large display screen provide multiple information.

Model		Unit	XE135D
Operating weight		Kg	13200
Bucket capacity		m³	0.32-0.61
Engine	Model engine	/	QSF3.8
	Injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo-charging	/	√
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	86/2200
	Maximum torque/speed	N.m/rpm	470/1300
	Displacement	L	3.8
Main performance	Travel speed	km/h	5.2/2.9
	Swing speed	r/min	11
	Gradeability	°	35
	Ground pressure	kPa	40.4
	Bucket digging force	kN	99.1
	Arm digging force	kN	68
	Maximum tractive force	kN	134
Hydraulic system	Rated flow of main pump	L/min	125.4*2
	Travel system pressure	MPa	34.4
	Swing system pressure	MPa	25
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	260
	Hydraulic tank capacity	L	105
	Engine oil capacity	L	11
Appearance size	Overall length	mm	7795
	Overall width	mm	2525
	Overall height	mm	2880
	Width of platform	mm	2490
	Total width of chassis	mm	2490
	Track shoe width	mm	500
	Wheel base of crawler	mm	2918
	Track gauge	mm	1990
	Counterweight clearance	mm	931
	Min. ground clearance	mm	466
Working range	Max. digging height	mm	8638
	Max. dumping height	mm	6174
	Max. digging depth	mm	5546
	Max. vertical wall digging depth	mm	4698
	Max. digging radius	mm	8304
	Min. swing radius	mm	2445
Standard	Length of boom	mm	4600
	Length of arm	mm	2520
	Bucket capacity	m³	0.52
