200kn 20 Ton Mooring Winch

Product Description

200kn 20 Ton Mooring Winch
Product Description
» Brief Introduction
The hydraulic winch is converted into mechanical energy by the hydraulic energy obtained by the hydraulic motor through the hydraulic system,and it is decelerated by the planetary reducer to increase the torsion,which produces a great torque on the drum,and achieves the purpose of dragging heavy objects by winding the steel wire rope on the drum.
» Main Application
Hydraulic winch is a vehicle tool used in automobiles and special vehicles for self-rescue and self-discharge in off-road driving under difficult road conditions.
It can also be used for lifting and pulling heavy objests in construction site,such as engineering installation,oil field drilling,road clearing etc.
It is characterized by compact structure,small size,light weight,large pulling force,simple installation,flexible operation,convenient maintenance,and the hydraulic system of the car itself.

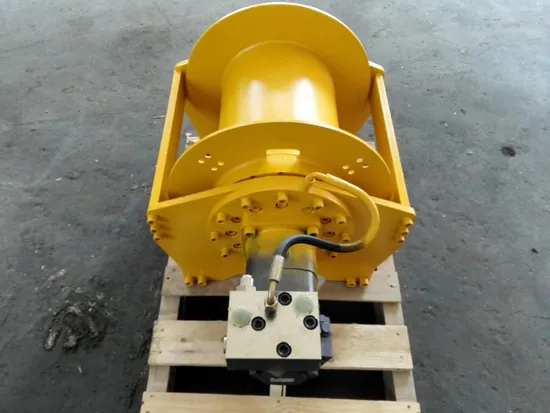

Detailed Photos
Main Features
1) Top quality with competitive price.
2) Widely used in Truck crane,Warship,Oil field drilling and production,Coal mine,Port,Small engineering machinery.
3) Compact structure and reasonable design.
4) Easy to install, operate and maintenance.
5) Low noise and good working condition.
6) One Year Warranty.
Hydraulic winch for log splitter, Crane, Mini digger tractor, tractor viticulture Horticulture and many other applications
1. And strutting up firewood for wood splitter
2. Pull logs on trailer
3. Pull out the rhizomes and trees
4. When mounted winch on logging cranes and small excavators
5. As a winch for small tractors and Vineyard tractors
6. There is a 20 m long and 6 mm thick steel cable mounted.
7. Large sheave for long life of the steel rope
Precautions:1. Before installing the winch, make sure that the rotation direction of the drum is consistent with the arrow indicated direction (the direction of load lifting).
2. Usually the winch is connected between the hydraulic system and the motor with two pipes, and the inner diameter of the pipe is not less than the flow rate of the valve and the motor.
3. The hydraulic pipeline is very important in the installation of the winch. It should be equipped with 'Y' type reversing control valve with neutral function and equipped with automatic Re-centered spring, which can automatically return to the initial position every time the operation is shifted.
4. It is necessary to install a relief valve in the hydraulic system pipeline.

Product Parameters

Model			YJ3/110	YJ5/100	YJ16/60	YJ16/100
Flow Rating	L/min	120		120	120	120
	gpm	31.7		31.7	31.7	31.7
Pressure Rating	MPa	16.6		16.6	16.6	16.6
	psi	2400		2400	2400	2400
Max.Pull	kN	30		50	160	160
	US ton	3.3		5.5	17.6	17.6
Max.Line Speed	m/min	23		11	5.8	5.8
	ft/min	73		36	19	19
Wire Rope Diameter	mm	12.7		20.5	28	28
	in	1/2		3/4	13/32	13/32
Rope storage	m	110		100	60	100
	ft	360		328	197	328
Size	mm	810×490×500		880×520×710	1340×930×900	1520×930×900
	in	32×19×20		35×21×28	52.8×36.6×35.4	59.5×36.6×35.4
Weight	kg	490		490	1150	1250
	lb	1080		1080	2530	2750

Packaging & Shipping
