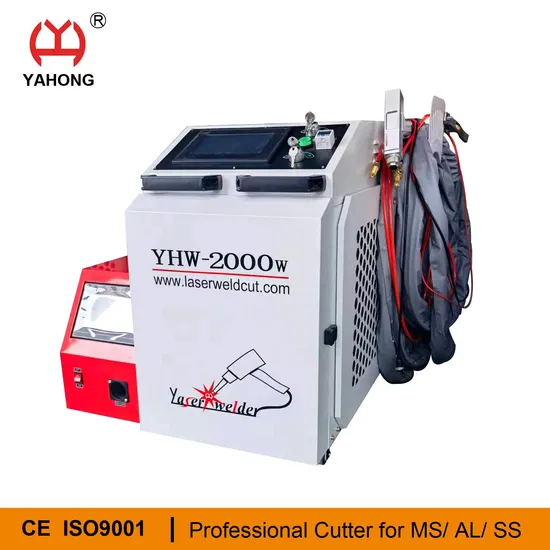

4in1 Handheld Metal Fiber Laser Welding Machine Price for Sale 1000W 1500W 2000W 3000W

Product Description

4in1 Handheld Metal Fiber Laser Welding Machine Price for sale 1000W 1500W 2000W 3000W

I.Laser Welding Machine Advantages:
1. The welding seam is beautiful, uniform, no welding scar, no discoloration, and no need to polish in the later stage. Save labor and working hours and improve efficiency.
2. The welding is firm, and the weld strength reaches or exceeds the base metal itself;
3. One-time welding and forming, basically no deformation, meeting the requirements of high-quality products
4. Fast welding speed, high efficiency, 2-10 times faster than traditional welding, one machine can save at least 2 welders a year.
5. The operation is simple, easy to learn, and quick to learn. It only takes 5 minutes to master, no welder foundation is required, and labor costs are saved.
6. Low cost, power consumption is only one tenth of general argon arc welding or gas shielded welding.
7. Laser welding requires less consumables and has a long life.
8. Red light positioning, welding position is more accurate.
9. Laser welding has less gas and dust and is more environmentally friendly.
II.Metal Laser Welding Machine Features:
1. Three modes of self-fusion welding, wire feeding and cutting can be selected at will;
2. Tailor welding, fillet welding, stitch welding, straight and arc omnipotence;
3. Adopt international famous brand laser power.
4. The welding head designed with ergonomics is only 0.8KG in weight, which fully considers the applicability of the welding process and the comfort of long-term use.
5. Support process library storage, saving debugging time.
6.6 kinds of light emission modes, suitable for different scenes.
7. Adjustable light spot (0-5) mm.
8. The control screen directly digitally sets the parameters of the wire feeder, and the wire feeding is smooth.
9. Support delivery (0.8\1.0\1.2\1.6mm) stainless steel, carbon steel, aluminum welding wire.
10. Perfectly replace some traditional argon arc welding, electric welding on thin stainless steel plate, iron plate, aluminum plate etc.
III. Fiber Laser Welding Machine Melt depth

laser power	Thickness
1000w	2.5mm
1500w	4mm
2000w	6mm
3000w	8mm

Welding parameters

Material	thickness mm	scan speed	scan width mm	laser power /W	duty cycle	pulse frequency	wire feeding speed cm/s	wire diameter
Carbon steel	1	300	3	350	100	2000	60	1
	2	300	3	700	100	2000	60	1.2
	3	300	3	1100	100	2000	60	1.2
	4	300	3	1500	100	2000	1.6	1.6
	5	220	3	1800	100	2000	50	1.6
	6	220	3	2200	100	2000	50	1.6
	8	220	3	3000	100	2000	40	2
Aluminium	1	300	3	500	100	2000	60	ER5356 1.0
	2	300	3	800	100	2000	60	ER5356 1.2
	3	300	3	1400	100	2000	60	ER5356 1.2
	4	300	3	1800	100	2000	60	ER5356 1.6
	5	220	3	2000	100	2000	50	ER5356 1.6
	6
	8
Stainless steel	0.5	300	2	260	100	2000	80	ER304 0.8
	0.8	300	2	300	100	2000	80	ER304 0.8
	1	300	2	350	100	2000	60	ER304 1.0
	2	300	3	700	100	2000	60	ER304 1.0
	3	300	3	1100	100	2000	60	ER304 1.2
	4	300	3	1500	100	2000	60	ER304 1.2
	5	220	3	1800	100	2000	50	ER304 1.6
	6	220	3	2200	100	2000	50	ER304 1.6
	8	220	3	3000	100	2000	40	ER304 2.0

IV.Welding type:
Fillet welding vertical welding Tailor welding flat welding Overlap welding
Smooth and beautiful weld, reduce subsequent grinding process, save time and cost.
Welds free scar Beautiful seam No deformation of workpiece
All kinds of flat plate, circular tube, rectangular tube and special arc can be welded.
V.Why Choose US?
1. More than 10 years of production experience to ensure product quality and timely delivery.
2. The perfect after-sales service team can solve all kinds of problems in time. You can communicate via email, phone, whatsapp, skype, wechat, etc.
3. We are a manufacturer, have enough spare parts and consumables, and deliver them in time to solve your worries.
4.Provide OEM/ODM Service.
VI.Certificates
