PM10A Fincm Vertical Cnc Tube Sheet Flange Drilling and Milling Machine

Product Description

Product Description

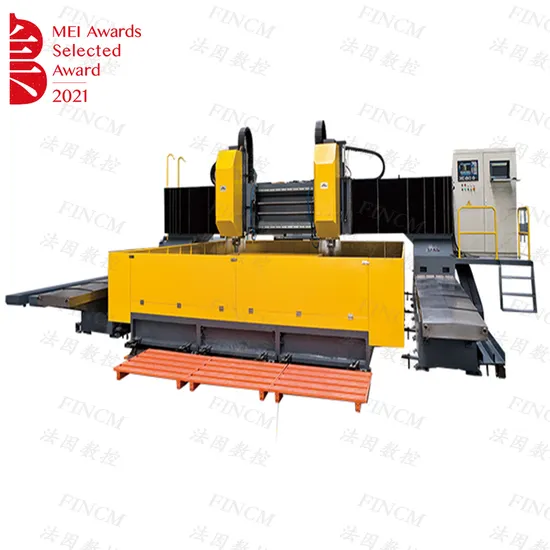

PM10A FINCM Tube Sheet Flange High-Speed CNC Drilling Milling Machine
This machine tool is a rotary table CNC high-speed drilling machine, which is mainly used for the processing of flange parts. It is especially suitable for drilling on the flange end face of long shafts and for rigid tapping of holes; it can realize automation, high precision and multiple Variety, small and medium batch production.
This equipment is mainly composed of base, column, headstock, rotary table, fixture, chip removal system, cooling system, pneumatic system, centralized lubrication system, hydraulic system, electrical system and other parts.
Equipment advantages:
1. The spindle structure is a rigid and precise spindle type. It adopts an internally cooled spindle made in Taiwan. It is driven by a high-power spindle servo motor through a two-speed gearbox, which can achieve high-speed drilling with carbide drills and a wide range of speed adjustments.
2. The worktable is made of high-quality cast iron. The T-slot of the worktable is used to clamp the workpiece, and the center has a precision hole, which is coaxial with the center line of rotation. It can be used for the rotation angle and positioning of the workpiece.
3. This machine tool provides two cooling methods: internal cooling and external cooling, which provide sufficient lubrication and cooling for the tool and workpiece during chip cutting.
4. This machine tool is equipped with an automatic lubrication system, which automatically fully lubricates the guide rails, lead screws, bearings and other parts of the machine tool that need to be lubricated.
5. This machine tool is equipped with Siemens 828D numerical control system, CNC, PLC, operation panel and 6-axis drive control (standard configuration) are all integrated in one unit. This structure can save the hardware interface between the CNC circuit board and the operation panel, thereby greatly improving the durability of the system and making the operation more conveniet.
Main Technical specification

Maximum workpiece size	diameter	Φ1000mm
	height	250mm
Chuck	Clamping workpiece diameter range	Φ200-Φ1000mm
	Chuck clamping accuracy	0.2mm
	Maximum input torque of chuck	700Nm
	Maximum clamping force of chuck	60KN
Drilling power head	Number of power heads	1
	Maximum diameter of borehole	φ50 mm(Carbide drill)
	Drilling depth / diameter	≤5(Carbide drill)
	Maximum tapping diameter	M30(Ordinary carbon steel)
	Maximum torque of spindle(N≤600r/min)	350Nm
	Spindle speed	30~2500 r/min
	Spindle taper	BT50
	Spindle servo motor power	22kW
	Distance between spindle end face of power head and chuck table in vertical drilling	250-750 mm(Customer confirmation required)
Gantry longitudinal movement (x-axis)	Maximum stroke of x-axis	1000 mm
	positioning accuracy moving speed	0~16m/min
Transverse movement of beam power head (Y-axis)	Maximum stroke of y-axis	1000mm
	Y-axis moving speed	0~16m/min
Vertical feed motion of power head (Z axis)	Z-axis stroke	500 mm
	Z-axis feed rate	0~10m/min
positioning accuracy	x-axis	0.08mm/ whole course
	Y-axis	0.05 mm/ whole course
Repeat positioning accuracy	x-axis	0.04mm
	Y-axis	0.025mm
Hydraulic system	Hydraulic pump pressure / flow	6MPa /22L/min
	Motor power of hydraulic pump	3.0 kW
Pneumatic system	Air supply pressure	0.5 Mpa
Chip removal and cooling	Chip conveyor type	Flat chain
	Number of chip conveyor	1
	Chip removal speed	1m/min
	Chip conveyor motor power	0.75kW
	Cooling mode	Internal cooling + external cooling
	Pressure / flow of internal cooling pump	2MPa/30L/min
electrical system	Numerical control system	FAGOR8055
	Number of CNC axes	4
	Total power of motor	about 43kW
Equipment dimensions	L × W × H	about 4m×5m×4m

Key outsourced components list:

NO	Name	Specifications	Quantity
1	Submersible pump		1
2	Photoelectric edge finder		1
3	inner hexagon spanner		1set
4	Knife handle and broach	Φ20-BT50	1set
5	Paint (for touch up)		2kegs

Note: The above is our fixed supplier. It's subject to be replaced by same quality components of other brand if the above supplier can't supply the components due to any special matter.
Free Accessories list:

NO	Name	Brand	Country
1	Roller linear guide	HIWIN	Taiwan, China
2	Ball screw	NEFF/IF	Germany
3	Ф 2500 rotary table (static pressure)	JIER Tool Machine Group	China
4	Numerical control system	Siemens 828D	Germany
5	Feed servo motor and driver	Siemens	Germany
6	Main motor	Siemens	Germany
7	Grating ruler	FAGOR	Spain
8	Spindle	Kenturn	Taiwan, China
9	Hydraulic valve	ATOS	Italy
10	Oil pump	Justmark	Taiwan, China
11	Automatic lubrication system	BIJUR	USA
12	Cooling pump	Fengchao Pumps	China
13	Button, indicator light and other main electrical components	Schneider	France
14	transmission case	GTP	Taiwan, China

Work Environment:
1).Power supply: 3 phase 5 lines 380±10%V 50±1HZ
2).Compressed air pressure: ≥0.5MPa
3).Temperature: 0-40°C
4).Humidity: ≤75%
