Industrial Warehouse Storage Steel Long Span Rack with Medium Duty Shelf

Product Description

Product Description

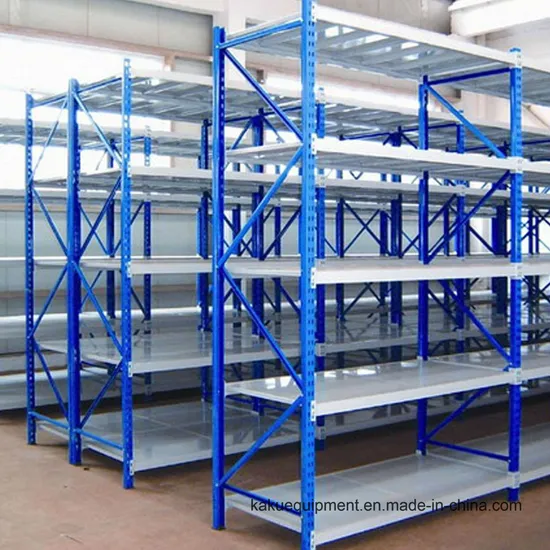

Industrial Warehouse Storage Steel Long Span Rack with Medium Duty Shelf
Long span shelving is mainly composed of uprights, beams and panels. It is suitable for manual operation. According to different sizes and loading requirements, the different specification and thickness of uprights, beams and panels can be chosen. The climbing equipment can be used for a higher shelving.
Features
1. Suitable for manual operation.
2. Average loading for each layer: 200-800kgs.
3. Can be adjusted by pitch of 50mm.
4. Frame-style structure; easily assembled, disassembled and maintained.
5. Side and back wire mesh, side and back board and dividers can be equipped.
Product Parameters

Model	Long Span Rack P00002#
Size	A) 1500mm long		B) 1800mm long				C) 2000mm long			D) 2440mm long
	A) 300mm wide		B) 450mm wide				C) 600mm wide			D) 750mm wide
	A) 1500mm high		B) 1800mm high				C) 2000mm high			D) 2500mm wide
Materials Optional	A) Quality Steel Q235A used for normal temperature storage situation
	B) Quality Steel Q235B used for cold storage room
	C) Environmental protection powder for surface treatment--powder coating
Craft-work	A) hole-punching	B) cold rolling				C) welding			D) powder coating
Structure	A) bolted structure					B) welded structure
Color	A) as to our standard model					B) according to customer's requests
Pack model	A) standard export packing					B) according to customer's requests
Package material	A) transparent and dust-proof poly-sheet
	B) hard carton paper
	C) long and thin plywood bar
	D) plywood pallet; steel and plastic straps
	E) air bag used when loading container
MOQ	5-10 sets; the model is subject to your requirements
Payment	A) T/T				B) LC			C) Paypal or Western Union
Warranty	A) one year against manufacturing defect
	B) offer lifetime consultation on problems occurred
Quantity	A) 20' container			B) 40' container				C) a sample order
	17500kgs			26000kgs				1 set
Delivery time	In 15 days			In 20 days				In 7 days
Note	All racks can be customized

Production Procedure
Service Content
Please Provide Information for Quick Quotation
1. Pallet Size (Length*Width*Loading Height in mm).2. Layout or Dimension (Length*Width*Net Height in mm) of your warehouse.3. Rack Size (Length*Width*Depth in mm) if you are available or we shall design for you.4. How many bays and levels if available.5. Loading Capacity(kg) of each level or each pallet.
We also have the following products for you to choose, click to quickly get

Radio Shuttle Rack	Mold Rack	Cantilever Rack	Moblibe Pallet Rack
Pallet Flow Rack	Drive in Pallet Rack	Light Duty Shelf	Boltless Rack
Slotted Angle Shelf	Medium Duty Rack	Stacking Rack	Wire Mesh Deck

FAQ
a: May I know the status of my order?
We will send you photos or video and help you to update.
b: Quick manufacturing time.
For Normal orders, we will promise to produce within 15 workdays.
As a manufactory, we can essure the delivery time according to the formal contract.
c: What is delivery times?
Normally, delivery time is within 20 workdays.
d: What is the term of payment?
T/T: 30% deposit in advance after confirmed order,
70% balance payment before shipment
WESTERN UNION, PAYPAL
Factory Photos
