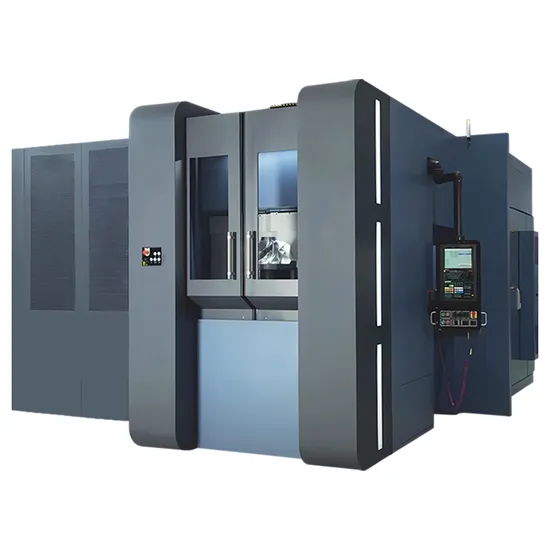

Horizontal Machining Center Five-Axis CNC Machining Center A1000

Product Description

Product Description


Product Parameters

Item	Unit	A1000
Travels
X travels	mm	1400
Y travels	mm	1000
Z travels	mm	1600
Worktable
Worktable size	mm	1000*1000
Minimum indexing unit of worktable	°	0.001°
Worktable T-slots(No.-W*distance)	mm	7-22*125
Max.weight on worktable	kg	2000
Maximum workpiece rotation diameter	mm	φ1800
Worktable rotation angle	0	360
Worktable power	kw	7.0
Maximum speed of worktable	rpm	13.88
Worktable positioning (VDI3441)	"	15
Worktable repeatability (VDI3441)	"	4
Distance from spindle end to worktable	mm	"A=0°235-1235 A=90°-80~1520"
Distance from spindle center to worktable	mm	"A=0°-450~1150 A=90°-145~855"
Swing head
Swinging head rotation angle		±110
Swing head power	kw	6.28
Maximum rotational speed of swinging head	rpm	60
Positioning accuracy of swing head (VD13441)	"	8
Repeatability positioning accuracy of swing head (VD13441)	"	4
Spindle
Spindle specification		HSK A100
Spindle drive		Motorized spindle
Spindle power	kw	54(200Nm)
Spindle speed	rpm	10000
ATC Auto Tool Magazine
Tool taper		HSK-A100
Tools Capacity	pcs	24
Maximum tool diameter	mm	100
Maximum tool length	mm	300
Maximum tool weight	kg	15
VDI3441(JISB6338)
Positioning	mm	P0.015
Repeatability	mm	Ps0.012
Basic parameters
X/Y/Z axis servo motor	kw	7.0
X/Y/Z axis rapid speed	m/min	20
X/Y/Z-axis rail specification		55roller
Specification of X/Y/Z-axis ball screw		5010
Machine weight	kg	15500
Dimension(L*W*)	mm	5693*5305
Machine height	mm	3535
The company reserves the ight to change the above specfications for products or technologies

Standard proximity and function
1.FANUC 0i-MF Plus(1)control system	10. Work light
2.HSK-A100-10000RPM electric spindle	11.Warm light
3.Oil coolant system	12.Manual loosening device
4. Spindle blushing	13.Heat exchanger
5.Telescopic cover of triaxial rail	14.Water gun
6.Handwheel	15.Air gun
7.Automatic lubrication system	16.Foundation screw and horizontal cushion block
8.Oil cooler	17. HSK A100 type ATC of 24 tools
9.Transformer	18.Spiral type chip conveyor
	19.Chain type chip conveyor

OUT LOOK SIZE
Detailed Photos

Company Profile

Packaging & Shipping
Certifications

FAQ
Q1: How is the warranty?
A1: Warranty time is 12months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 quality management system. ISO14001 Environmental Management System and OHSAS18001 International Occupational Health and Safety Management System. Most products have passed European and American safety standards certification, including CE, GS, EMS&UL. 90% of the products are exported to more than 60 countries and regions worldwide and have always won a high reputation. Therefore, you can rest assured of our high-quality products and the best service.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
