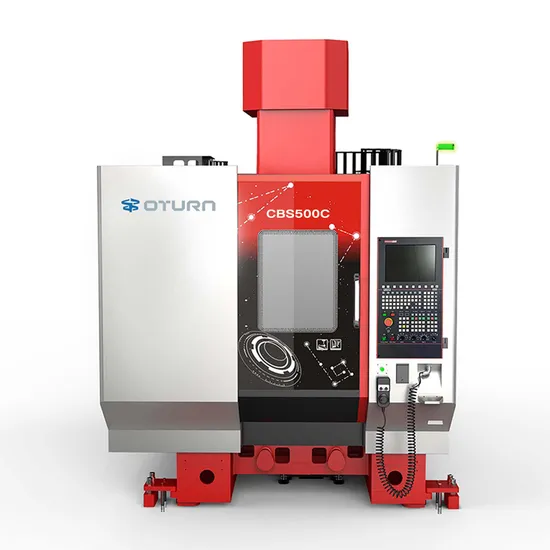

Efficient Milling and Turning 5 Axis CNC Machining Center CBS500c

Product Description

Product Description
High-speed precision five-axis bridge-type five-axis machining center CBS500C developed has the characteristics of high rigidity, high precision and high efficiency machining. CBS series machine tools adopt bridge structure layout, XYZ axis movement is not affected by AC axis, and can maintain high-precision machining for a long time; X/Y/Z/A/C axes are fully closed-loop controlled to ensure high-precision machining; the whole machine adopts finite element analysis The individual components are designed to provide the best overall stable performance.
The three-axis rapid displacement is 48 M/min, the T-T tool change time is only 5.5S, the tool magazine is fully loaded for 24 hours, and there is no alarm for tool change sex. It is suitable for two or three-dimensional concave-convex models with complex shapes that require 5-axis linkage for one-time processing. It is more suitable for small and medium-sized batches of multi-variety processing and production, and can also enter automatic lines for mass production.
Adopting the latest C80 plus system, 15-inch large LCD screen, tool path dynamic graphic display, intelligent alarm display, self-diagnosis and other functions make the use and maintenance of the machine tool more convenient and faster; the high-speed bus communication method greatly improves the data of the CNC system Processing power and control performance, the program storage capacity is increased to 4G, and the pre-reading capability is increased to 3000 lines/second, making it easy to read data quickly and accurately. Efficient transfer and online processing of large-volume programs.
Product Parameters

Item		CBS500C
Travel	X/Y/Z axis travel	500*600*450
	Spindle nose to table center	130-580
Spindle	Spindle taper	A63
	Max.spindle speed	20000
	Spindle power(continuous /S3 25%)	30/34
	spindle torque (continuous /S3 25%)	47,7/57.3
Feed rate	Rapid speed of (X/Y/Z)m/min	48/48/48
	mm/min Cutting feed	1-24000
Rotary table	Rotary table diameter	500*450MM
	Allowable load weight	240kg
	A axis tilting angle	±110
	C-axis rotation	360°
	A-axis rated/maximum speed	60/80
	A-axis rated/maximum cutting torque	1500/4500
	C-axis rated/maximum speed	600/1000
	C-axis rated/maximum cutting torque	160/240
	A positioning precision / repeat positioning precision	10/6
	C positioning precision / repeat positioning precision	8/4
ATC	Number of tool	25
	Max. tool diameter / length	80/300
	Max. tool weight	8
	Tool change time (tool to tool)	4
Three axis	X-axis guide (line rail width / number of sliders)	35/2
	Y-axis guide (line rail width / number of sliders)	45/2
	Z-axis guide (line rail width / number of sliders)	35/2
	X-axis linear motor thrust (continuous/max)	2167/5500
	Y-axis linear motor thrust (continuous/max)	2167/5500
	Z-axis linear motor thrust (continuous/max)	2R40*20 (screw)
Accuracy	Positioning precision	0.005/300
	Repeating positioning precision	0.003/300
Power	Power supply capacity	45
	Air pressure	≥0.6Mpa ≥400L/min
Machine size	Machine size (LxWxH)	2230*3403*3070
	weight	11T

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.
